3/4" Shuttle valve
Shuttle valve for hydraulic circuits where one outlet must be supplied from whichever of two inlet lines has the higher pressure. The internal shuttle blocks the lower-pressure side and connects the higher-pressure side through, allowing two alternative pressure sources or signals to feed a single line.
Designed with BSP ports, this valve uses G 3/4 connections and NBR sealing. Zinc-plated surface treatment and a compact body make it suitable for inline mounting where a simple pressure selection function is required.
Typical Applications
- Selecting between two hydraulic pressure sources to supply one common line
- Hydraulic circuits requiring automatic selection of the higher pressure signal
Partnumber:
VU2P-34
Package size:
1 pcs
Min. order quantity is:
1 pcs
Brand Name
OM Oleodinamica Marchesini

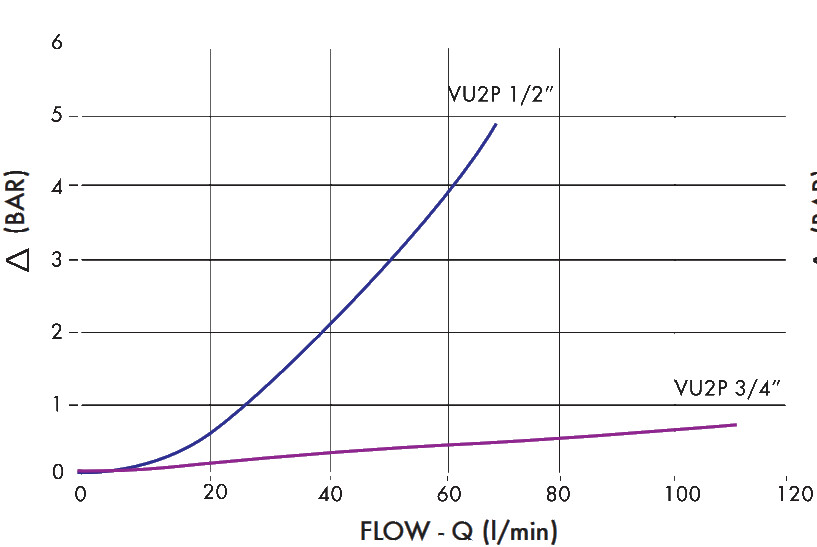

Flow max.
110 lpm
Flow rate nominal LMin
110 lpm
H
58 mm
L
80 mm
L1
127 mm
L2
12 mm
L3
44 mm
Material
Steel
Oil Temperature Recommended
50 °C
Oil viscocity recommended
30 cSt
P
3/4 BSP
Pressure max.
350 bar
S
35 mm
Sealing material
NBR
Surface treatment
Zinc-plated
Temperature max.
+100 °C
Temperature min.
-30 °C
Thread
G 3/4 BSP
U
3/4 BSP
ØD
8,5 mm
Package size
1 pcs
Barcode
197965
Gross weight
Kg
Net weight
Kg
Country of origin
ITA
Intrastat code
84812010
Shuttle valve for hydraulic circuits where one outlet must be supplied from whichever of two inlet lines has the higher pressure. The internal shuttle blocks the lower-pressure side and connects the higher-pressure side through, allowing two alternative pressure sources or signals to feed a single line.
Designed with BSP ports, this valve uses G 3/4 connections and NBR sealing. Zinc-plated surface treatment and a compact body make it suitable for inline mounting where a simple pressure selection function is required.
Typical Applications
- Selecting between two hydraulic pressure sources to supply one common line
- Hydraulic circuits requiring automatic selection of the higher pressure signal
