Flange 90° 2.1/2" SAE3000 x 2.1/2" BSP - complete
Flange 90° 2.1/2" SAE3000 x 2.1/2" BSP - complete
Partnumber:
8391-40-40
Package size:
2 st
Min. order quantity is:
1 st

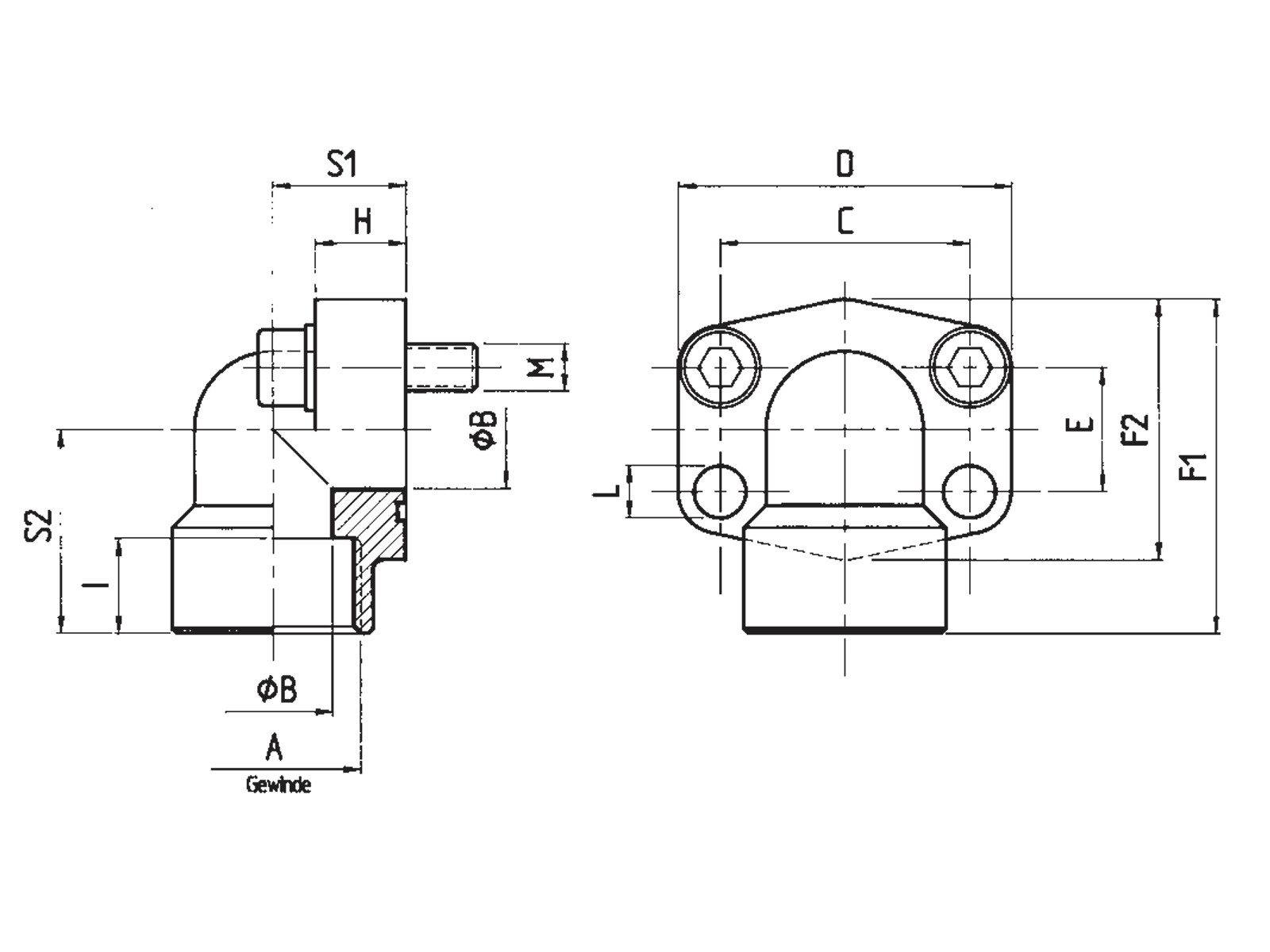

A
G 2.1/2 BSP
Angle
90 °
B
60/57 mm
Bolt dimension
M12x45 mm
Brand Name
Havit
C
88,9 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
D
115 mm
Diameter flange
84.1 mm
E
50,8 mm
F1
127 mm
F2
96 mm
Flange
2.1/2 "
Flange SAE/DIN
3000 PSI
H
25 mm
I
30 mm
L
13,5 mm
M
M12x45
Material
Steel
Number of bolts
4
O-ring
69,44X3,53 mm
Pressure max.
172 bar
S1
50 mm
S2
77 mm
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
2 st
Barcode
198854
Gross weight
2,00 Kg
Net weight
2,00 Kg
Country of origin
DEU
Intrastat code
73079100
