Threaded flange 3/4" SAE6000 x 3/4" BSP - complete
Threaded flange 3/4" SAE6000 x 3/4" BSP - complete
Partnumber:
8610-12-12-KM
Package size:
1 st
Min. order quantity is:
1 st

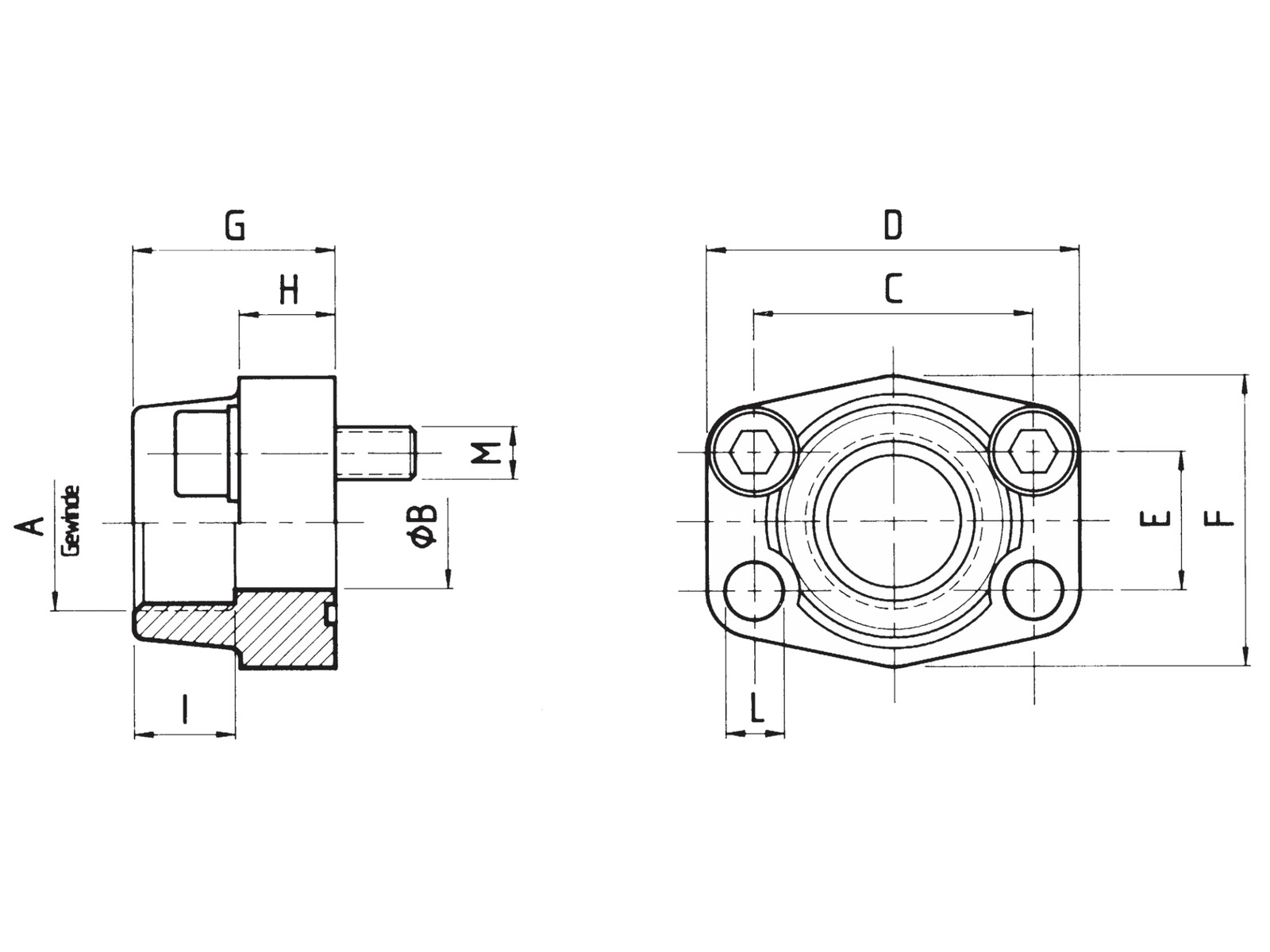

A
G 3/4 BSP
Angle
0 °
B
19 mm
Bolt dimension
M10x35 mm
Brand Name
Havit
C
50,8 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
D
71 mm
Diameter flange
41.3 mm
E
23,8 mm
F
55 mm
Flange
3/4 "
Flange SAE/DIN
6000 PSI
G
35 mm
H
21 mm
I
22 mm
L
11 mm
M
M10x35
Material
Steel
Number of bolts
4
O-ring
24,99X3,53 mm
Pressure max.
420 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
1 st
Barcode
110419
Gross weight
0,51 Kg
Net weight
0,51 Kg
Country of origin
DEU
Intrastat code
73079100
Threaded flange 3/4" SAE6000 x 3/4" BSP - complete
