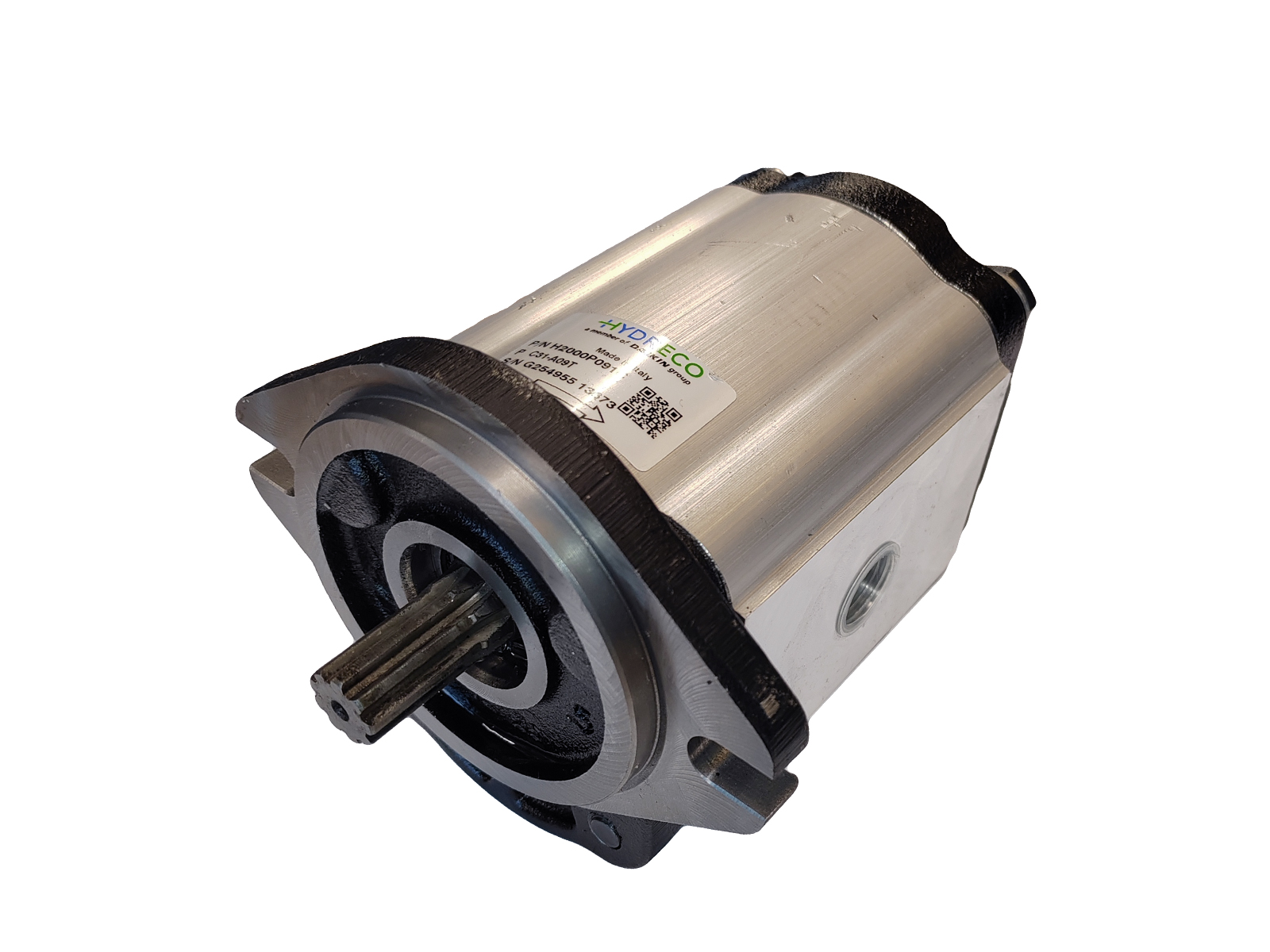

Gear pumps 2 series Hydreco SAE-Flange 9T G-thread

SELECT VARIANT

Partnumber	Description	Displacement	Pressure continous max.	Rotational speed max.	Rotation direction
HYPA2A08A09TB2/2S1NS	Gear Pump Gr2 8.2 cm³/r	8.2 cm3	260 bar	4000 rpm	Left (CCW)
HYPA2C04A09TB2/2S1NS	Gear pump Gr2. 4.5cm³/r SAE A 9T SAE A 2P R1/2" - R1/2"	4.5 cm3	260 bar	4000 rpm	Right (CW)
HYPA2C06A09TB2/2S1NS	Gear pump Gr2. 6.5 cm³/r SAE A 9T SAE A 2P R1/2”-R1/2”	6.5 cm3	260 bar	4000 rpm	Right (CW)
HYPA2C08A09TB2/2S1NS	Gear pump Gr2. 8.2 cm³/r SAE A 9T SAE A 2P Ports R1/2”-R1/2”	8.2 cm3	260 bar	4000 rpm	Right (CW)
HYPA2C11A09TB2/2S1NS	Gear pump Gr2. 11.3 cm³/r SAE A 9T SAE A 2P R1/2”-R1/2”	11.3 cm3	260 bar	4000 rpm	Right (CW)
HYPA2C14A09TB3/2S1NS	Gear pump Gr2. 14.6 cm³/r SAE A 9T SAE A 2P R3/4”-R1/2”	14.6 cm3	260 bar	3500 rpm	Right (CW)
HYPA2C16A09TB3/2S1NS	Gear pump Gr2. 16.9 cm³/r SAE A 9T SAE A 2P R3/4”-R1/2”	16.9 cm3	260 bar	3200 rpm	Right (CW)
HYPA2C20A09TB3/2S1NS	Gear pump Gr2. 20.1 cm³/r SAE A 9T SAE A 2P R3/4”-R1/2”	20.1 cm3	210 bar	3000 rpm	Right (CW)
HYPA2C22A09TB3/2S1NS	Gear pump 22.0 cm³/r	22 cm3	200 bar	2700 rpm	Right (CW)
HYPA2C25A09TB3/2S1NS	Gear pump Gr3. 25.2 cm³/r SAE 9T SAE A R3/4”-R1/2”	25.2 cm3	180 bar	2500 rpm	Right (CW)
HYPA2C28A09TB3/2S1NS	Gear pump Gr2. 28.2 cm³/r SAE A 9T SAE A 2P R3/4”-R1/2”	28 cm3	160 bar	2200 rpm	Right (CW)
HYPA2C31A09TB3/2S1NS	Gear pump Gr2. 31.7 cm³/r SAE A 9T SAE A 2P R3/4”-R1/2”	31.7 cm3	150 bar	2000 rpm	Right (CW)

Brand Name

Hydreco

Contamination level max.

19/17/14 - ISO 4406

Holes circle

11.5

Material

Aluminium

Mounting flange

SAE-A2

Number of mounting holes

Number of outer grooves

Oil viscocity recommended

10 - 750

Outlet

G 1/2

Pump group

Recess

82,55

Shaft diameter

15,5

Shaft spline

9T 16/32 SAE-A

Shaft type

Spline

Temperature max.

+80

Temperature min.

-25

Temperature working fluid max.

+80
