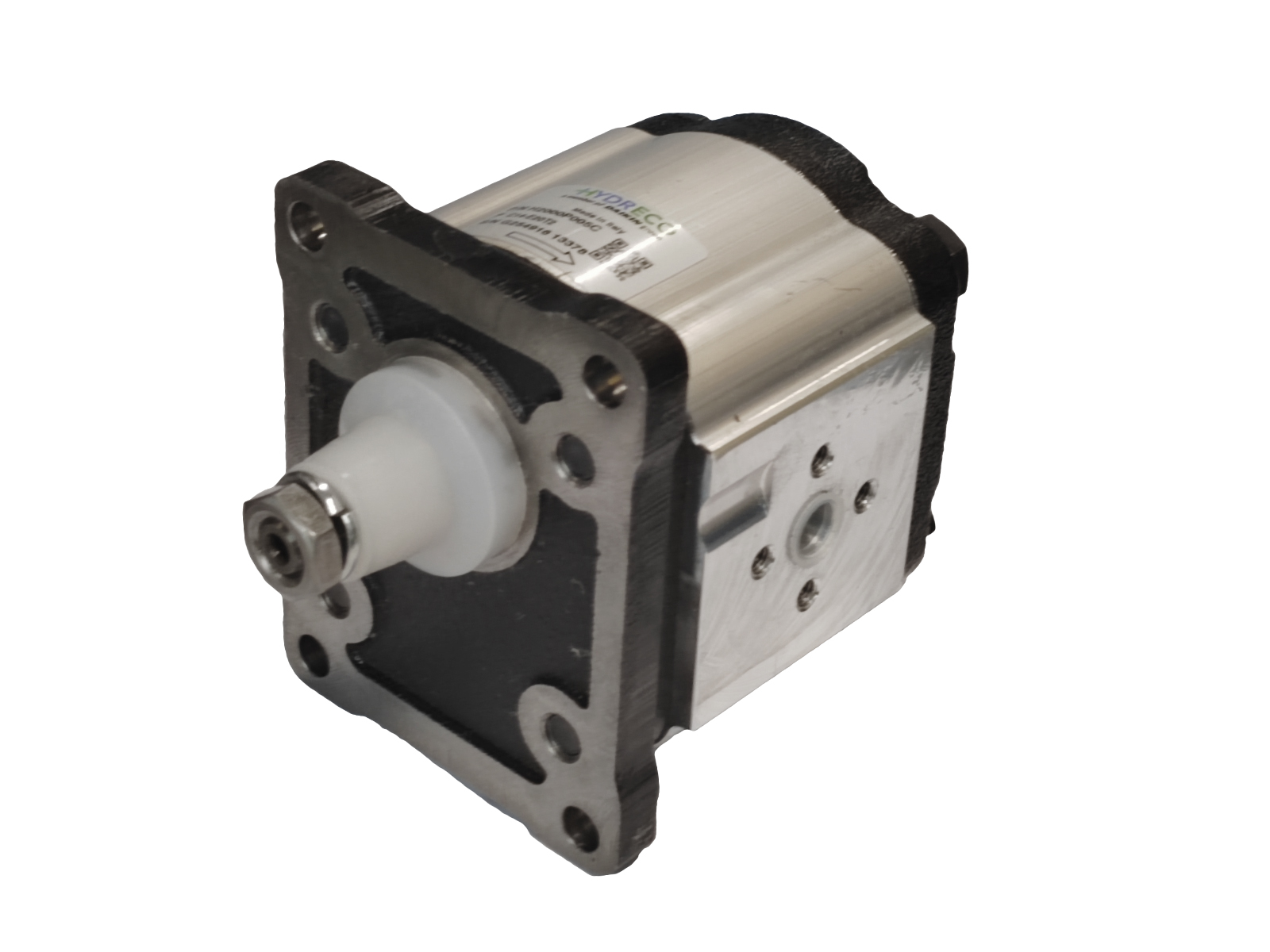

Gear pumps 2 series Hydreco EU flange 1:8 FE flange

SELECT VARIANT

Partnumber	Description	Displacement	Pressure continous max.	Rotational speed max.	Rotation direction
HYPA2A08E20T2FE2/2S1NS	Gear pump Gr2. 8.2 cm³/r 1:8 tapered 71.5x96.2 mm CCW	8.2 cm3	260 bar	4000 rpm	Left (CCW)
HYPA2C04E20T2FE2/2S1NS	Hammaspyöräpumppu 4,5 cm³/r	4.5 cm3	260 bar	4000 rpm	Right (CW)
HYPA2C06E20T2FE2/2S1NS	Hammaspyöräpumppu 6,5 cm³/r	6.5 cm3	260 bar	4000 rpm	Right (CW)
HYPA2C11E20T2FE3/2S1NS	Hammaspyöräpumppu 11,3 cm³/r	11.3 cm3	260 bar	4000 rpm	Right (CW)
HYPA2C14E20T2FE3/2S1NS	Hammaspyöräpumppu 14,6 cm³/r	14.6 cm3	260 bar	4000 rpm	Right (CW)
HYPA2C16E20T2FE3/2S1NS	Hammaspyöräpumppu 16,9 cm³/r	16.9 cm3	260 bar	4000 rpm	Right (CW)
HYPA2C20E20T2FE3/2S1NS	Hammaspyöräpumppu 20,1 cm³/r	20.1 cm3	210 bar	3000 rpm	Right (CW)
HYPA2C22E20T2FE3/2S1NS	Hammaspyöräpumppu 22,0 cm³/r	22 cm3	200 bar	2700 rpm	Right (CW)
HYPA2C25E20T2FE3/2S1NS	Hammaspyöräpumppu 25,2 cm³/r	25.2 cm3	180 bar	2500 rpm	Right (CW)
HYPA2C28E20T2FE3/2S1NS	Hammaspyöräpumppu 28,2 cm³/r	28.2 cm3	160 bar	2200 rpm	Right (CW)
HYPA2C31E20T2FE3/2S1NS	Hammaspyöräpumppu 31,7 cm³/r	31.7 cm3	150 bar	2000 rpm	Right (CW)

Brand Name

Hydreco

Contamination level max.

19/17/14 - ISO 4406

Holes circle

Material

Aluminium

Mounting flange

EU37 - 96x72

Number of mounting holes

Oil viscocity recommended

10 - 750

Port outlet

EU30

Pump group

Recess

36,5

Shaft cone

1:8

Shaft keyway

3,15

Shaft type

Tapered

Temperature min.

-25

Temperature working fluid max.

+80
