GS-Hydro 3000 Psi Flanges

GS-Hydro 3000 Psi Flanges

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flange Flange SAE/DIN Diameter pipe Material

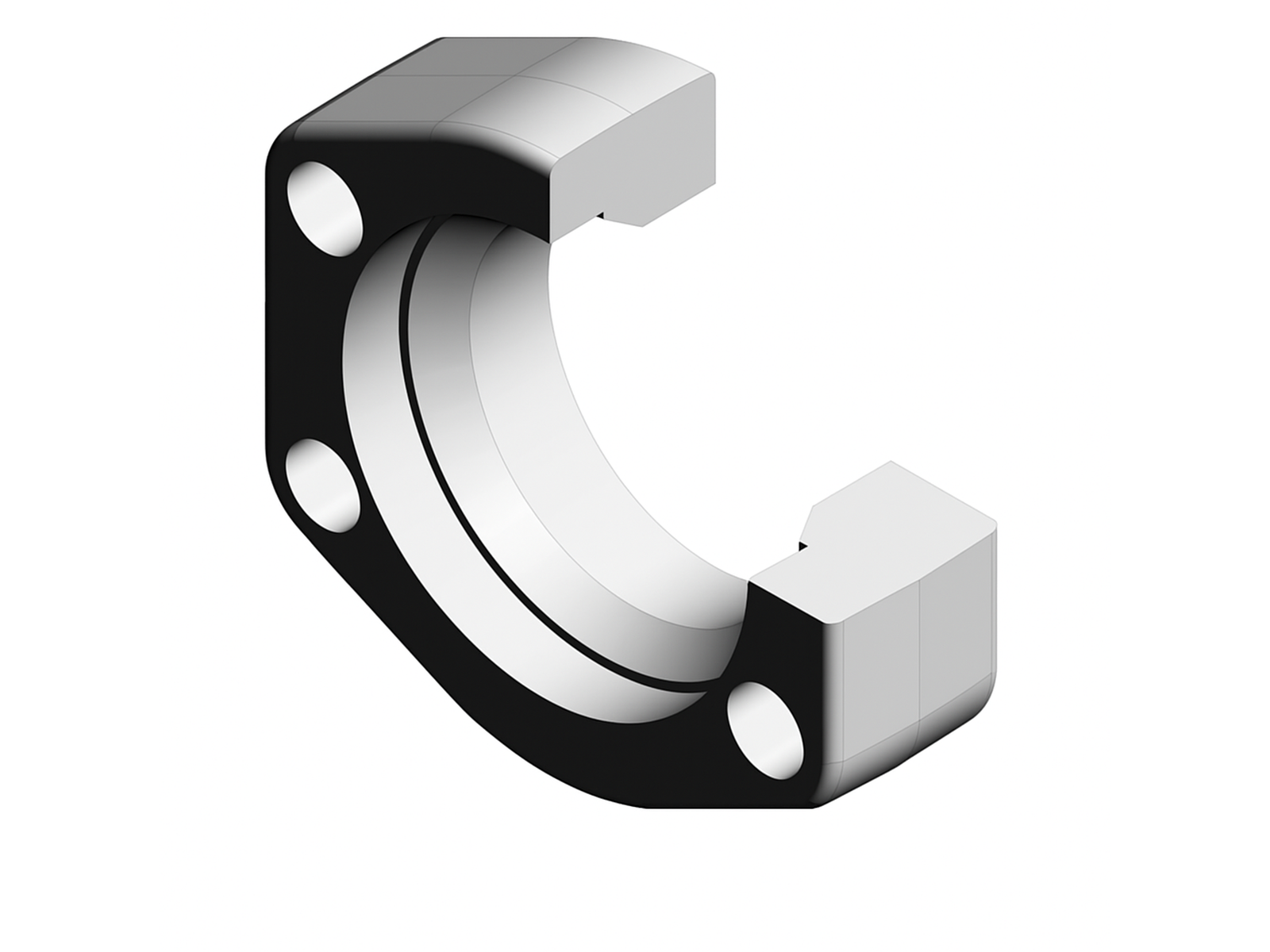

GS308 308 Retain ring flange 1/2" 3000 psi CS/ZN 1/2 " 3000 PSI 26 mm Steel

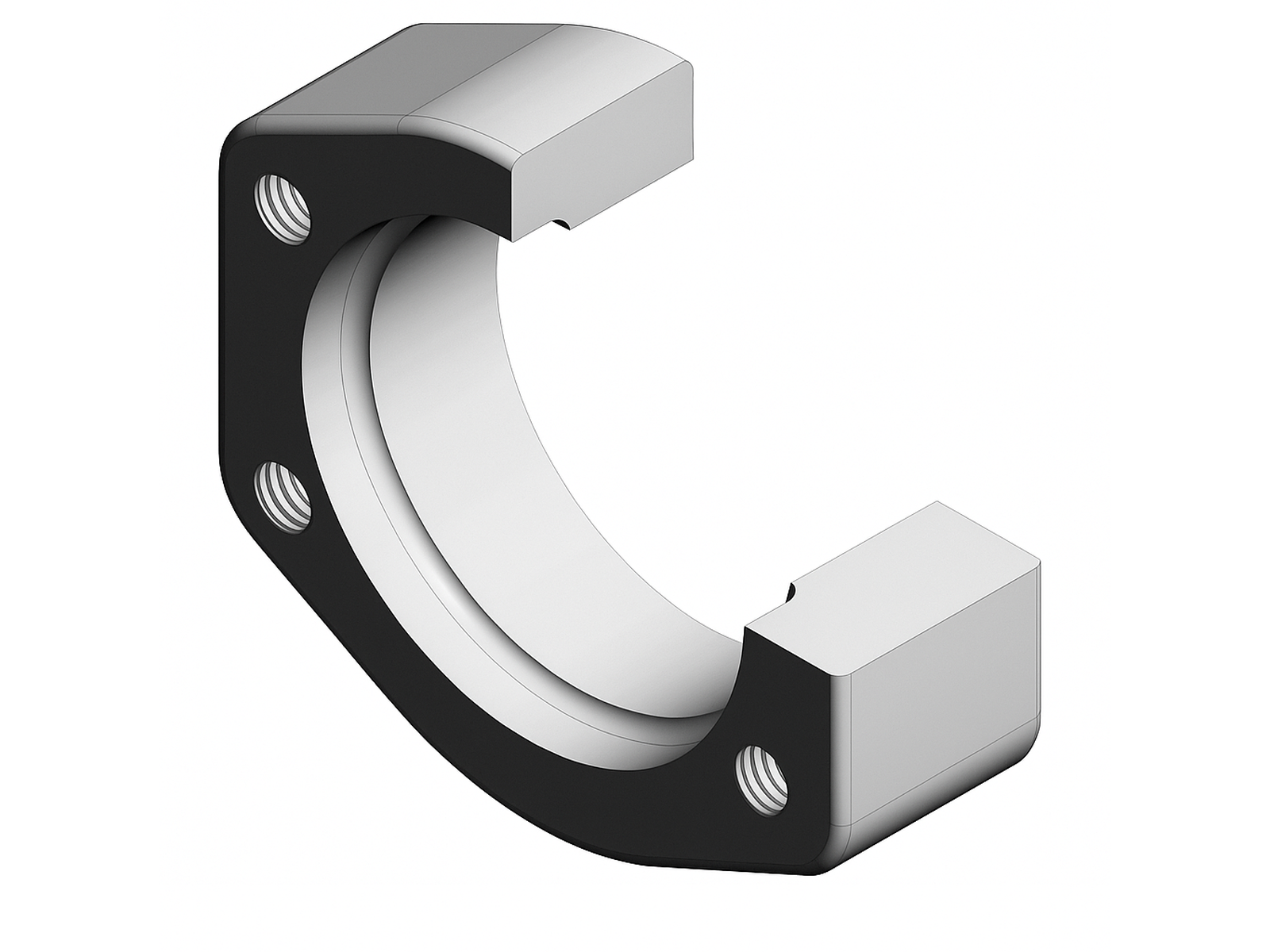

GS308/M8 308/M8 Counter Retain ring flange 1/2" 3000 psi CS/ZN 1/2 " 3000 PSI 26 mm Steel

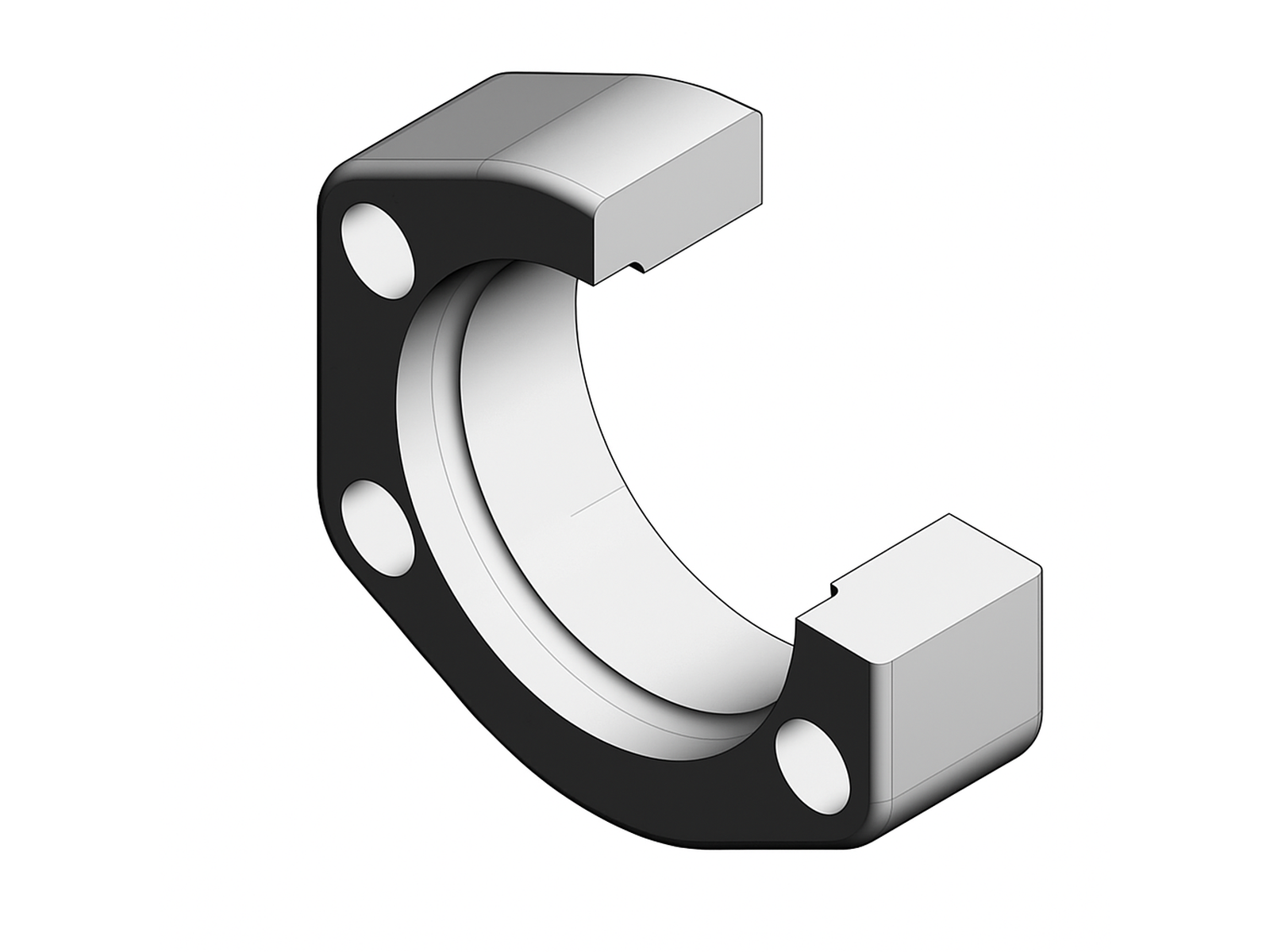

GS308F 308F Flare flange 1/2" 3000 psi CS/ZN 1/2 " 3000 PSI 25 mm Steel
GS308F/16 308F/16 Flare flange 1/2" 3000 psi CS/ZN 1/2 " 3000 PSI 16 mm Steel
GS308F/20 308F/20 Flare flange 1/2" 3000 psi CS/ZN 1/2 " 3000 PSI 20 mm Steel

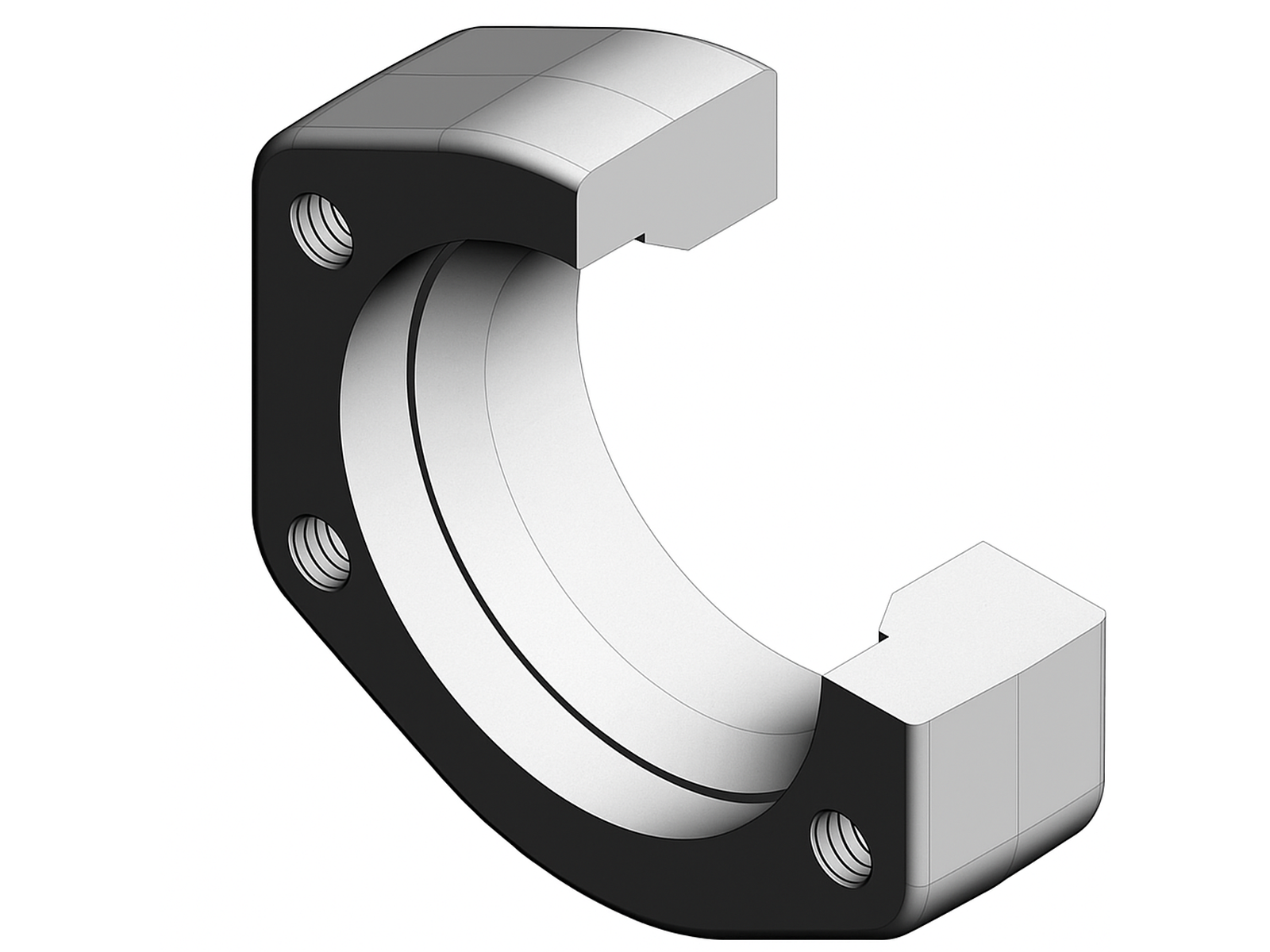

GS308F/M8 308F/M8 Counter Flare flange 1/2" 3000 psi CS/ZN 1/2 " 3000 PSI 25 mm Steel
GS308FHDG 308FHDG Flare flange 1/2" 3000 psi CS/HDG 1/2 " 3000 PSI 25 mm Steel
GS308FSS 308FSS Flare flange 1/2" 3000 psi AISI316(L) 1/2 " 3000 PSI 25 mm Acid-resistant steel
GS308SS 308SS Retain ring flange 1/2" 3000 psi AISI316(L) 1/2 " 3000 PSI 26 mm Acid-resistant steel
GS312 312, Retain ring flange, 3000 psi 3/4 " 3000 PSI 36 mm Steel
GS312/M10 312/M10 Counter Retain ring flange 3/4" 3000 psi CS/ZN 3/4 " 3000 PSI 36 mm Steel
GS312F 312F Flare flange 3000 psi 3/4'' CS/ZN 3/4 " 3000 PSI 30 mm Steel
GS312F/25 312F/25 Flare flange 3/4" 3000 psi CS/ZN 3/4 " 3000 PSI 25 mm Steel
GS312F/M10 312F/M10 Counter Flare flange 3/4" 3000 psi CS/ZN 3/4 " 3000 PSI 30 mm Steel
GS312FHDG 312FHDG Flare flange 3/4" 3000 psi CS/HDG 3/4 " 3000 PSI 30 mm Steel
GS312FSS 312FSS Flare flange 3/4" 3000 psi AISI316(L) 3/4 " 3000 PSI 30 mm Acid-resistant steel
GS312HDG 312HDG Retain ring flange 3/4" 3000 psi CS/HDG 3/4 " 3000 PSI 36 mm Steel
GS312SS 312SS Retain ring flange 3/4" 3000 psi AISI316(L) 3/4 " 3000 PSI 36 mm Acid-resistant steel
GS316 316 Retain ring flange 3000 psi 1 " 3000 PSI 39 mm Steel
GS316/M10 316/M10 Counter Retain ring flange 1" 3000 psi CS/ZN 1 " 3000 PSI 39 mm Steel
GS316F 316F Flare flange 1" 3000 psi CS/ZN 1 " 3000 PSI 38 mm Steel
GS316F/33.4 316F/33.4 Flare flange 1" 3000 psi CS/ZN 1 " 3000 PSI 33,4 mm Steel
GS316F/33.4SS 316F/33.4SS Flare flange 1" 3000 psi AISI316(L) 1 " 3000 PSI 33,4 mm Acid-resistant steel
GS316F/M10 316F/M10 Counter Flare flange 1" 3000 psi CS/ZN 1 " 3000 PSI 38 mm Steel
GS316FHDG 316FHDG Flare flange 1" 3000 psi CS/HDG 1 " 3000 PSI 38 mm Steel
GS316FSS 316FSS Flare flange 1" 3000 psi AISI316(L) 1 " 3000 PSI 38 mm Acid-resistant steel
GS316HDG 316HDG Retain ring flange 1" 3000 psi CS/HDG 1 " 3000 PSI 39 mm Steel
GS316SS 316SS Retain ring flange 1" 3000 psi AISI316(L) 1 " 3000 PSI 39 mm Acid-resistant steel
GS320 320, Retain ring flange, 3000 psi 1.1/4 " 3000 PSI 46 mm Steel
GS320/M10 320/M10 Counter Retain ring flange 1 1/4" 3000 psi CS/ZN 1.1/4 " 3000 PSI 46 mm Steel
GS320F 320F Flare flange 3000 PSi 1.1/4 " 3000 PSI 42 mm Steel
GS320F/42.2 320F/42.2 Flare flange 1 1/4" 3000 psi CS/ZN 1.1/4 " 3000 PSI 42,2 mm Steel
GS320F/M10 320F/M10 Counter Flare flange 1 1/4" 3000 psi CS/ZN 1.1/4 " 3000 PSI 42 mm Steel
GS320FHDG 320FHDG Flare flange 1 1/4" 3000 psi CS/HDG 1.1/4 " 3000 PSI 42 mm Steel
GS320FSS 320FSS Flare flange 1 1/4" 3000 psi AISI316(L) 1.1/4 " 3000 PSI 42 mm Acid-resistant steel
GS320HDG 320HDG Retain ring flange 1 1/4" 3000 psi CS/HDG 1.1/4 " 3000 PSI 46 mm Steel
GS320SS 320SS Retain ring flange 1 1/4" 3000 psi AISI316(L) 1.1/4 " 3000 PSI 46 mm Acid-resistant steel
GS324 324 Retain ring flange 3000 Psi 1.1/2 " 3000 PSI 56 mm Steel
GS324/M12 324/M12 Counter Retain ring flange 1 1/2" 3000 psi CS/ZN 1.1/2 " 3000 PSI 56 mm Steel
GS324F 324F Flare flange 3000 psi 1.1/2 " 3000 PSI 50 mm Steel
GS324F/48 324F/48 Flare flange 1 1/2" 3000 psi CS/ZN 1.1/2 " 3000 PSI 48 mm Steel
GS324F/48.3 324F/48.3 Flare flange 1 1/2" 3000 psi CS/ZN 1.1/2 " 3000 PSI 48,3 mm Steel
GS324F/48.3HDG 324F/48.3HDG Flare flange 1 1/2" 3000 psi CS/HDG 1.1/2 " 3000 PSI 48,3 mm Steel
GS324F/50.8 324F/50.8 Flare flange 1 1/2" 3000 psi CS/ZN 1.1/2 " 3000 PSI 50,8 mm Steel
GS324F/M12 324F/M12 Counter flare flange 1.1/2 " 3000 PSI 50 mm Steel
GS324FHDG 324FHDG Flare flange 1 1/2" 3000 psi CS/HDG 1.1/2 " 3000 PSI 50 mm Steel
GS324FSS 324FSS Flare flange 3000 psi 1.1/2 " 3000 PSI 50 mm Acid-resistant steel
GS324HDG 324HDG Retain ring flange 1 1/2" 3000 psi CS/HDG 1.1/2 " 3000 PSI 56 mm Steel
GS324SS 324SS Retain ring flange 1 1/2" 3000 psi AISI316(L) 1.1/2 " 3000 PSI 56 mm Acid-resistant steel
GS332 332, Retain ring flange, 3000 psi 2 " 3000 PSI 66 mm Steel
GS332/60.3SS 332/60.3SS Retain ring flange 2" 3000 psi AISI316(L) 2 " 3000 PSI 60,3 mm Acid-resistant steel
GS332/M12 332/M12 Counter retain ring flange 3000 Psi 2 " 3000 PSI 66 mm Steel
GS332/M12SS 332/M12SS Counter retain ring flange 3000 Psi 2" AISI316 2 " 3000 PSI 66 mm Acid-resistant steel
GS332F 332F Flare flange 3000 psi 2 " 3000 PSI 60 mm Steel
GS332F/60.3 332F/60.3 Flare flange 2" 3000 psi CS/ZN 2 " 3000 PSI 60,3 mm Steel
GS332F/60.3SS 332F/60.3SS Flare flange 2" 3000 psi AISI316(L) 2 " 3000 PSI 60,3 mm Acid-resistant steel
GS332F/M12 332F/M12 Counter Flare flange 2" 3000 psi CS/ZN 2 " 3000 PSI 60 mm Steel
GS332FHDG 332FHDG Flare flange 2" 3000 psi CS/HDG 2 " 3000 PSI 60 mm Steel
GS332FSS 332FSS Flare flange 2" 3000 psi AISI316(L) 2 " 3000 PSI 60 mm Acid-resistant steel
GS332HDG 332HDG Retain ring flange 2" 3000 psi CS/HDG 2 " 3000 PSI 66 mm Steel
GS332SS 332SS Retain ring flange 3000 psi 2'' AISI316(L) 2 " 3000 PSI 66 mm Acid-resistant steel
GS340 340 Retain ring flange 3000 Psi 2.1/2 " 3000 PSI 80 mm Steel
GS340F 340F Flare flange 3000 PSi 2 1/2" CS/ZN 2.1/2 " 3000 PSI 73 mm Steel
GS340F/75 340F/75 Flare flange pipe OD 75 mm 2 1/2" 3000 psi CS/ZN 2.1/2 " 3000 PSI 75 mm Steel
GS340F/75HDG 340F/75HDG Flare flange pipe OD 75 mm 2 1/2" 3000psi CS/HDG 2.1/2 " 3000 PSI 75 mm Steel
GS340FHDG 340FHDG Flare flange pipe OD 73 mm 2 1/2" 3000 psi CS/HDG 2.1/2 " 3000 PSI 73 mm Steel
GS340FSS 340FSS Flare flange pipe OD 73 mm 2 1/2" 3000psi AISI316(L) 2.1/2 " 3000 PSI 73 mm Acid-resistant steel
GS340HDG 340HDG Retain ring flange 2 1/2" 3000 psi CS/HDG 2.1/2 " 3000 PSI 80 mm Steel
GS340SS 340SS Retain ring flange 2 1/2" 3000 psi AISI316(L) 2.1/2 " 3000 PSI 80 mm Acid-resistant steel
GS348 348 Retain ring flange 3000 Psi 3 " 3000 PSI 97 mm Steel
GS348/M16 348/M16 Counter retain ring flange 3000 Psi 3 " 3000 PSI 97 mm Steel
GS348F 348F Flare flange 3" 3000 psi CS/ZN 3 " 3000 PSI 90 mm Steel
GS348F/88.9SS 348F/88.9SS Flare flange 3" 3000 psi AISI316(L) 3 " 3000 PSI 88,9 mm Acid-resistant steel
GS348FHDG 348FHDG Flare flange 3" 3000 psi CS/HDG 3 " 3000 PSI 90 mm Steel
GS348FSS 348FSS Flare flange 3" 3000 psi AISI316(L) 3 " 3000 PSI 90 mm Acid-resistant steel
GS348HDG 348HDG Retain ring flange 3" 3000 psi CS/HDG 3 " 3000 PSI 97 mm Steel
GS348SS 348SS Retain ring flange 3" 3000 psi AISI316(L) 3 " 3000 PSI 97 mm Acid-resistant steel
Brand Name
GS-Hydro
Flange SAE/DIN
3000 PSI
Number of bolt holes
4
Temperature max.
+60
Temperature min.
-20
