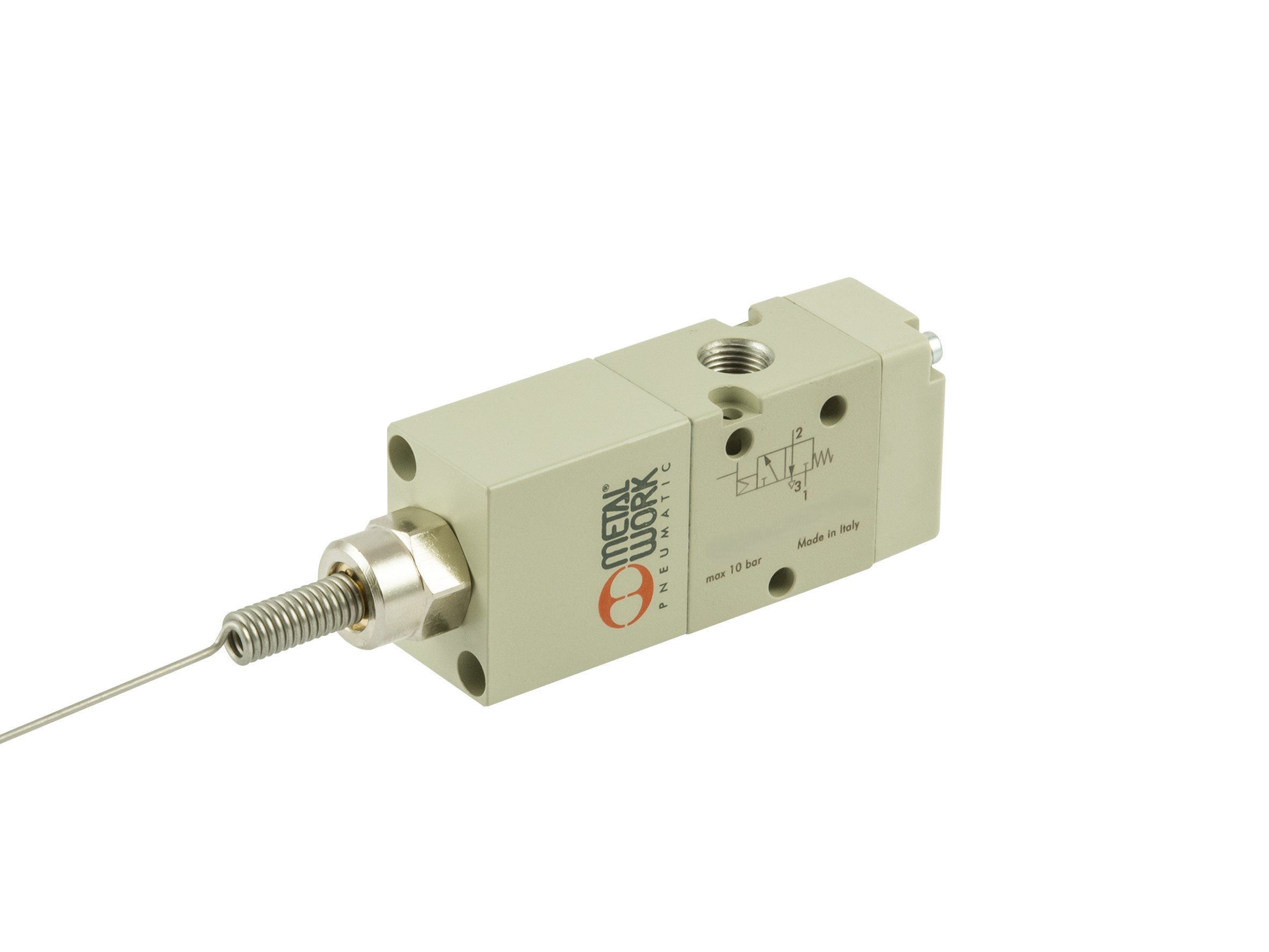

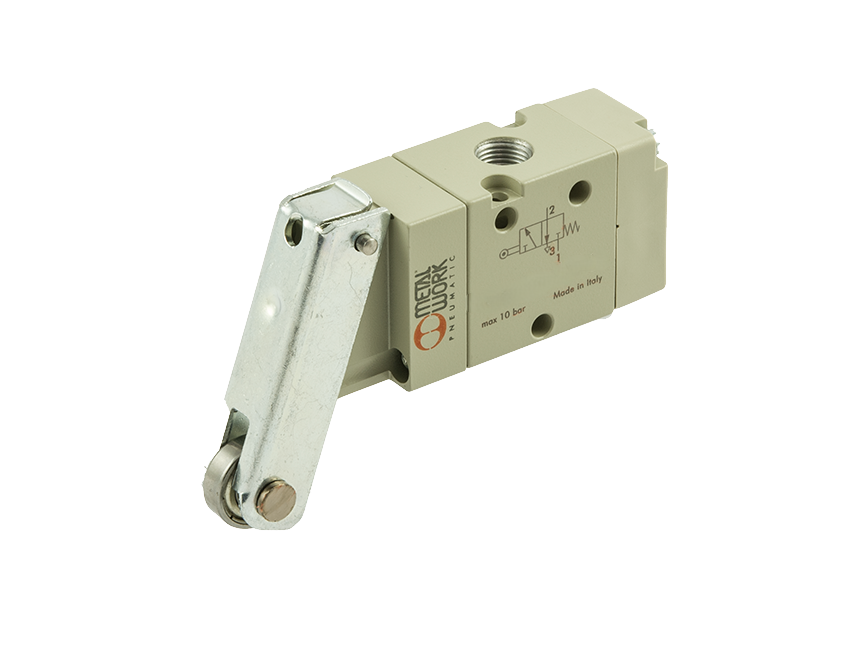

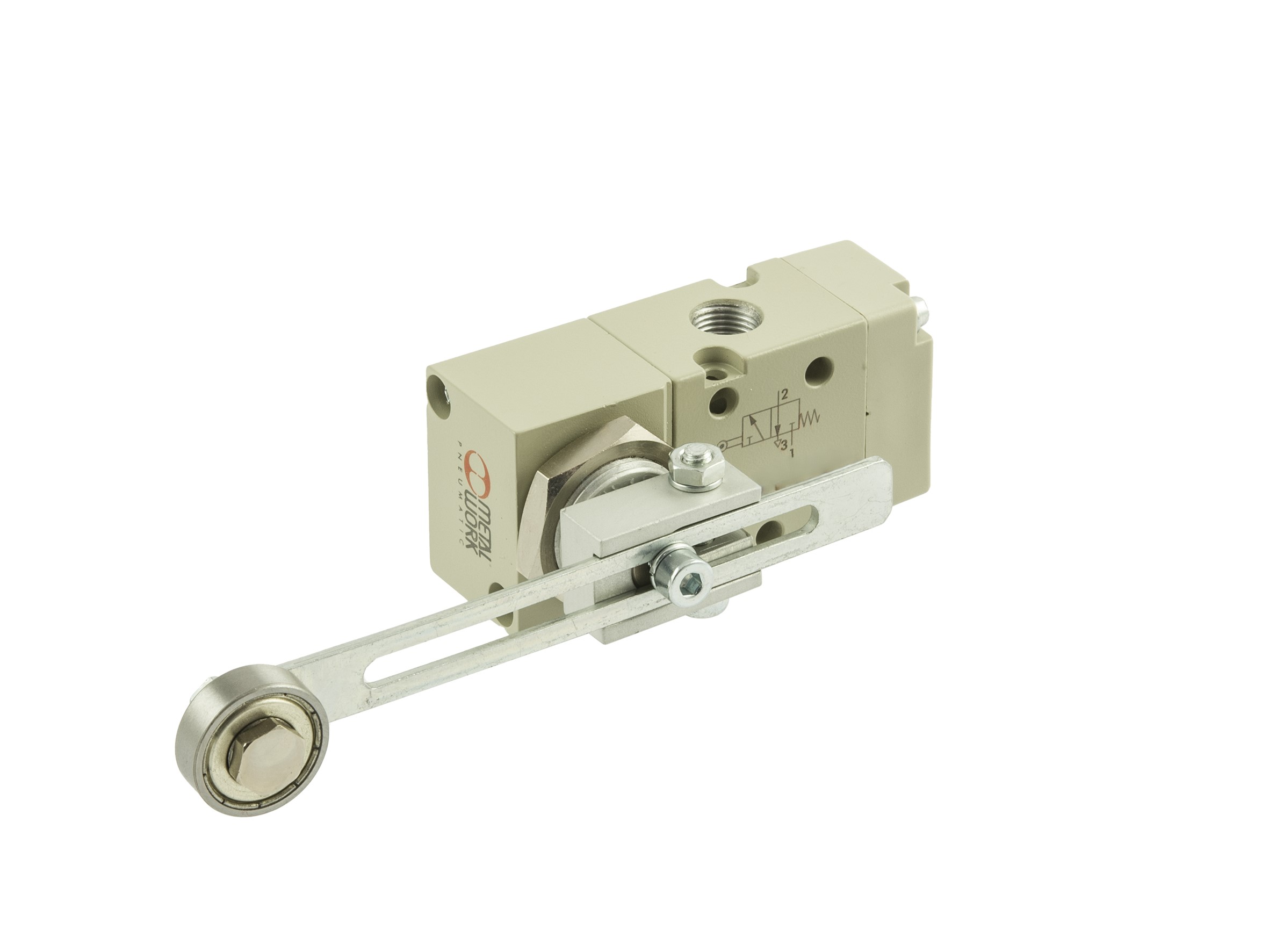

Mechanically controlled pneumatic valves MEV MW

Mechanically controlled pneumatic valves MEV MW

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread Number of ways/positions Pressure max. Pressure min.
MEV23ASSNC PI-venttiili 70 Mechanical MEV G 1/8 BSP 3/2 10 bar 2.5 bar
MEV23BRSNC PI-venttiili 70 Mechanical MEV G 1/8 BSP 3/2 10 bar -0.99 bar
MEV23LLSNC PI-venttiili 70 Mechanical MEV G 1/8 BSP 3/2 10 bar -0.99 bar

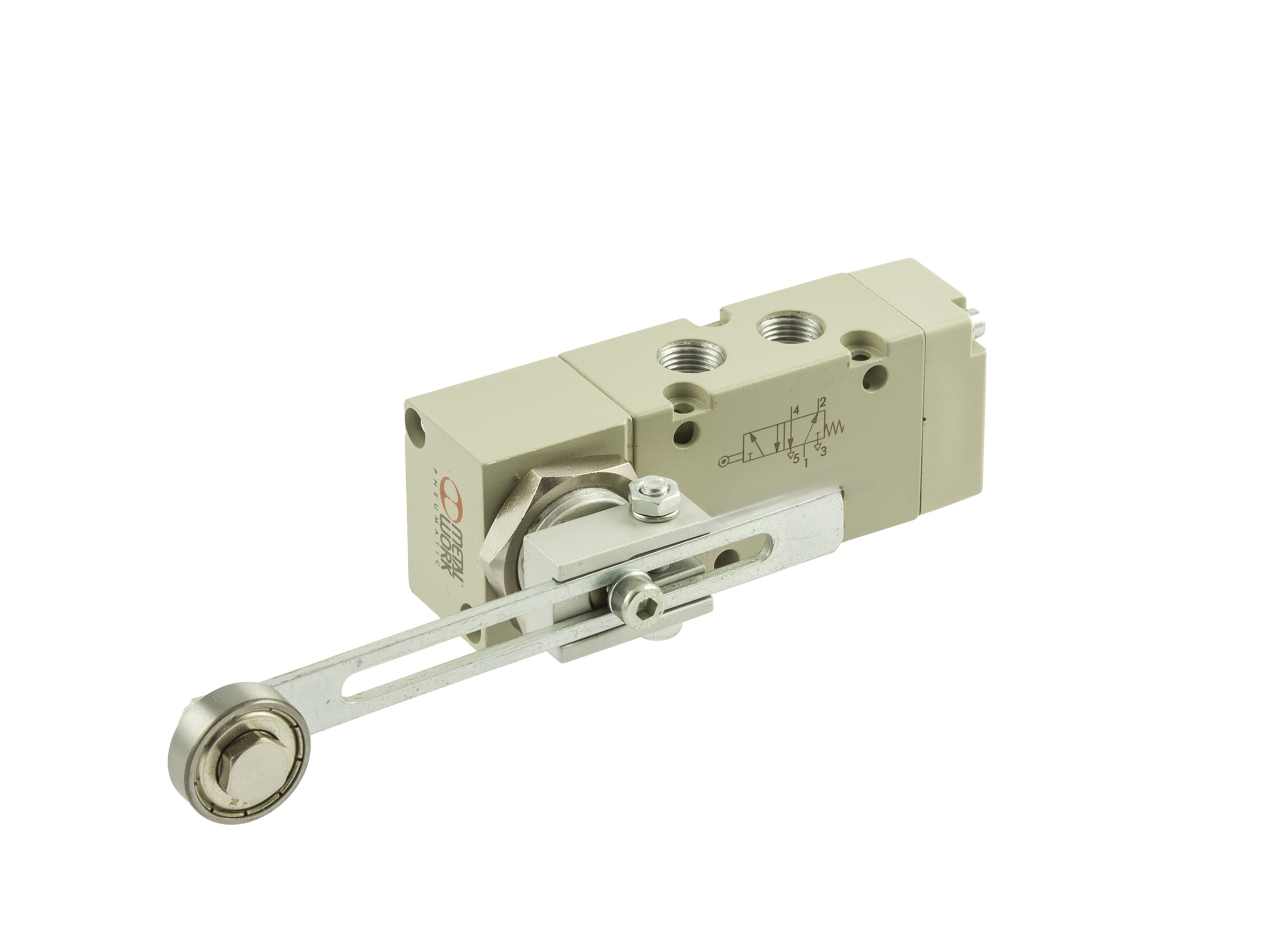

MEV25LLSOO PI-venttiili 70 Mechanical MEV G 1/8 BSP 5/2 10 bar -0.99 bar
Activation
Mechanical
Brand Name
Metal Work
Flow air nominal
550
Flow rate nominal LMin
550
Material
Aluminium
Pressure max.
10
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR
Temperature max.
+60
Temperature min.
-10
Thread
G 1/8
