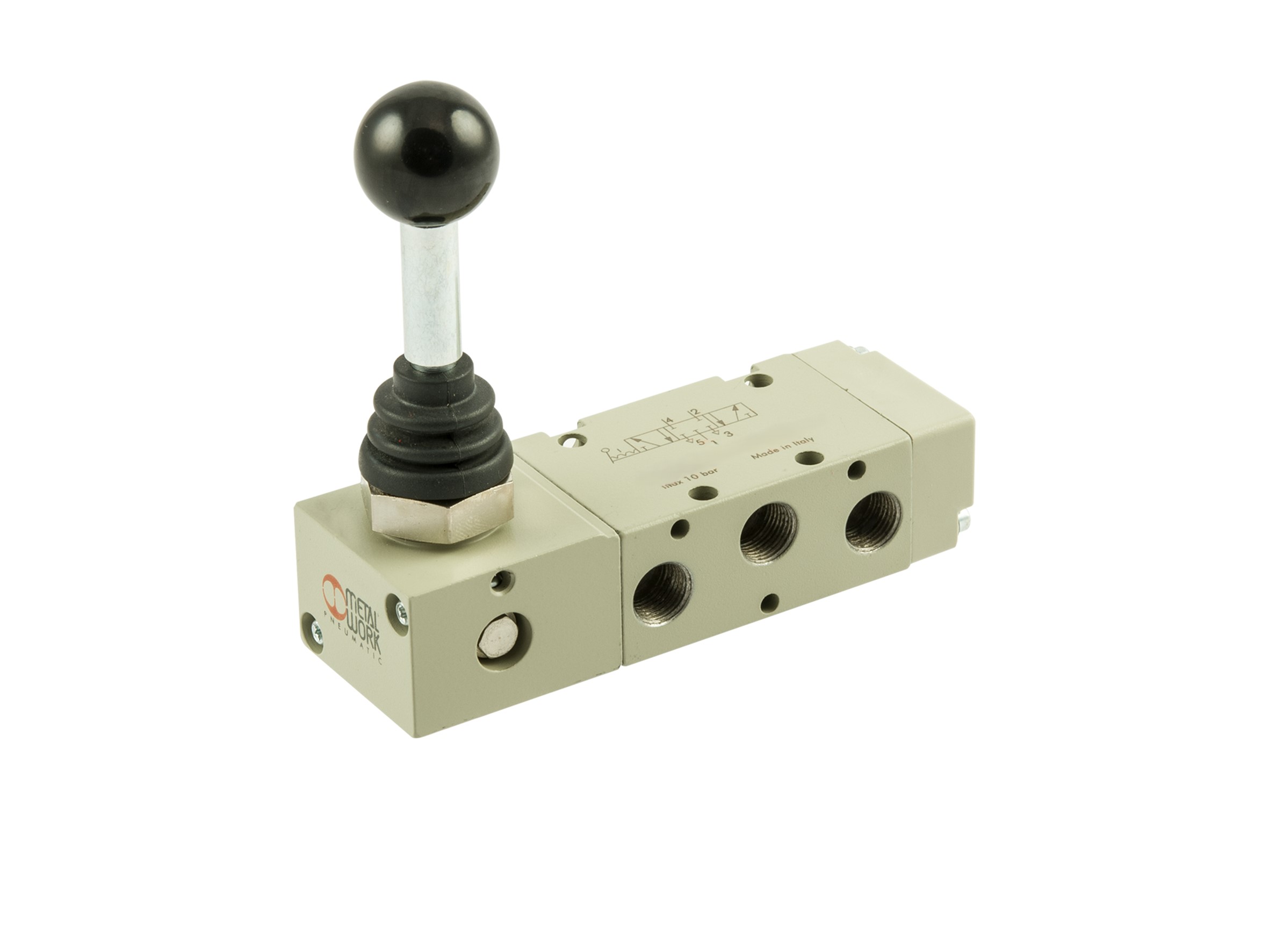

5/3 manually operated valves MW

5/3 manually operated valves MW

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread Number of ways/positions Pressure max. Pressure min.
MAV26LE0CC Käsiventtiili 1/8" 5/3 Asentolukitus G 1/8 BSP 5/3 10 bar -0.99 bar
MAV26LESCC PI-venttiili 70 Manual MAV G 1/8 BSP 5/3 10 bar -0.99 bar
MAV26LESOC PI-venttiili 70 Manual MAV G 1/8 BSP 5/3 10 bar -0.99 bar
MAV36LEOCC PI-venttiili 70 Manual MAV G 1/4 BSP 5/3 10 bar -0.99 bar
MAV36LEOOC Pneumatic valve 70 MAV G 1/4 BSP 5/3 10 bar -0.99 bar
MAV36LESCC PI-venttiili 70 Manual MAV G 1/4 BSP 5/3 10 bar -0.99 bar
MAV36LESOC PI-venttiili 70 Manual MAV G 1/4 BSP 5/3 10 bar -0.99 bar
Activation
Handlever
Brand Name
Metal Work
Flow air nominal
1100
Lever
Inclusive
Material
Aluminium
Number of ways/positions
5/3
Pressure max.
10
Pressure min.
-0.99
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR
Temperature max.
+60
Temperature min.
-10
