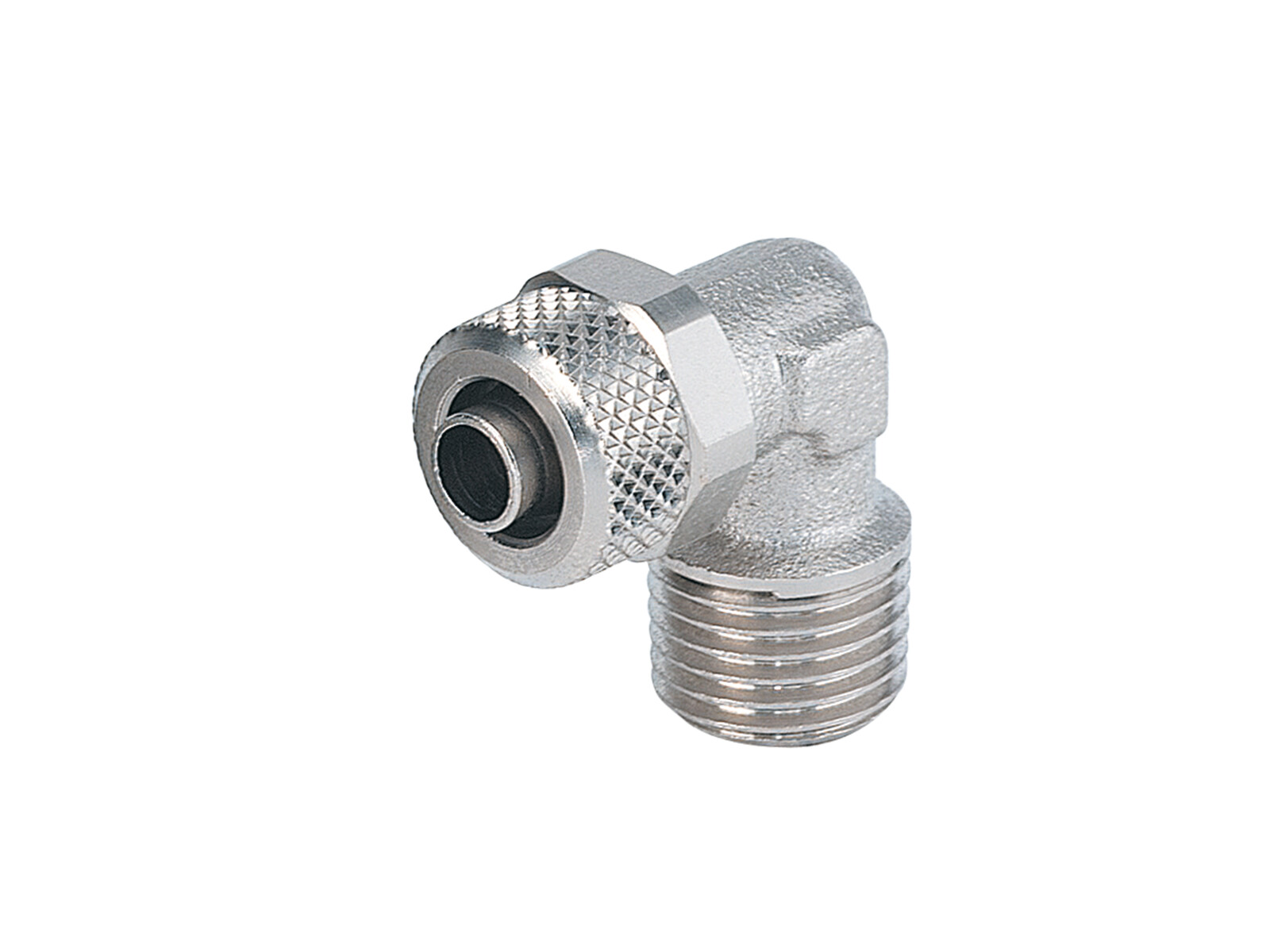

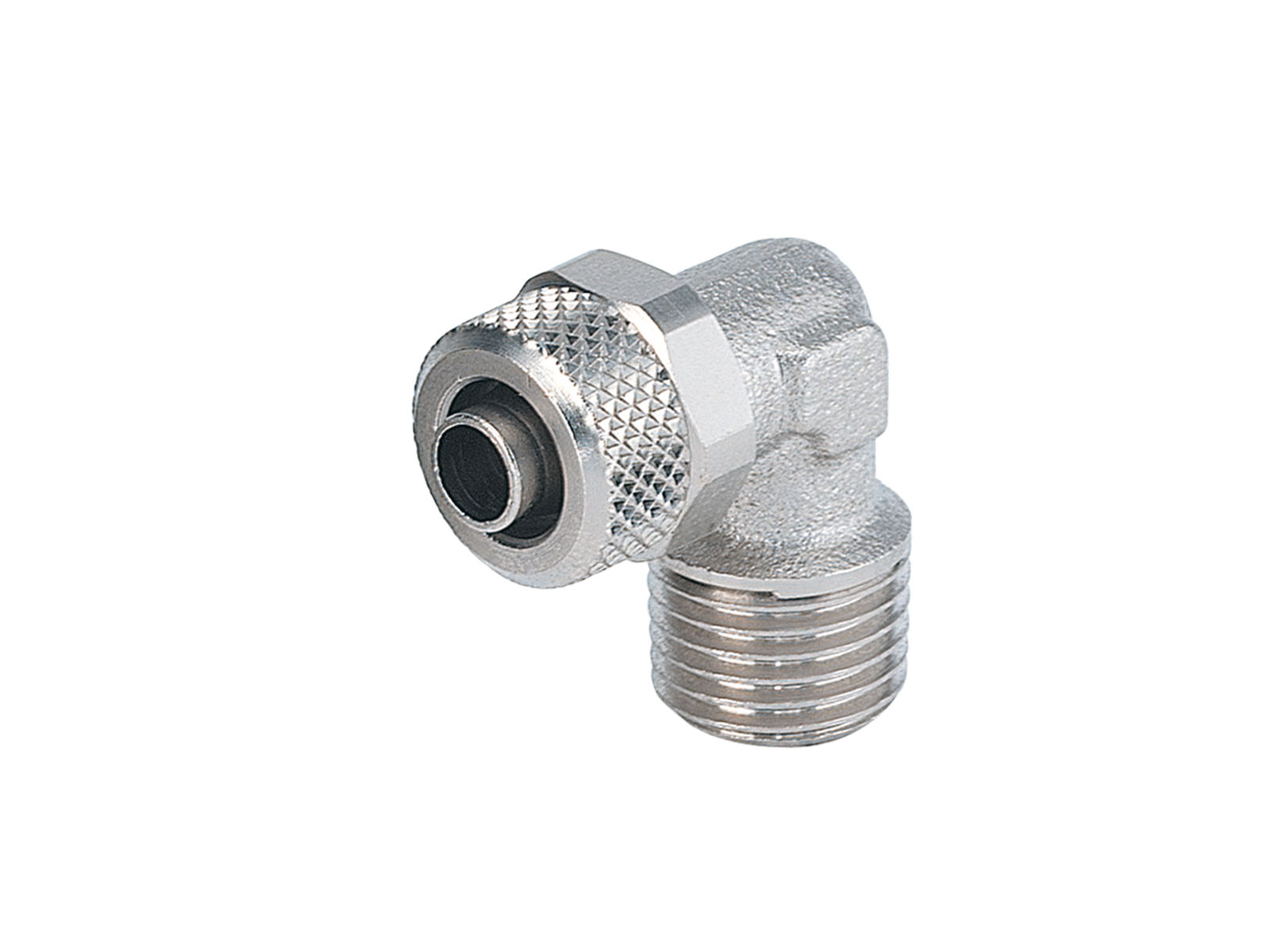

C5 compression fittings 90° BSPT MW

C5 compression fittings 90° BSPT MW

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread Pressure max. Brand Name
C50602 Puristusliitin kulma kartio C5 uk R 1/8 BSPT 18 bar Metal Work
C50604 Puristusliitin kulma kartio C5 uk R 1/4 BSPT 18 bar Metal Work
C50802 Puristusliitin kulma kartio C5 uk R 1/8 BSPT 18 bar Metal Work
C50804 Elbow stud C5 R 1/4 BSPT 18 bar Metal Work
C51004 Elbow stud C5 R 1/4 BSPT 18 bar Metal Work
C51006 Elbow stud C5 R 3/8 BSPT 18 bar Metal Work
C51206 Puristusliitin kulma kartio C5 uk R 3/8 BSPT 18 bar Metal Work
C51208 Puristusliitin kulma kartio C5 uk R 1/2 BSPT 18 bar Metal Work
C51508 Puristusliitin kulma kartio C5 uk R 1/2 BSPT 18 bar Metal Work
Angle
90
Brand Name
Metal Work
Material
Brass
Pressure max.
18
REACH compliant
Yes
RoHs compliant
Yes
Temperature max.
+80
Temperature min.
-20
