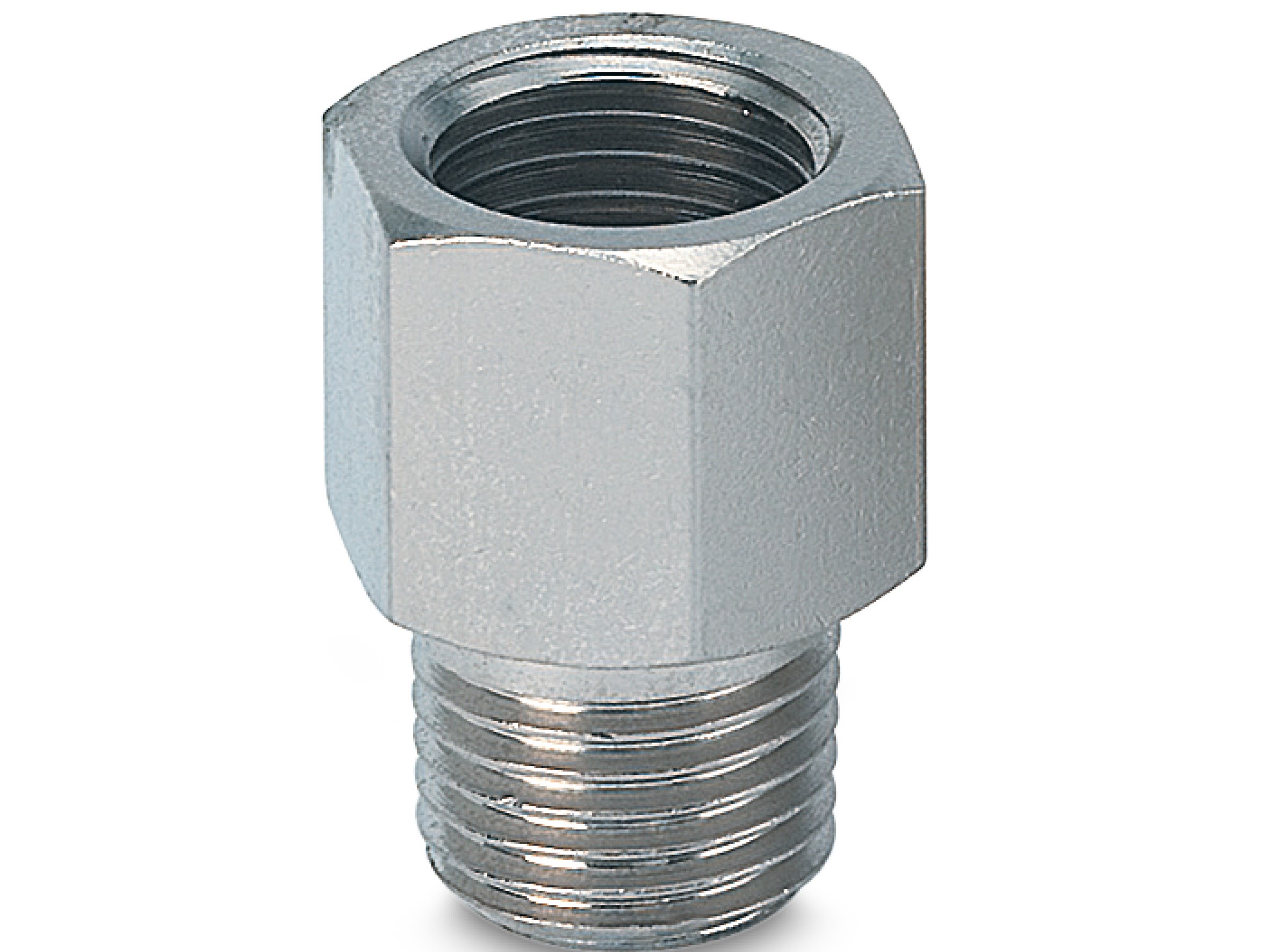

A5 extension tubes out BSPT-in BSP MW

A5 extension tubes out BSPT-in BSP MW

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread outer Thread inner Pressure max. Brand Name
A50202 Muunnosnippa A5 R 1/8"uk - G 1/8"sk R 1/8 BSPT G 1/8 BSP 60 bar Metal Work
A50204 Muunnosnippa A5 R 1/8"uk - G 1/4"sk R 1/8 BSPT G 1/4 BSP 60 bar Metal Work
A50206 Muunnosnippa A5 R 1/8"uk - G 3/8"sk R 1/8 BSPT G 3/8 BSP 60 bar Metal Work
A50404 Jatkonippa kartio A5 uk/sk R 1/4 BSPT G 1/4 BSP 60 bar Metal Work
A50406 Jatkonippa kartio A5 uk/sk R 1/4 BSPT G 3/8 BSP 60 bar Metal Work
A50408 Muunnosnippa A5 R 1/4"uk - G 1/2"sk R 1/4 BSPT G 1/2 BSP 60 bar Metal Work
A50606 Muunnosnippa A5 R 3/8"uk - G 3/8"sk R 3/8 BSPT G 3/8 BSP 60 bar Metal Work
A50608 Jatkonippa kartio A5 uk/sk R 3/8 BSPT G 1/2 BSP 60 bar Metal Work
A50808 Jatkonippa kartio A5 uk/sk R 1/2 BSPT G 1/2 BSP 60 bar Metal Work
Angle
0
Brand Name
Metal Work
Material
Brass
Pressure max.
60
REACH compliant
Yes
RoHs compliant
Yes
Temperature max.
+80
Temperature min.
-20
