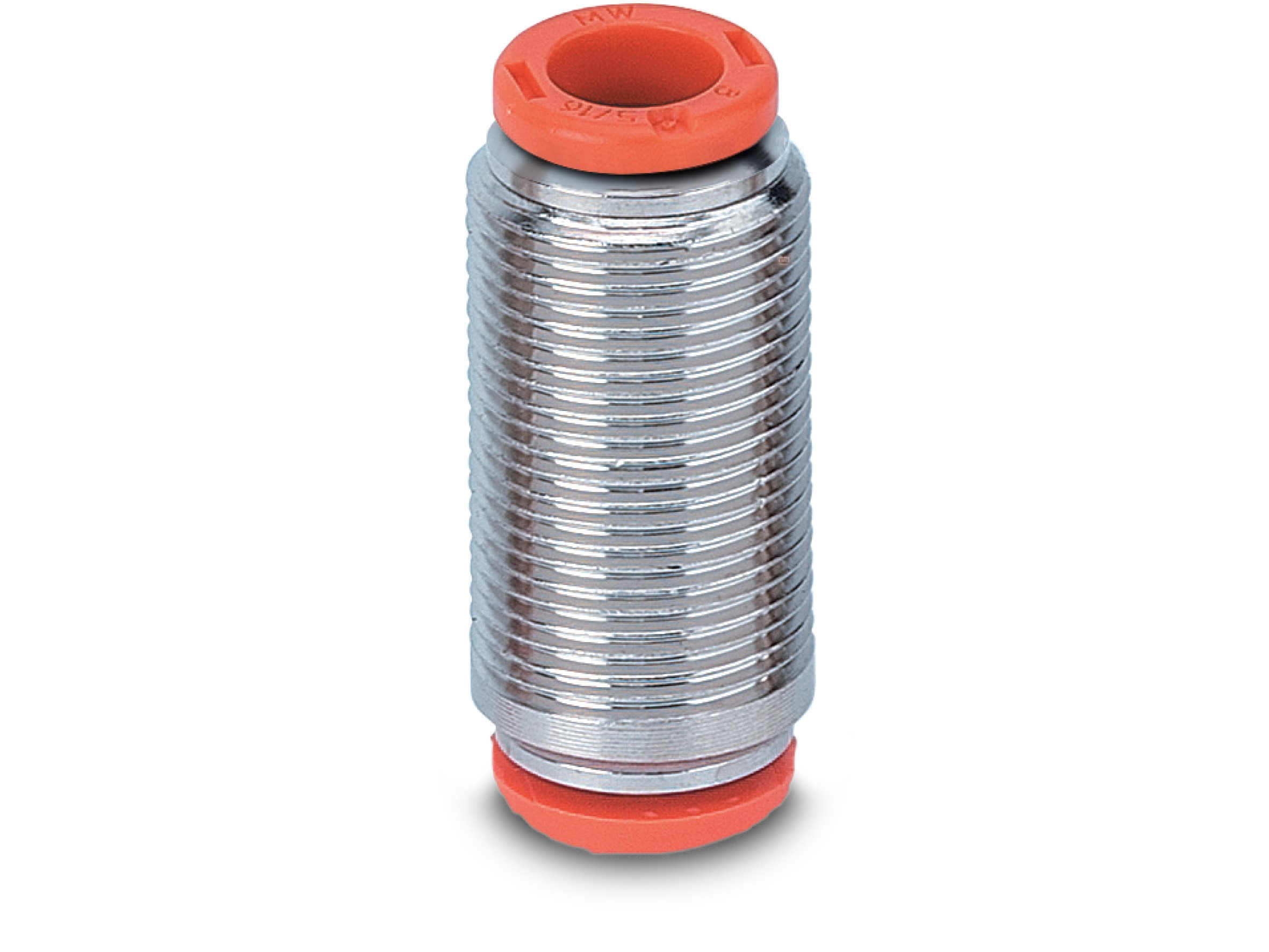

R3 Plug connector direct extension connectors MW

R3 Plug connector direct extension connectors MW

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Pressure max. Brand Name
R304 Pistoliitin jatko R3 FOX 4 mm 16 bar Metal Work
R305 Pistoliitin jatko R3 FOX 5 mm 16 bar Metal Work
R306 Pistoliitin jatko R3 FOX 6 mm 16 bar Metal Work
R30610 Straight push-in reducer 16 bar Metal Work
R308 Pistoliitin jatko R3 FOX 8 mm 16 bar Metal Work
R310 Pistoliitin jatko R3 FOX 10 mm 16 bar Metal Work
R312 Push-in joint straight R3 FOX 12 mm 16 bar Metal Work
R314 Pistoliitin jatko R3 FOX 14 mm 16 bar Metal Work
Brand Name
Metal Work
Material
Brass
Pressure max.
16
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR
Temperature max.
+80
Temperature min.
-20
Vacuum max.
-0.9
