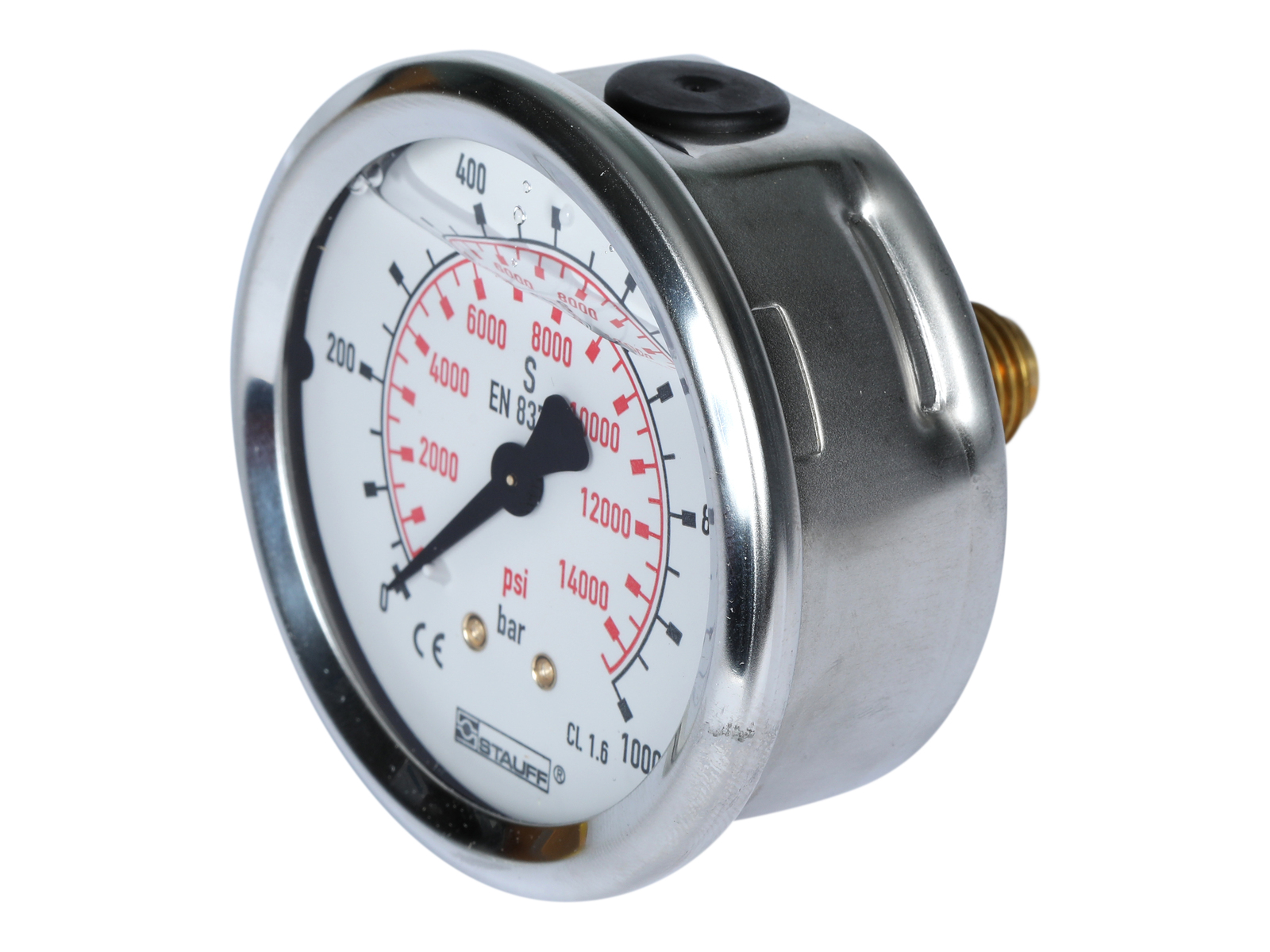

Glycerine filled - Ø63 mm pressure gauge with rear connection, Stainless Steal

Glycerine filled - Ø63 mm pressure gauge with rear connection, Stainless Steal

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Brand Name Pressure setting max. Pressure measurement accuracy Thread
SPG063-001RB SPG-063-00001-01-P-B04 Stauff 1 bar ±1,6% FS G 1/4 BSP
SPG063-002RB 1/4" pressure gauge. Rear mount. Scale 0-2,5 bar Stauff 2.5 bar ±1,6% FS G 1/4 BSP
SPG063-004RB Manometer anslutning Bak G1/4'', 0-4 Bar Stauff 4 bar ±1,6% FS G 1/4 BSP
SPG063-006RB 1/4" pressure gauge. Rear mount. Scale 0-6 bar Stauff 6 bar ±1,6% FS G 1/4 BSP
SPG063-010RB 1/4" pressure gauge. Rear mount. Scale 0-10 bar Stauff 10 bar ±1,6% FS G 1/4 BSP
SPG063-016RB 1/4" pressure gauge. Rear mount. Scale 0-16 bar Stauff 16 bar ±1,6% FS G 1/4 BSP
SPG063-025RB 1/4" pressure gauge. Rear mount. Scale 0-25 bar Stauff 25 bar ±1,6% FS G 1/4 BSP
SPG063-040RB 1/4" pressure gauge. Rear mount. Scale 0-40 bar Stauff 40 bar ±1,6% FS G 1/4 BSP
SPG063-060RB 1/4" pressure gauge. Rear mount. Scale 0-60 bar Stauff 60 bar ±1,6% FS G 1/4 BSP
SPG063-100RB 1/4" pressure gauge. Rear mount. Scale 0-100 bar Stauff 100 bar ±1,6% FS G 1/4 BSP
SPG063-160RB 1/4" pressure gauge. Rear mount. Scale 0-160 bar Stauff 160 bar ±1,6% FS G 1/4 BSP
SPG063-250RB 1/4" pressure gauge. Rear mount. Scale 0-250 bar Stauff 250 bar ±1,6% FS G 1/4 BSP
SPG063-400RB 1/4" pressure gauge. Rear mount. Scale 0-400 bar Stauff 400 bar ±1,6% FS G 1/4 BSP
SPG063-600RB 1/4" pressure gauge. Rear mount. Scale 0-600 bar Stauff 600 bar ±1,6% FS G 1/4 BSP
SPG063M1-3RB 1/4" pressure gauge. Rear mount. Scale -1+3 bar Stauff 3 bar ±1,6% FS G 1/4 BSP
Brand Name
Stauff
Diameter
63
Glass type
Acrylic glass
Material
Stainless steel
Material quality
1.4301 / AISI304
Port position
Rear
Pressure measurement accuracy
±1,6% FS
Thread
G 1/4
