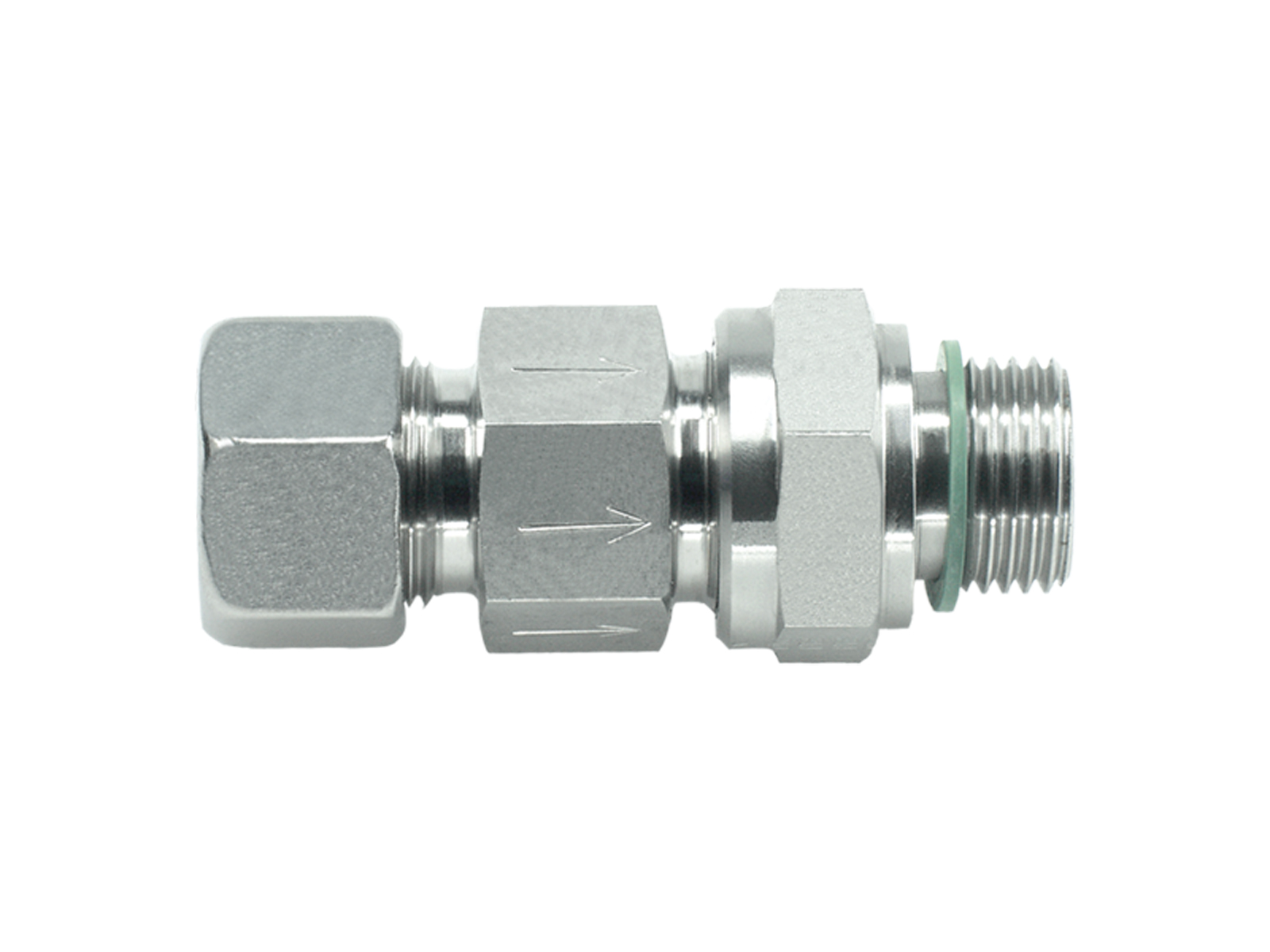

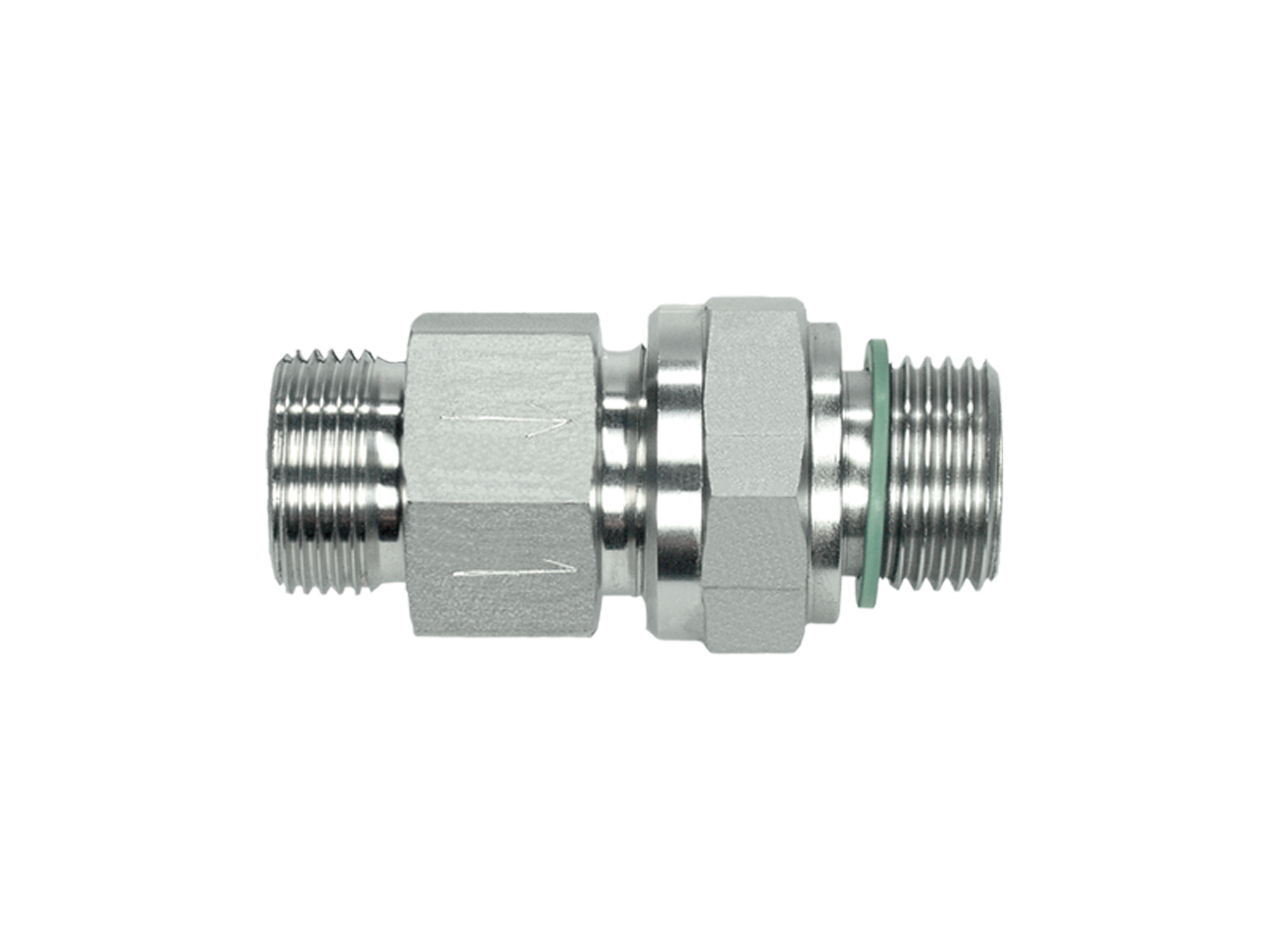

Check valves DIN2353 BSP - L-Series stainless

Check valves DIN2353 BSP - L-Series stainless

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread Pressure opening Pressure max.
HRZL-12-0.2 Vastaventtiili 12 mm G 3/8 BSP 0.2 bar 250 bar
HRZL-12-0.2X Vastaventtiili, runko 12 mm G 3/8 BSP 0.2 bar 250 bar
HRZL-18-0.2X Vastaventtiili, runko 18 mm G 1/2 BSP 0.2 bar 160 bar
HRZL-28-0.2 Vastaventtiili 28 mm G 1 BSP 0.2 bar 100 bar
HRZL-28-0.5X Vastaventtiili, runko 28 mm G 1 BSP 0.5 bar 100 bar
HRZL-35-0.2X Vastaventtiili, runko 35 mm G 1.1/4 BSP 0.2 bar 100 bar
HRZL-42-0.2 Vastaventtiili 42 mm G 1.1/2 BSP 0.2 bar 100 bar
RSVZ12LR3/8WD0.2 CIN check valve 12 mm G 3/8 BSP 0.2 bar 400 bar
RSVZ28LR1WD0.2 DIN check valve 28 mm G 1 BSP 0.2 bar 160 bar
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Safety factor
2.5
Series
L
Temperature max.
+200
