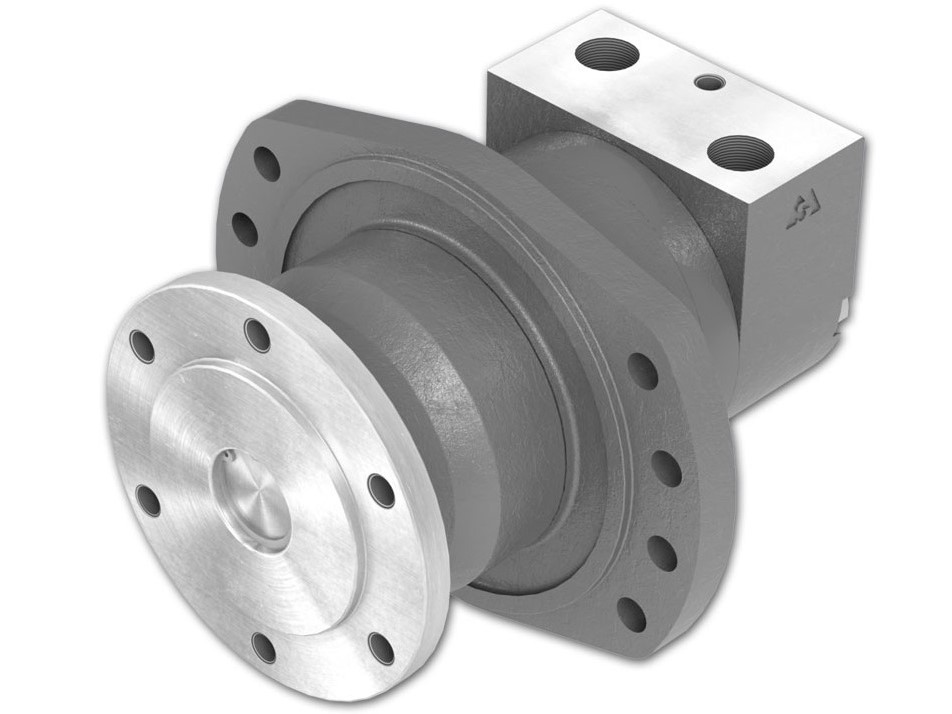

Orbital motors M+S VMF series

SELECT VARIANT
Partnumber Description Displacement Continuous power max. Number of mounting holes Mounting flange
VMF315-2HD/2 VMF315-2HD/2 314.5 cm3 67 kW 8 N/A
VMF500-2HD/2 VMF500-2HD/2 499.6 cm3 67 kW 8 N/A
VMF630-2HD/2 VMF630-2HD/2 629.1 cm3 67 kW 8 N/A
VMF8002HD Hydraulimoottori, 801,8cm³ 801.8 cm3 67 kW 8 N/A
Brand Name
Hydraspecma

Contamination level max.
-/20/16 - ISO 4406

Continuous power max.
67

Drainport
G 1/4

Filtration degree
25

Holes circle
265

Mounting flange
N/A

Number of mounting holes
8

Oil viscocity recommended
20 - 75

Port position
Side

Recess
130,0

Temperature max.
+82

Temperature min.
-40

Working ports
G 1
