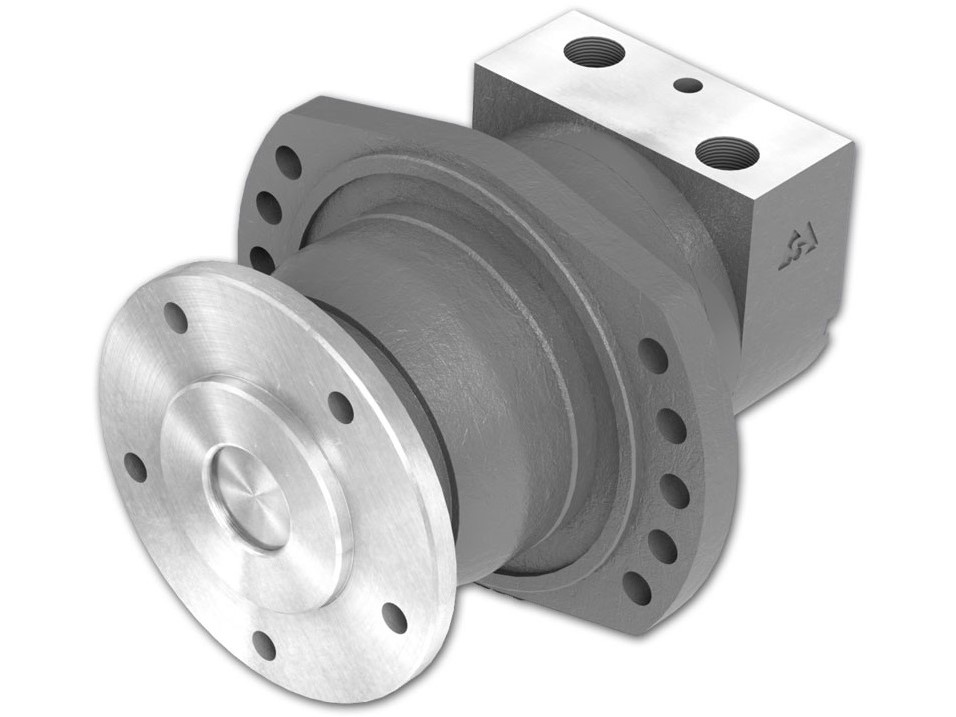

Orbital motors M+S TMF series

Orbital motors M+S TMF series

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Continuous power max. Number of mounting holes Mounting flange
TMF200-2HD TMF200-2HD 201.4 cm3 41 kW 10 N/A
TMF2502HD TMF2502HD 251.8 cm3 41 kW 10 N/A
TMF4002HD Hydraulimoottori, 410,9cm³/r 410.9 cm3 41 kW 10 N/A
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
41
Drainport
G 1/4
Filtration degree
25
Holes circle
210
Mounting flange
N/A
Number of mounting holes
10
Oil viscocity recommended
20 - 75
Port position
Side
Pressure drop continuous max.
250
Recess
92,8
Temperature max.
+82
Temperature min.
-40
Working ports
G 3/4
