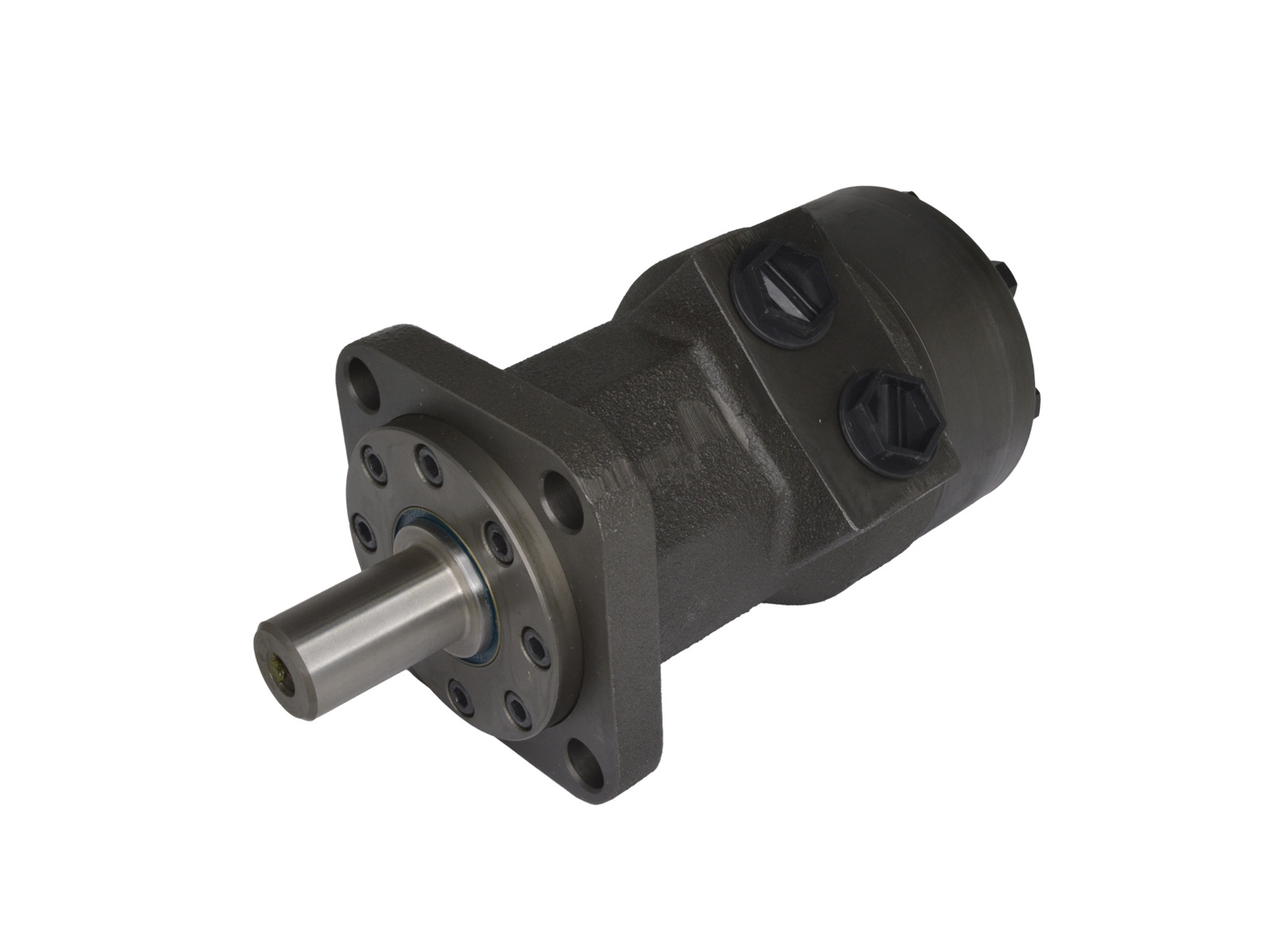

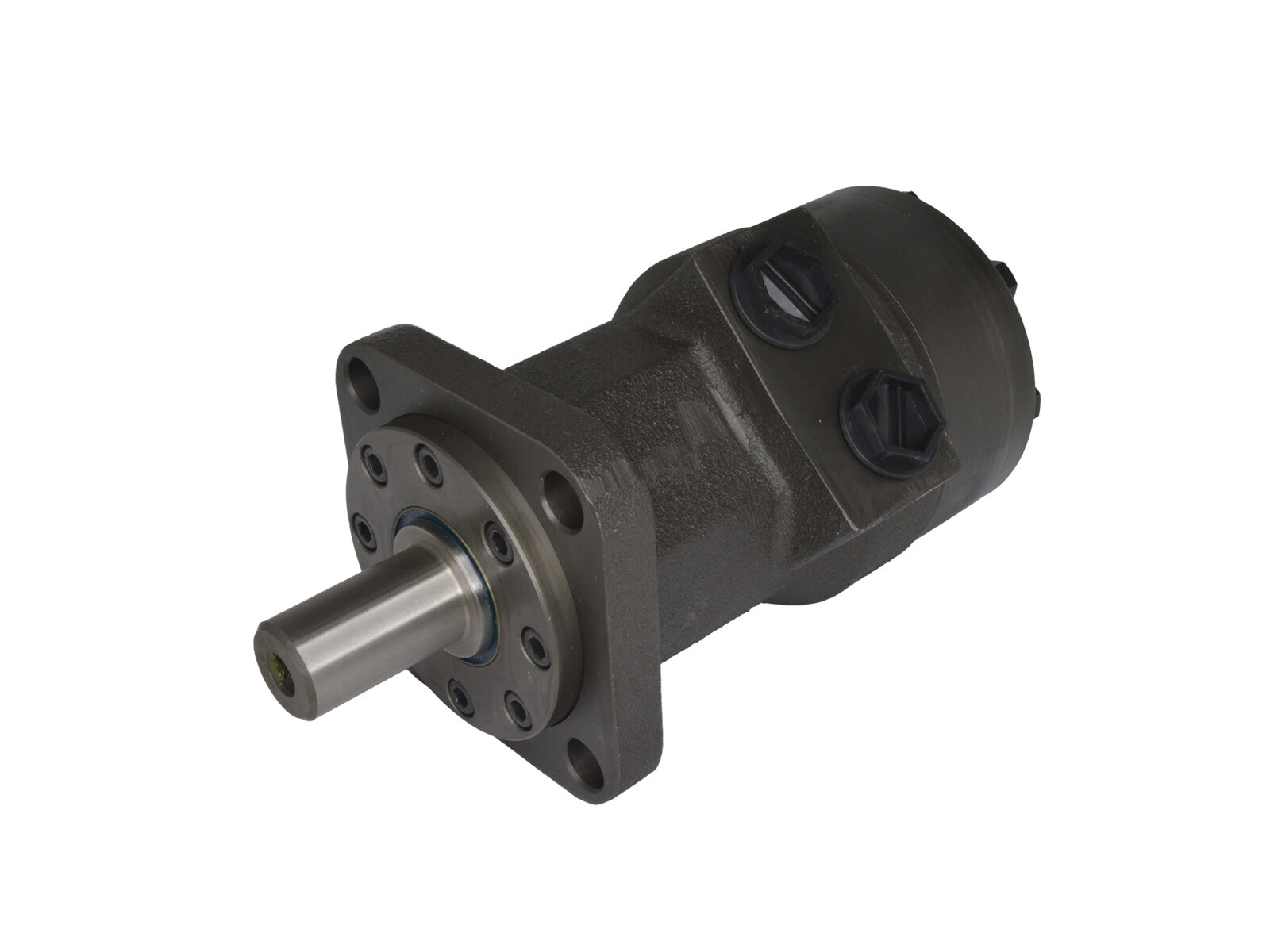

Orbital motors M+S RL series

Orbital motors M+S RL series

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Shaft diameter Shaft type Continuous power max.
RL160CU RL160CU 159.6 cm3 25 mm Cylindrical 12.5 kW
RL200CB RL200CB 199.8 cm3 32 mm Cylindrical 11 kW
RL200CU RL200CU 199.8 cm3 25 mm Cylindrical 11 kW
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Drainport
G 1/4
Filtration degree
25
Holes circle
106.4
Mounting flange
SAE-A4
Number of mounting holes
4
Oil viscocity recommended
20 - 75
Port position
Side
Pressure drop continuous max.
175
Recess
82,5
Shaft type
Cylindrical
Temperature max.
+82
Temperature min.
-40
Working ports
G 1/2
