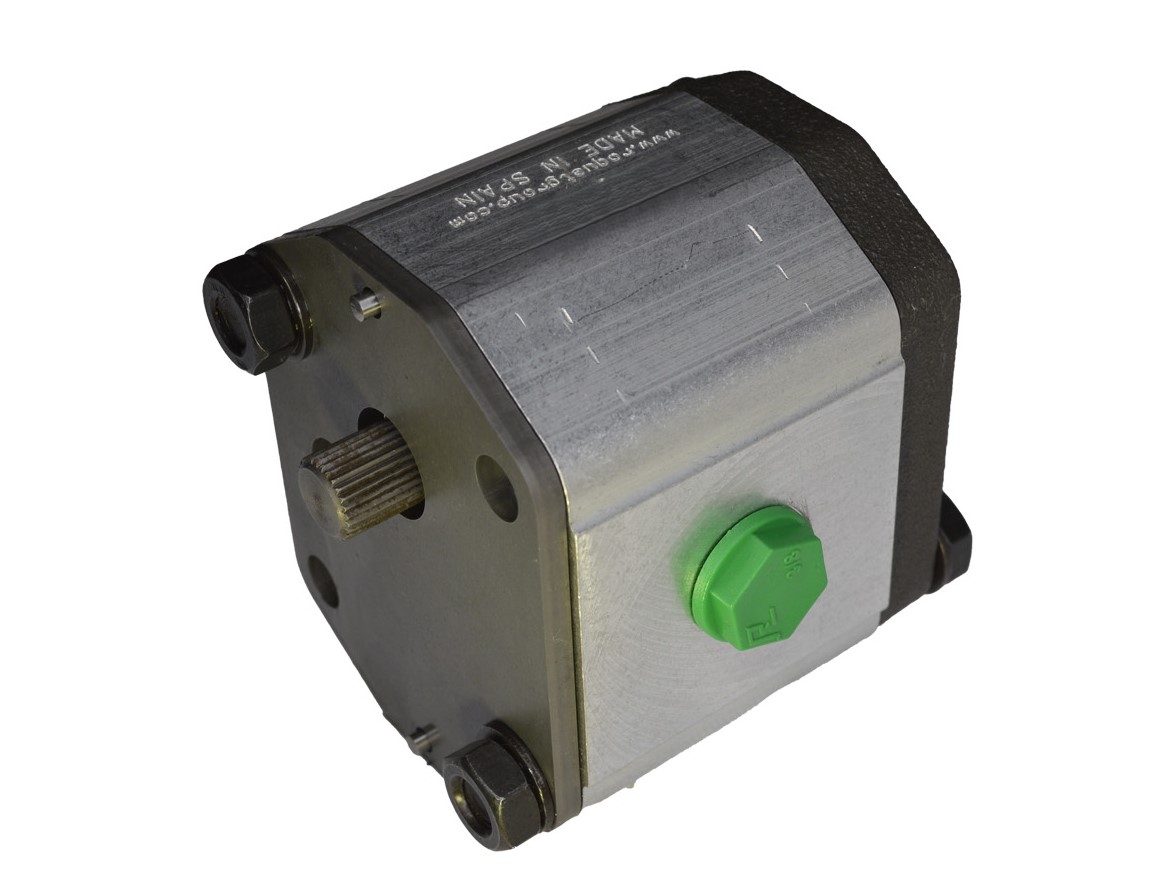

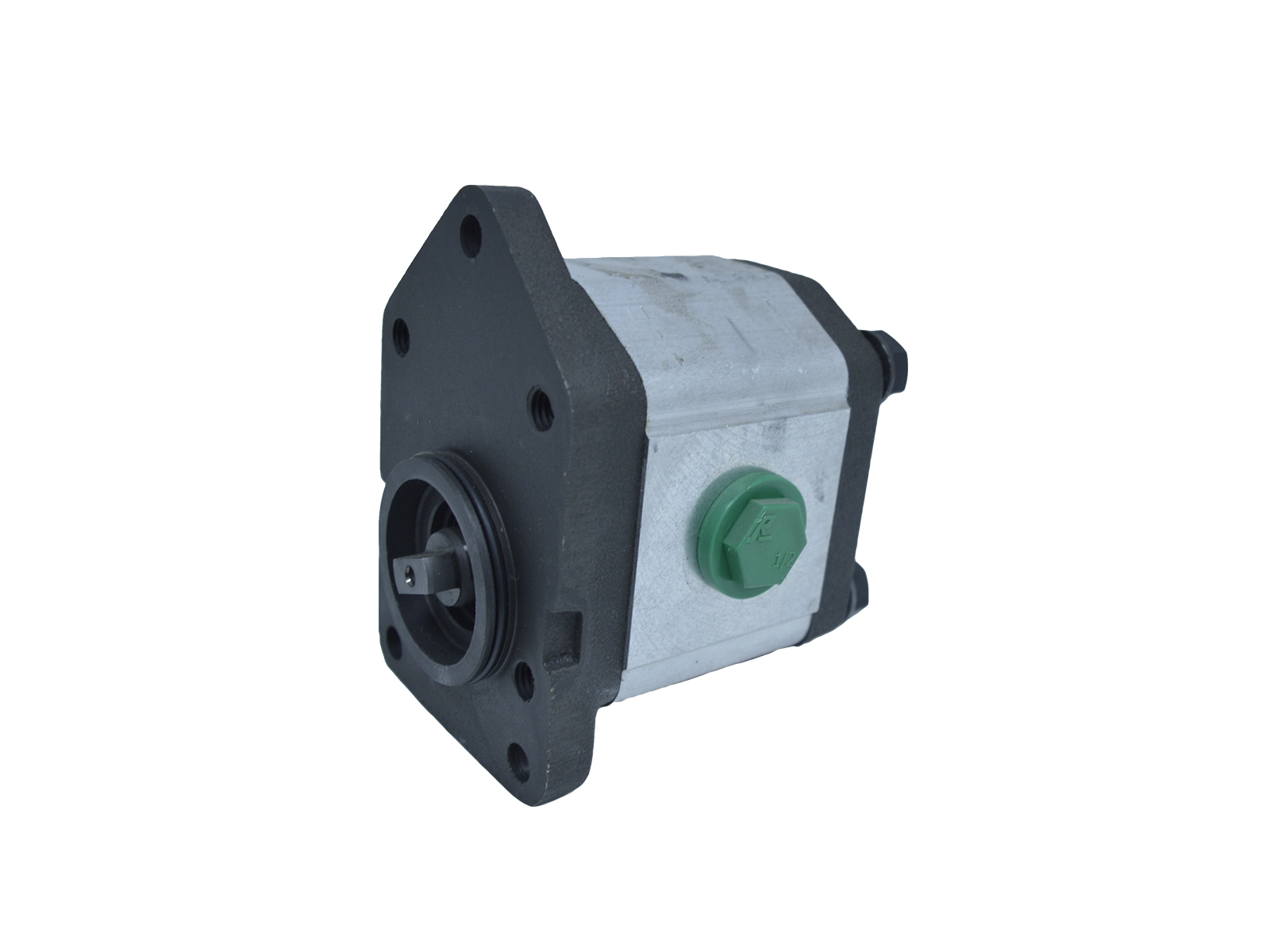

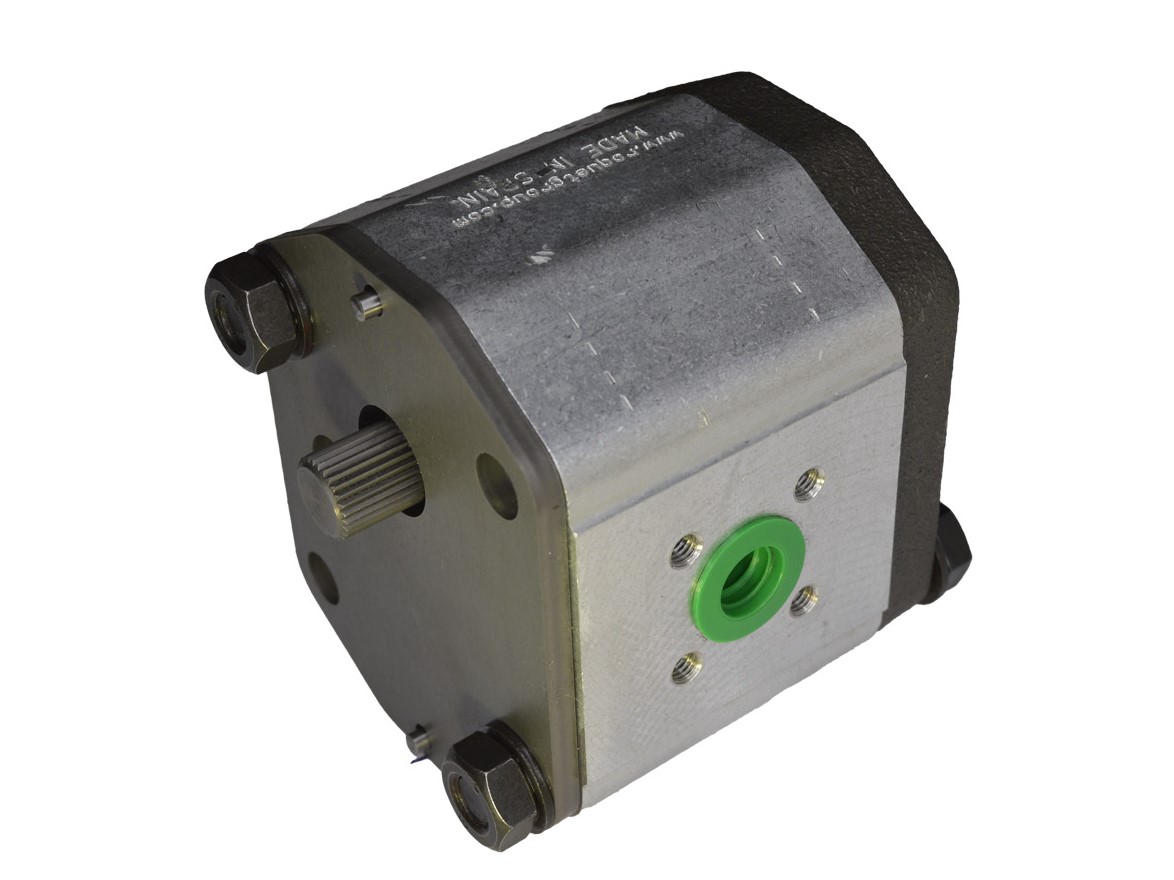

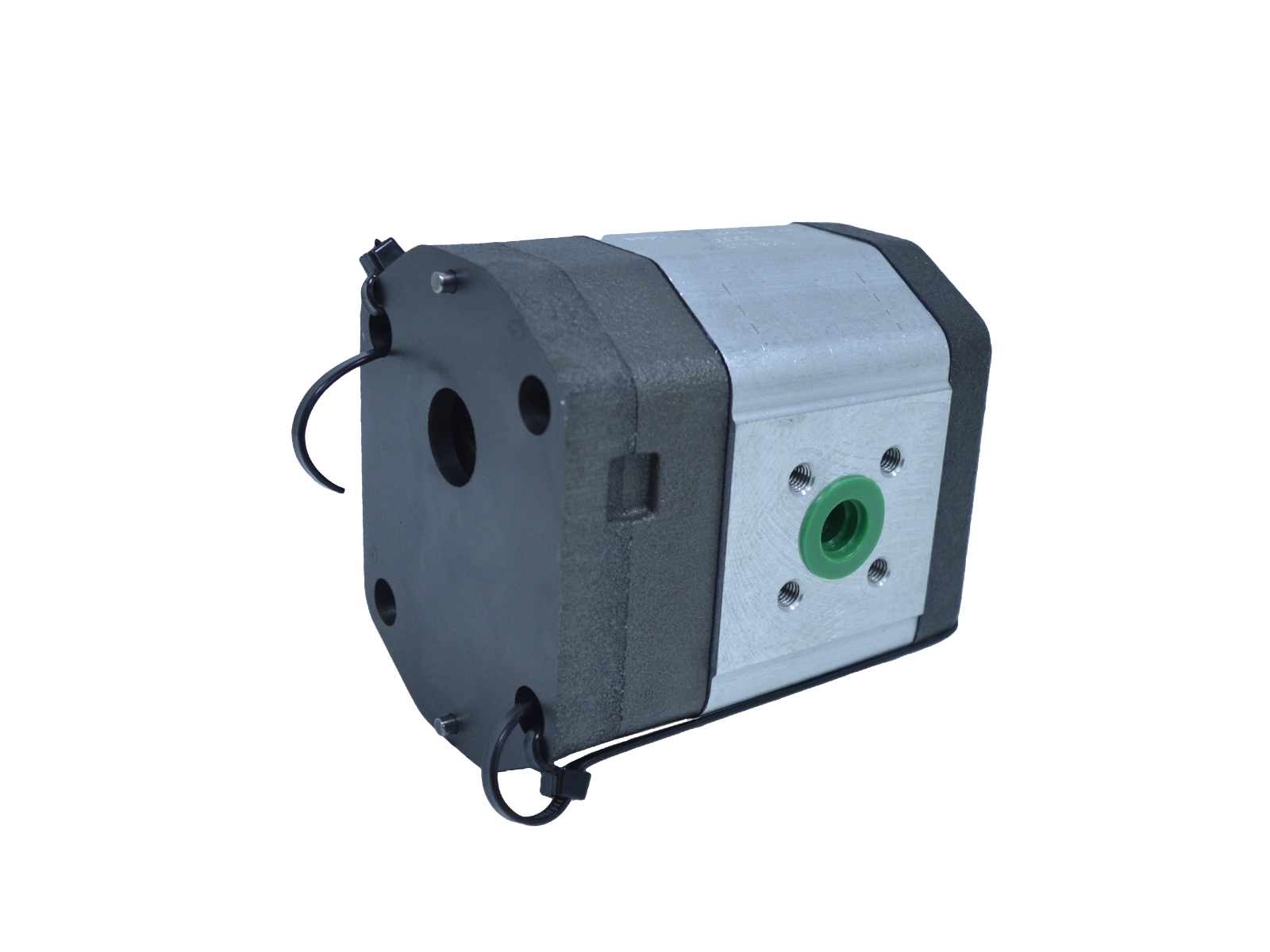

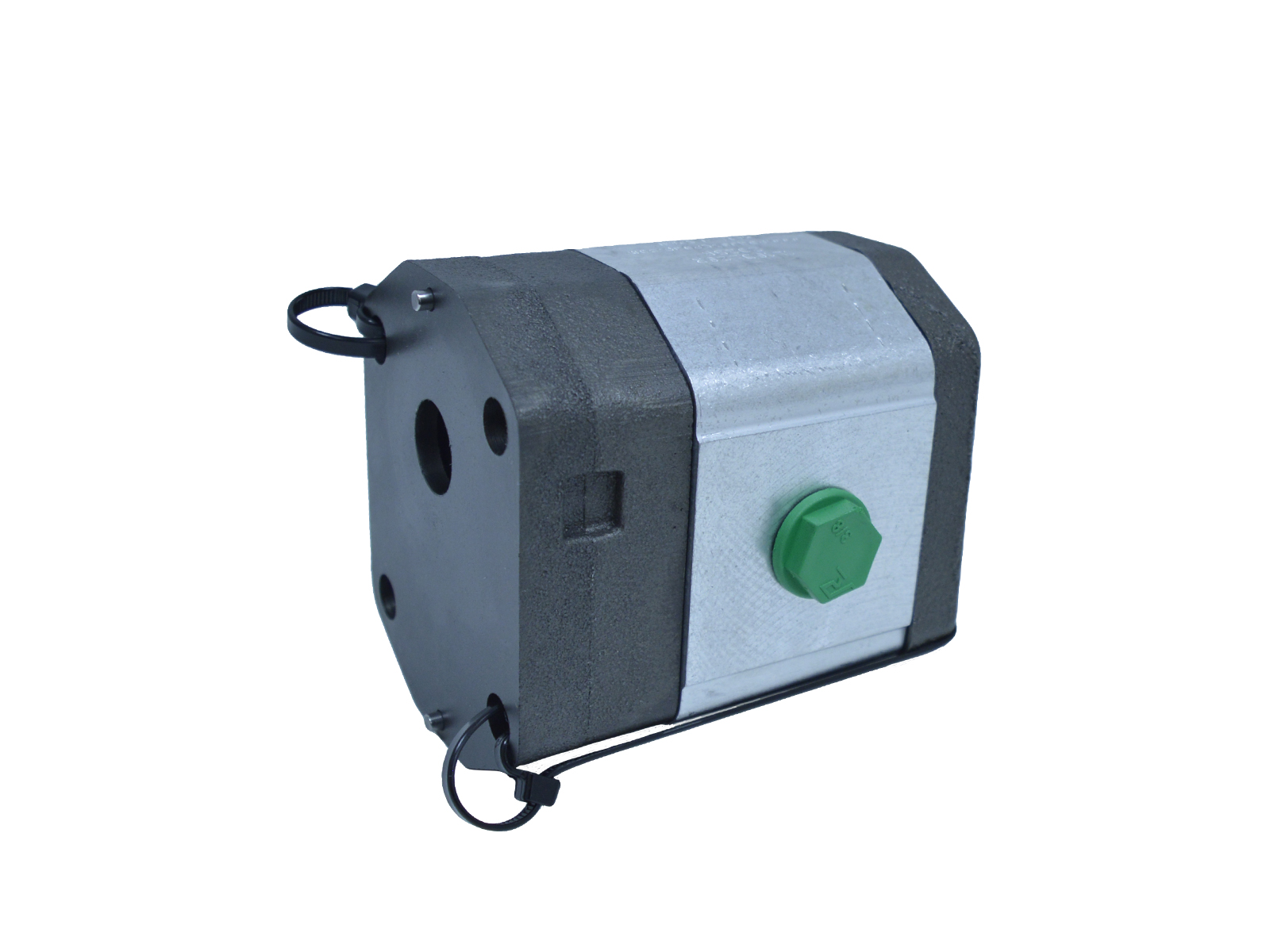

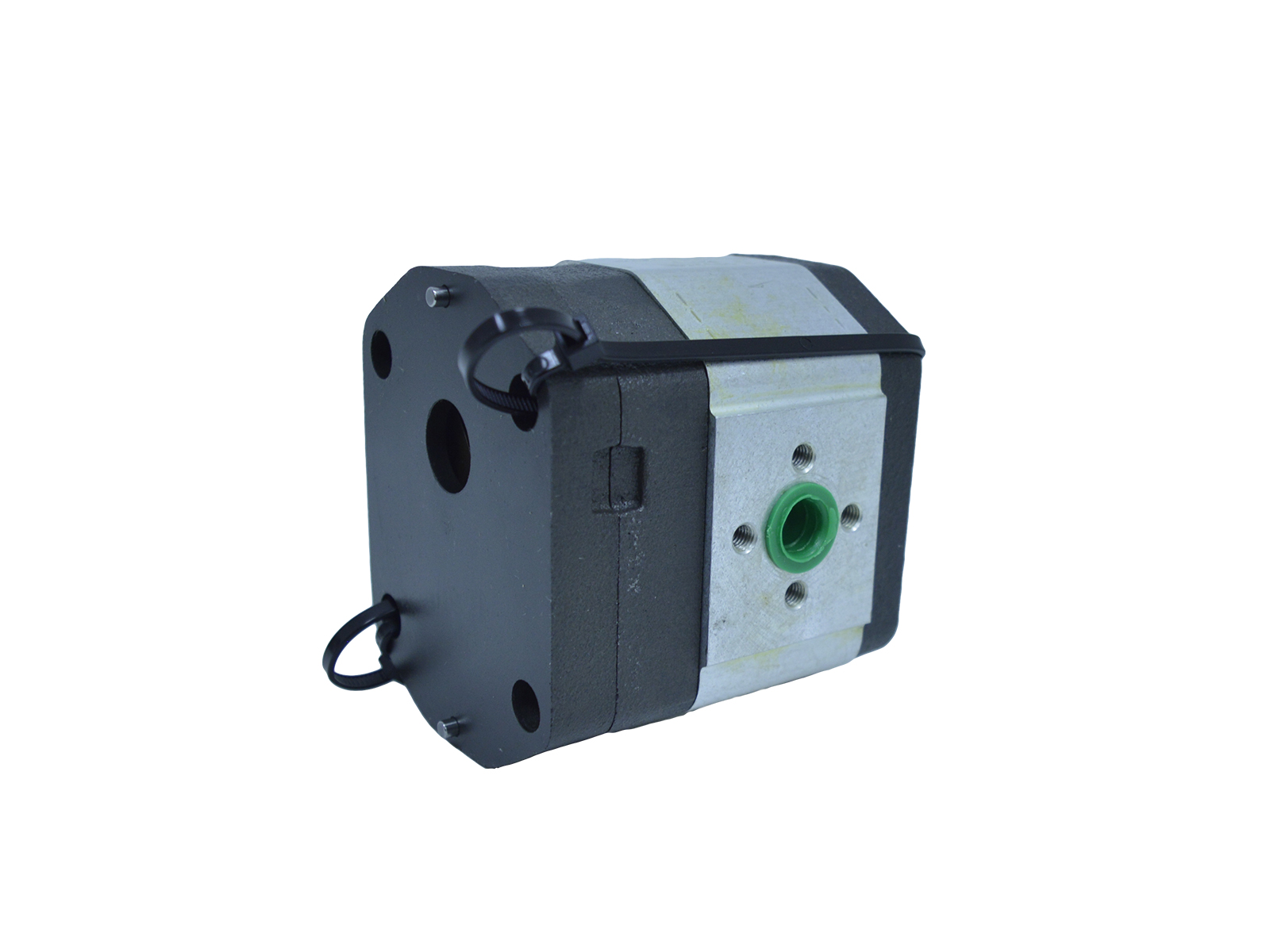

Gear pump Roquet, rear section group 2

Gear pump Roquet, rear section group 2

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Pressure continous max. Rotational speed max. Rotation direction
1G11CDZ00R Rear / intermediate pump 10.7cm3/r 10.7 cm3 275 bar 3500 rpm Right (CW)
1G12CDZ00R Rear / intermediate pump 12cm³/r 12 cm3 275 bar 3500 rpm Right (CW)
1G15CDZ00F Rear / intermediate pump 14.7cm3/r 14.7 cm3 250 bar 3500 rpm Right (CW)
1G15CDZ00R Rear / intermediate pump 14.7cm3/r 14.7 cm3 250 bar 3500 rpm Right (CW)
1G8CDZ00F Rear / intermediate pump 8cm3/r 8 cm3 275 bar 4000 rpm Right (CW)
1G8CIZ00F Rear / intermediate pump 8cm3/r 8 cm3 275 bar 4000 rpm Left (CCW)
TLD16DE10R Takapumppu 10,6cm3/r 10.6 cm3 275 bar 3500 rpm Right (CW)
TLD22DE10R Takapumppu 14,6cm3/r 14.6 cm3 250 bar 3500 rpm Right (CW)
TLD35DE10R Takapumppu 23,3cm3/r 23.3 cm3 180 bar 3000 rpm Right (CW)
TLD6DE10R Takapumppu 4cm3/r 4 cm3 275 bar 4000 rpm Right (CW)
TLM16DJ22F Takapumppu 10,6cm3/r 10.6 cm3 275 bar 3500 rpm Right (CW)
TLM6DE10B Takapumppu 4cm3/r 4 cm3 275 bar 4000 rpm Right (CW)
TLM6DE10R Takapumppu 4cm3/r 4 cm3 275 bar 4000 rpm Right (CW)
