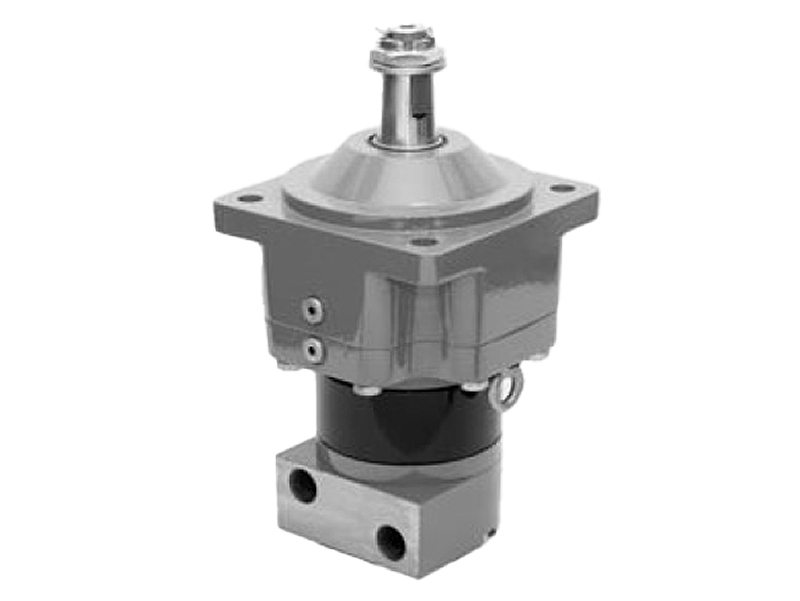

Orbital motors M+S MTM/B series

Orbital motors M+S MTM/B series

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Shaft diameter Shaft type Continuous power max.
MTM/BC500M2HD Hydr.moottori 494,9cm3/r 125mm ohj 494.9 cm3 40 mm Cylindrical 37.5 kW
MTM/BD500SH4HDRS-01P Hydr.moottori 494,9cm3/r 180mm ohj 494.9 cm3 38,1 mm Spline 37.5 kW
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
37.5
Continuous rotation max.
250
Displacement
494.9
Drainport
G 1/4
Filtration degree
25
Number of mounting holes
4
Oil viscocity recommended
20 - 75
Port position
Side
Pressure drop continuous max.
160
Temperature max.
+82
Temperature min.
-40
Torque continuous max.
1720
Working ports
G 3/4
