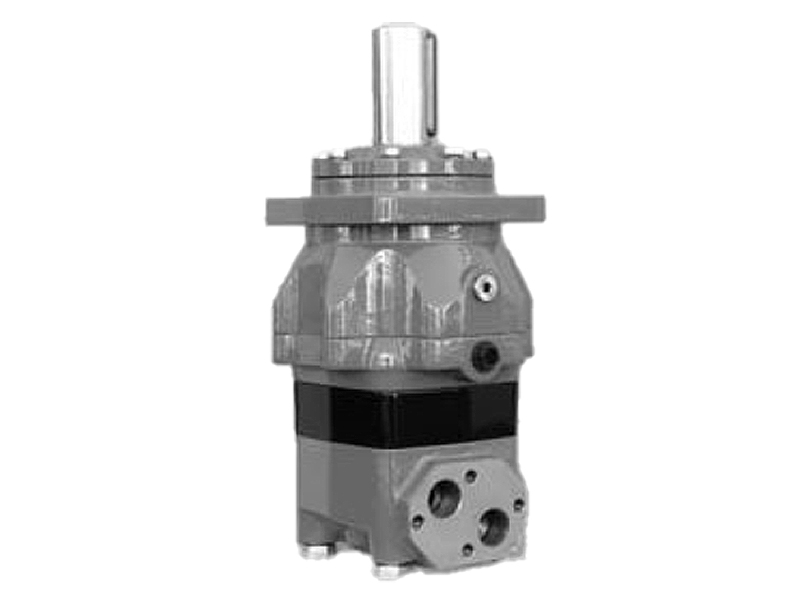

Orbital motors M+S MT/B series

MT/B 315 C

MT/B 315 SH

Motor M+S 400cc, broms, cyl40

MT/B500C/2

MT/B500K

Motor M+S 500cc, broms

SELECT VARIANT

Partnumber	Description	Displacement	Shaft diameter	Shaft type	Continuous power max.
MT/B315C	MT/B 315 C	326.3 cm3	40 mm	Cylindrical	33.5 kW
MT/B315SH	MT/B 315 SH	326.3 cm3	38,1 mm	Spline	33.5 kW
MT/B400CP	Motor M+S 400cc, broms, cyl40	410.9 cm3	40 mm	Cylindrical	30 kW
MT/B500C/2	MT/B500C/2	523.6 cm3	40 mm	Cylindrical	26.5 kW
MT/B500K	MT/B500K	523.6 cm3	45 mm	Tapered	26.5 kW
MT/B500SH	Motor M+S 500cc, broms	523.6 cm3	38,1 mm	Spline	26.5 kW

Brand Name

Hydraspecma

Contamination level max.

-/20/16 - ISO 4406

Drainport

G 3/8

Filtration degree

Holes circle

160

Number of mounting holes

Oil viscocity recommended

20 - 75

Port position

Side

Recess

125,0

Temperature max.

+82

Temperature min.

-40

Working ports

G 3/4
