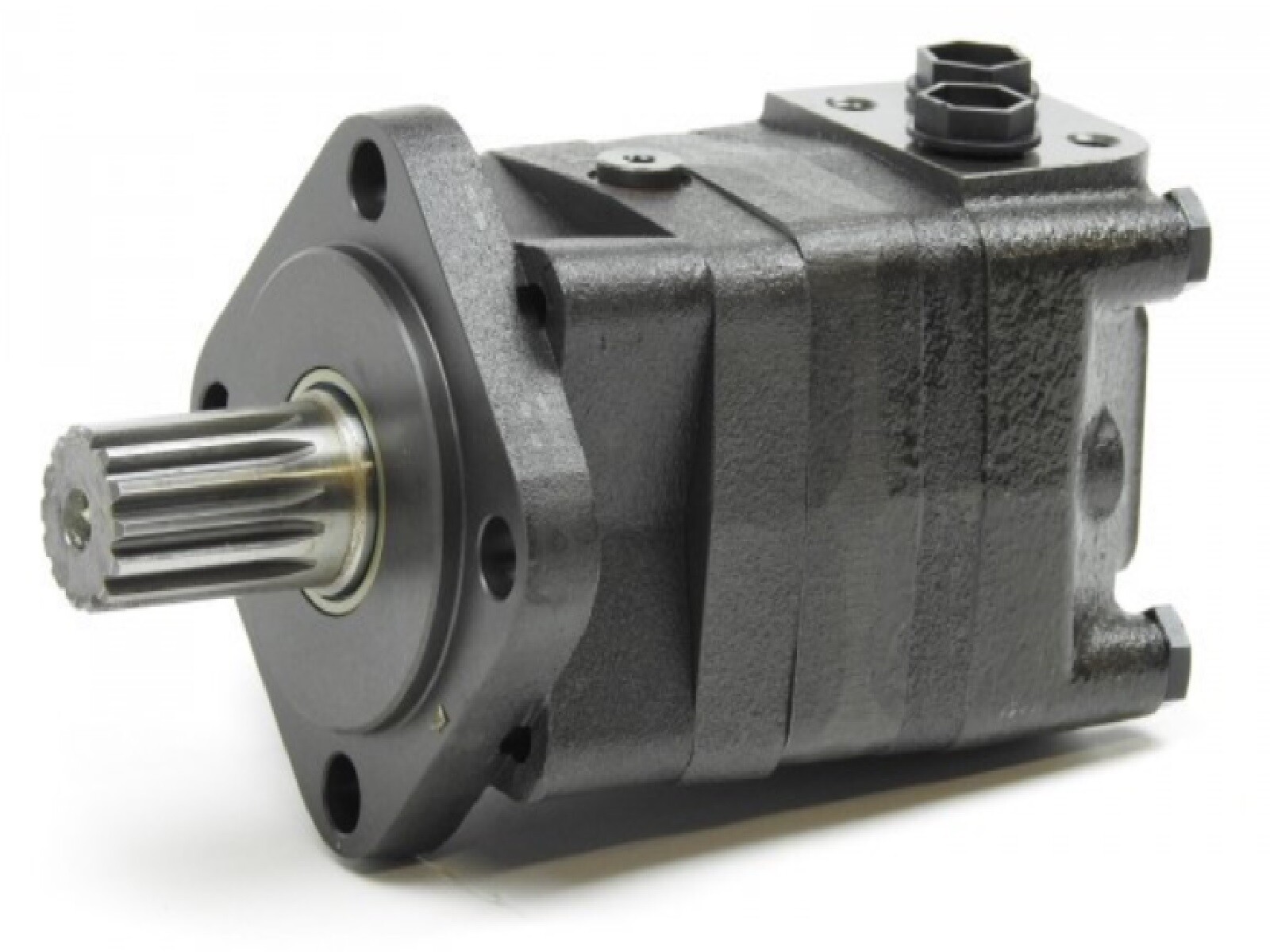

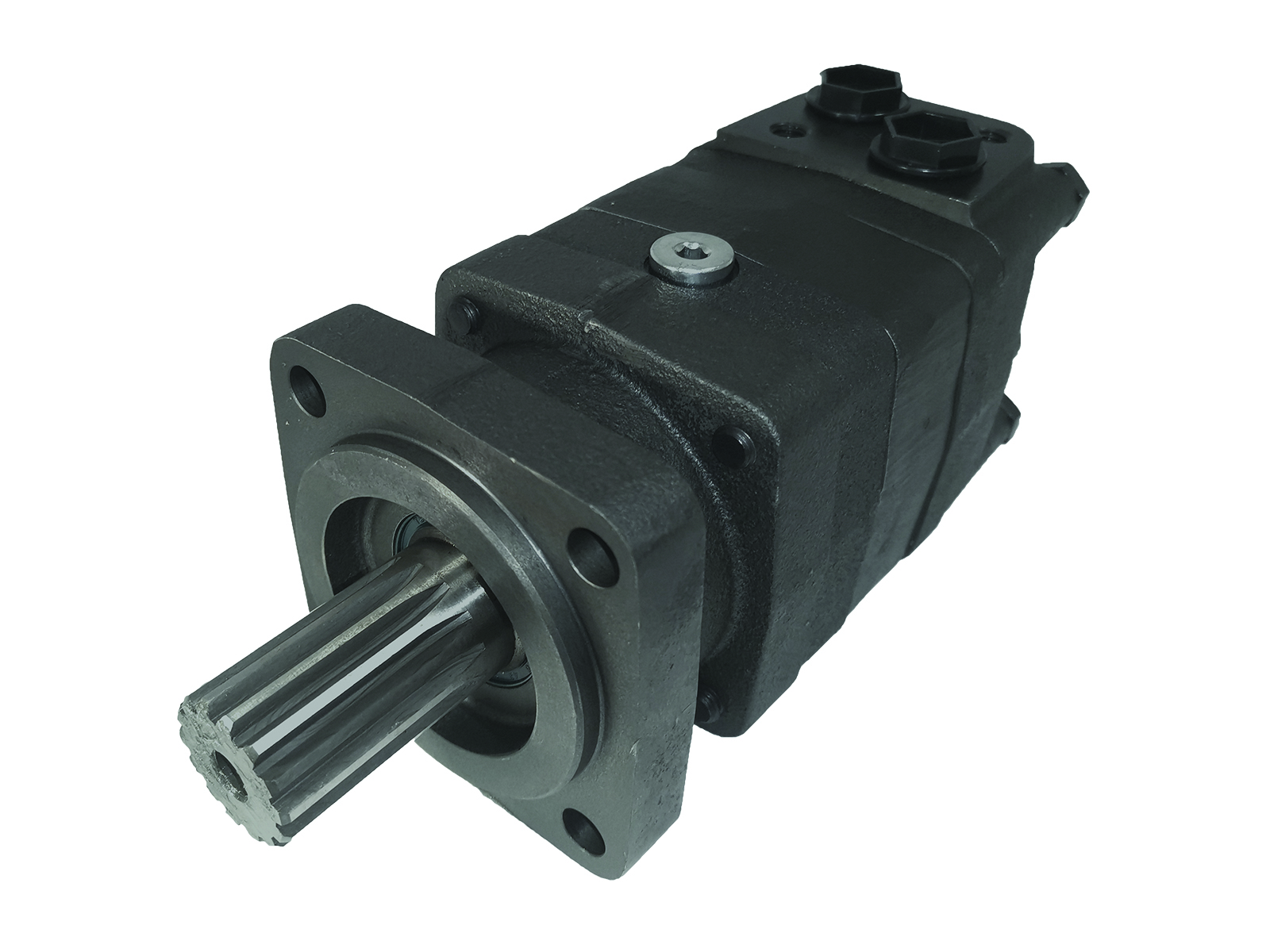

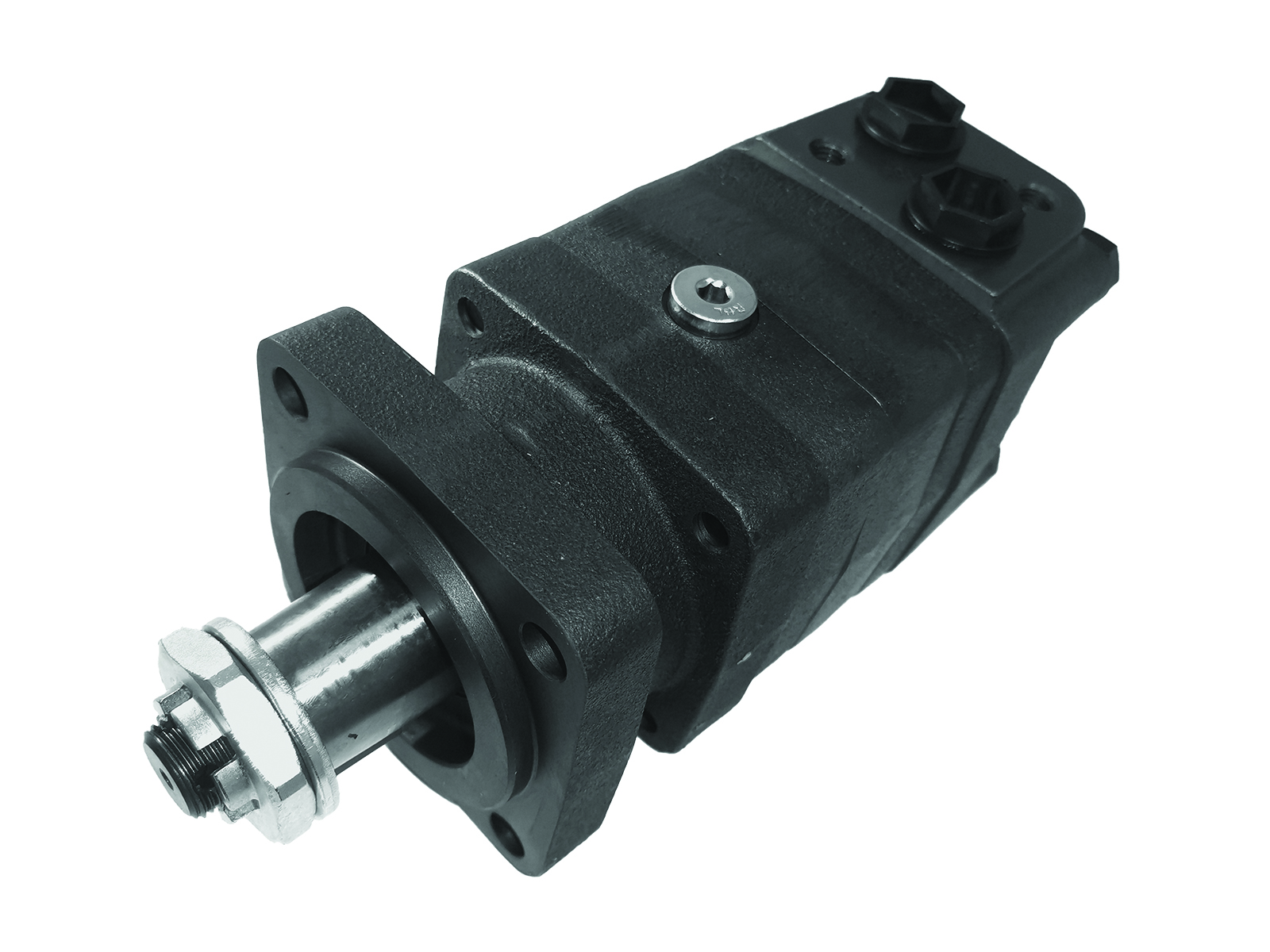

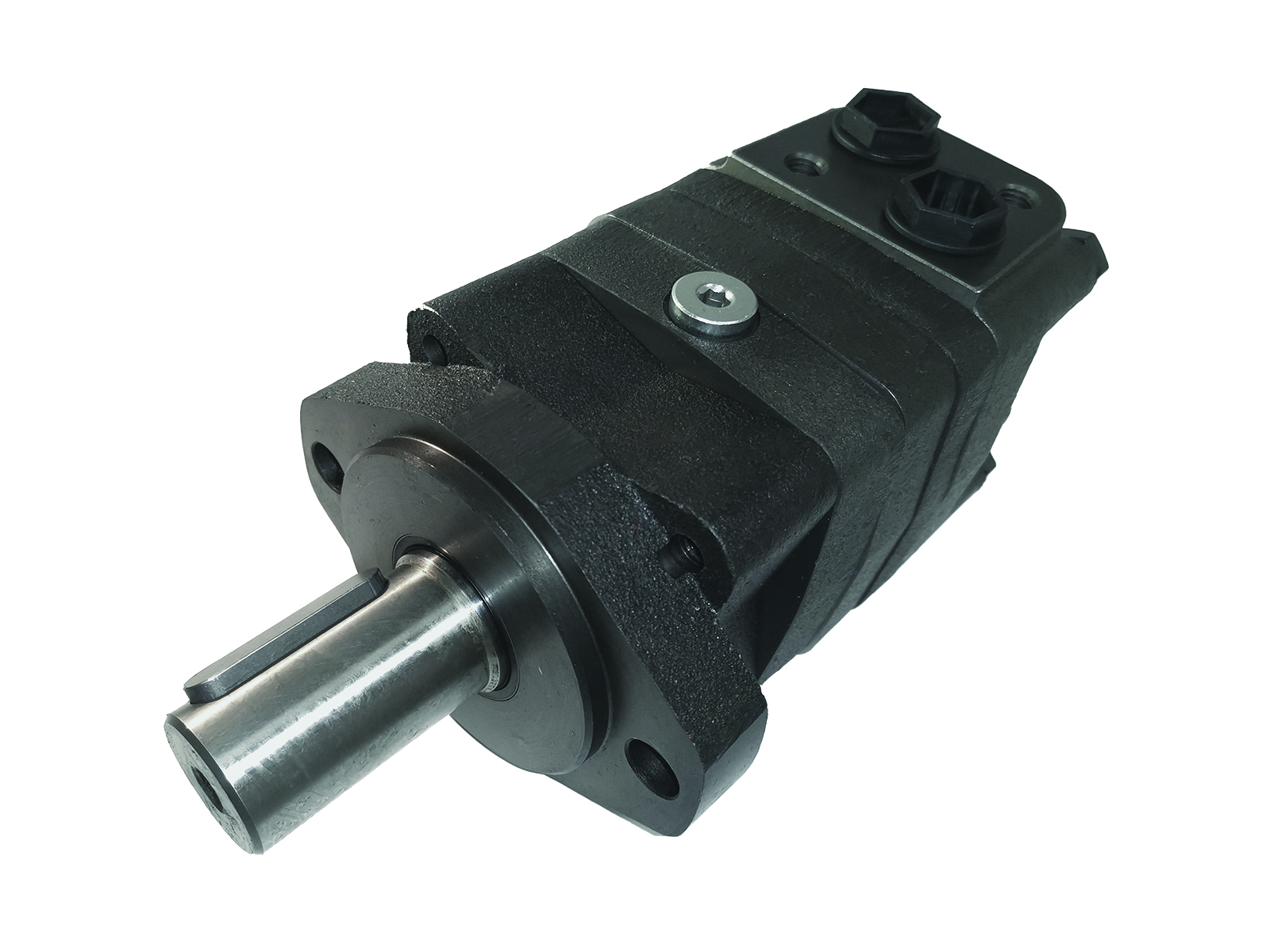

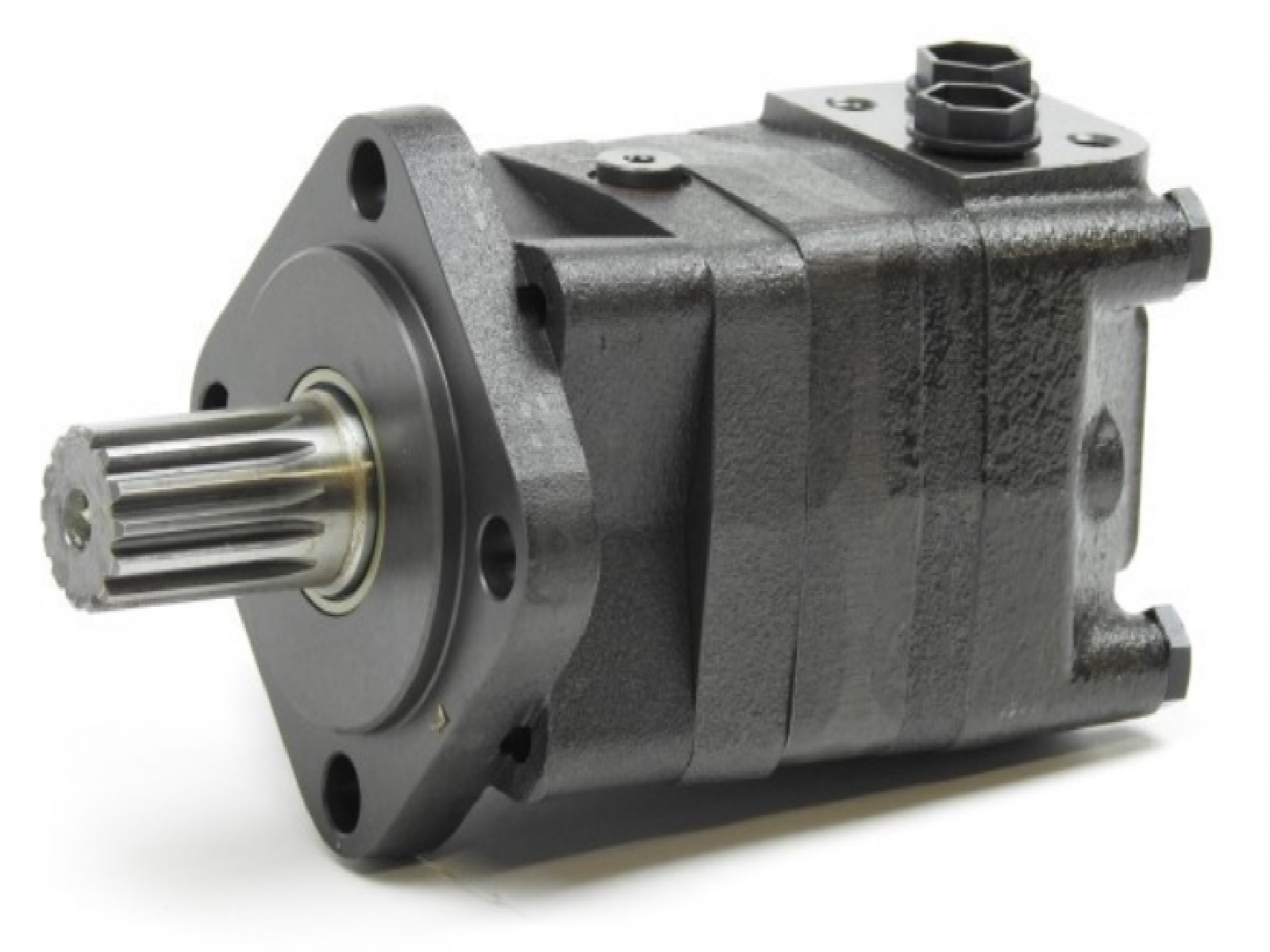

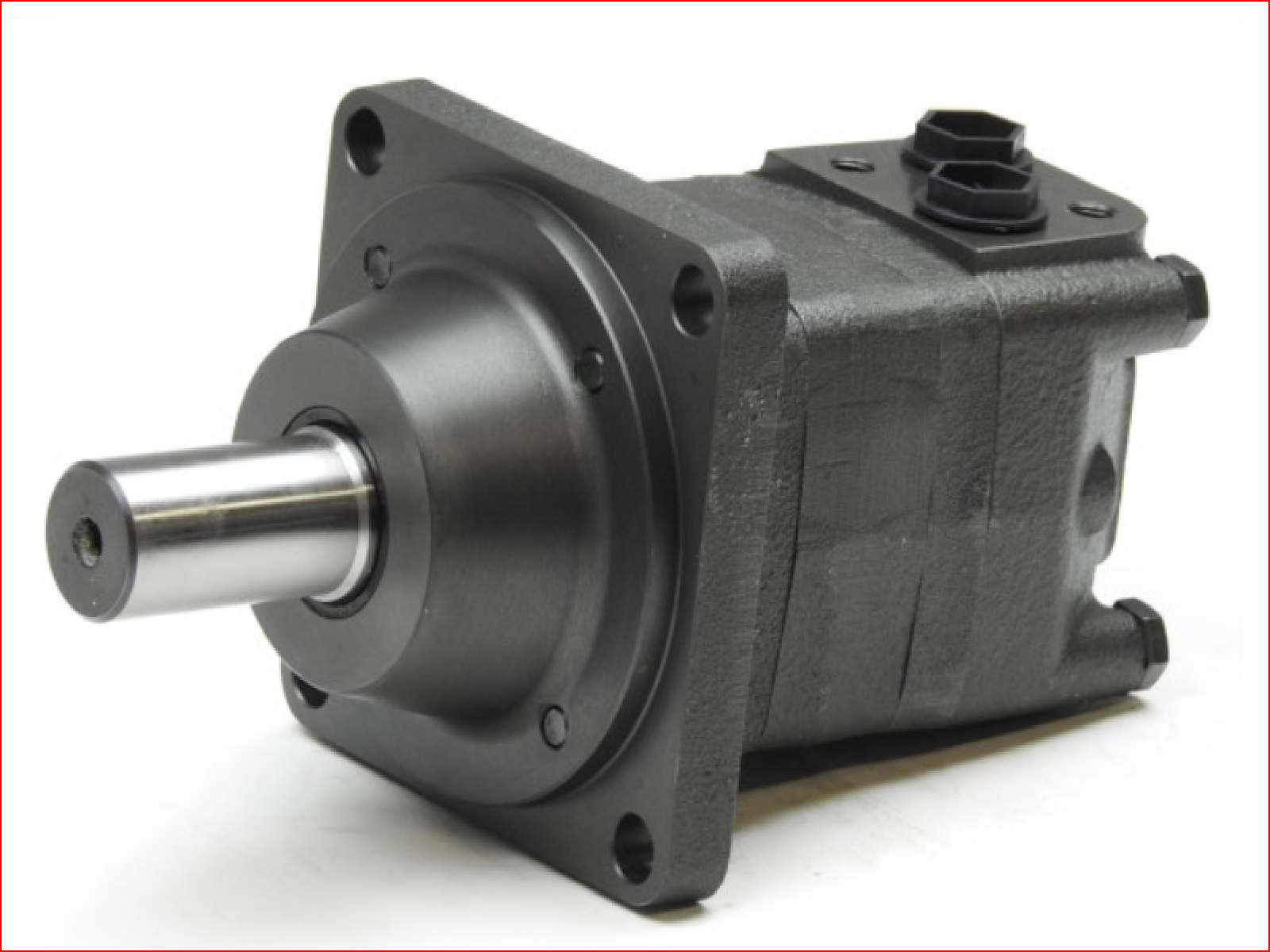

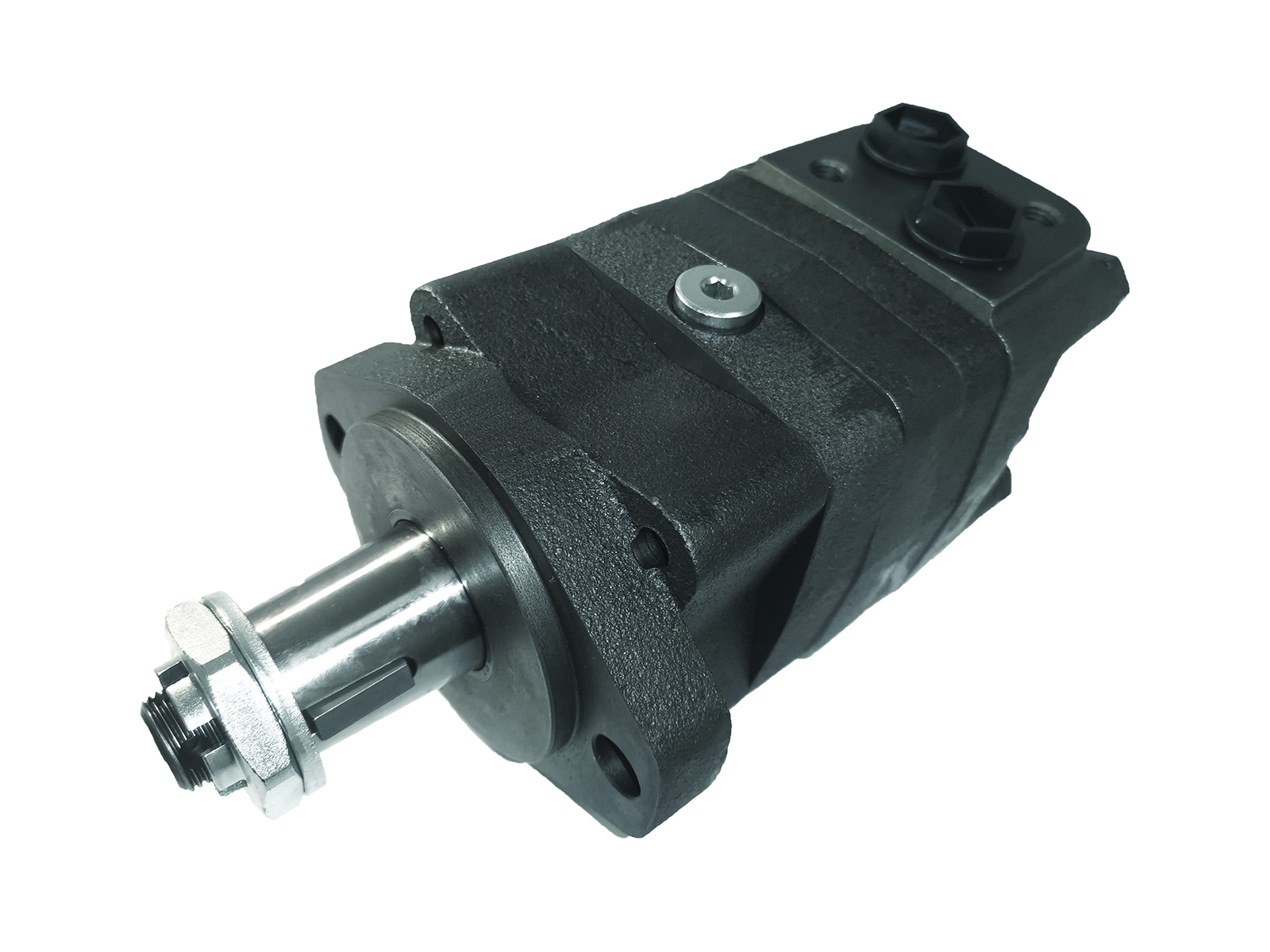

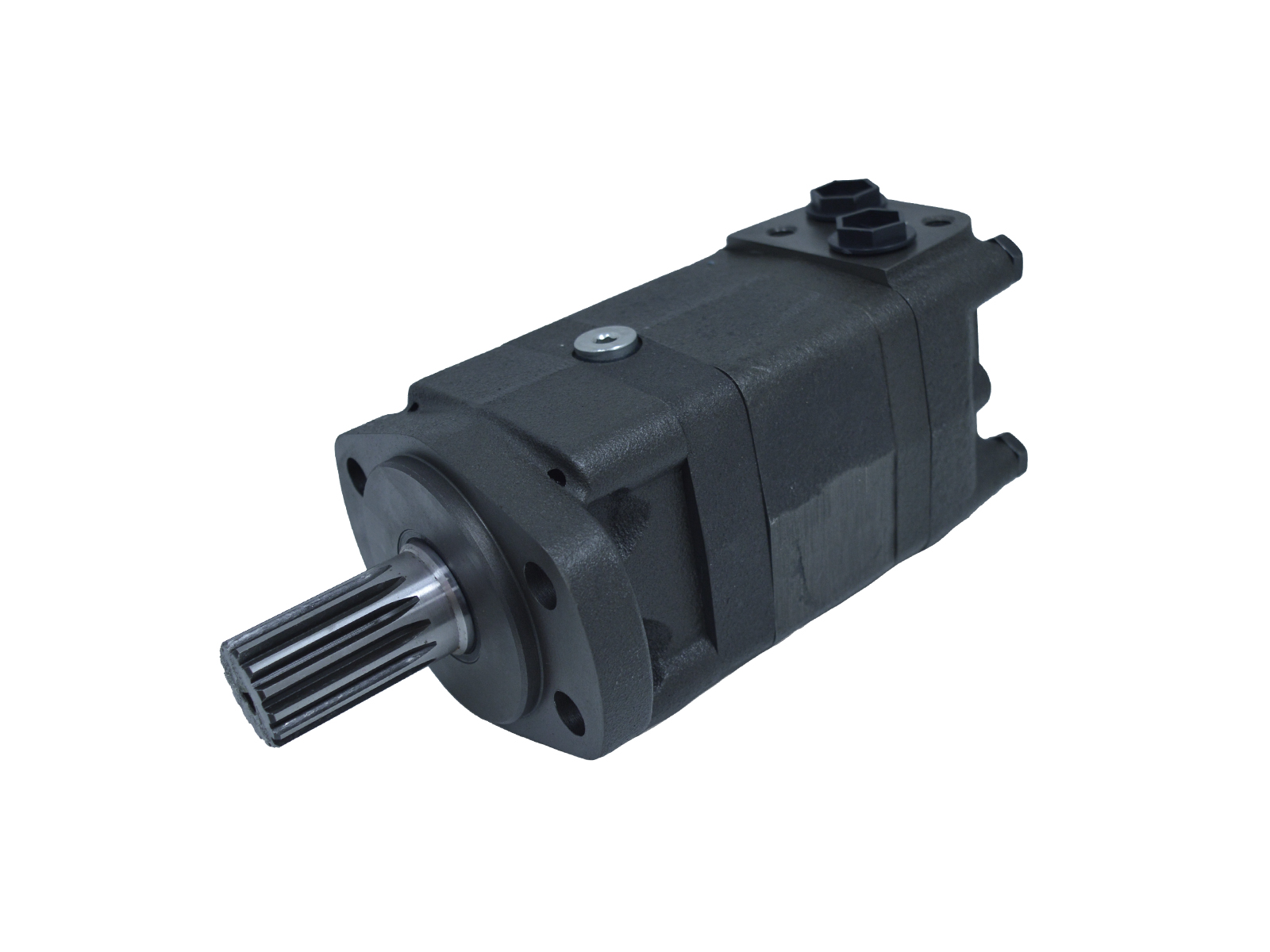

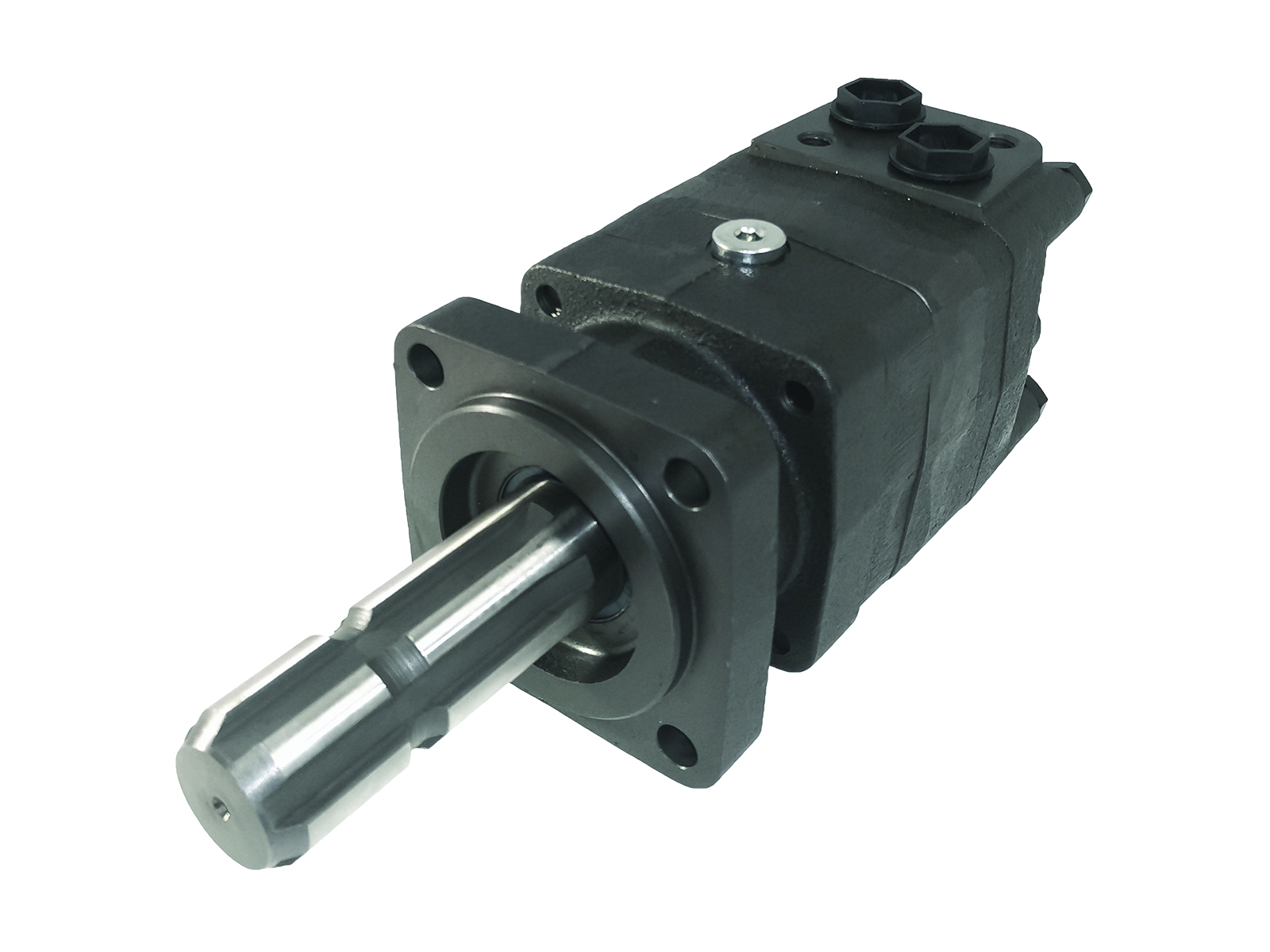

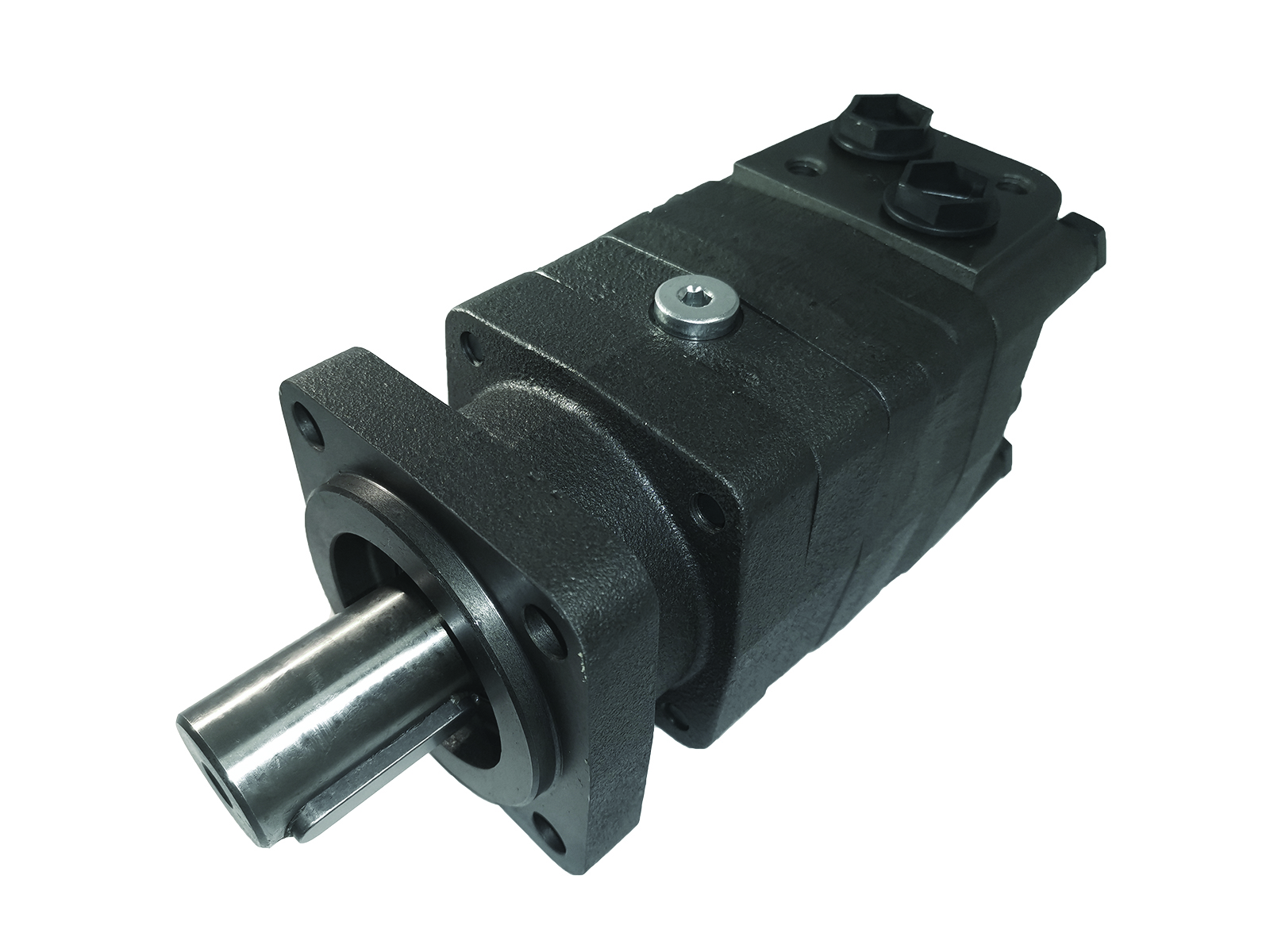

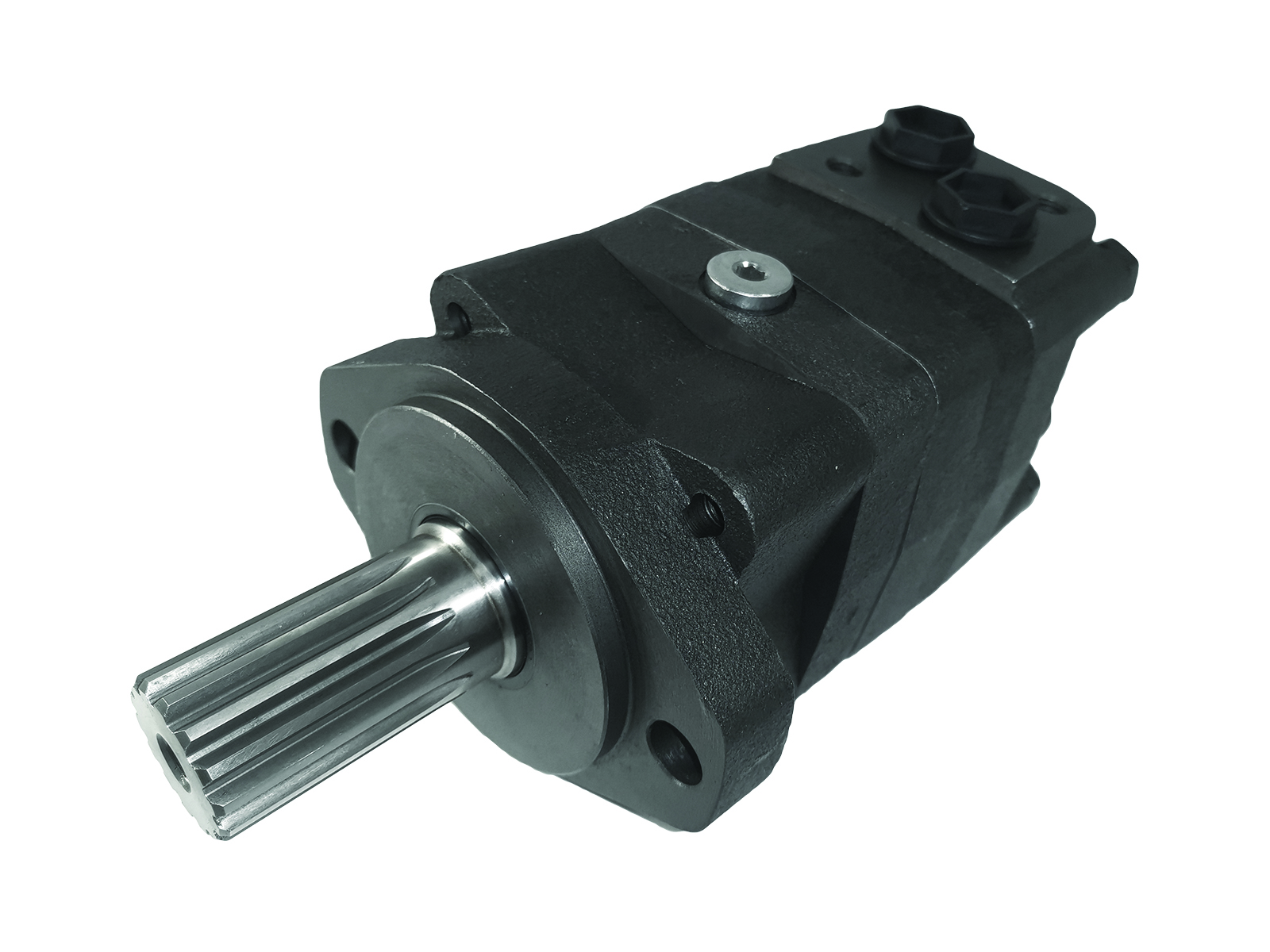

Orbital motors M+S MSY series

SELECT VARIANT

Partnumber	Description	Displacement	Shaft diameter	Shaft type	Continuous power max.
MSY200SH	Hydraulimoottori, 200cm3/r SAE A-4	200 cm3	31,75 mm	Spline	18.1 kW
MSY250K	Hydraulimoottori 250cm³/r	250 cm3	35 mm	Tapered	18 kW
MSY250SH	MSY250SH	250 cm3	31,75 mm	Spline	18 kW
MSY315K	Hydraulimoottori 314,9cm³/r	314.9 cm3	35 mm	Tapered	17 kW
MSY400KLL	MSY400KLL	397 cm3	35 mm	Tapered	11 kW
MSYA200C/3	MSYA200C/3	200 cm3	32 mm	Cylindrical	18.1 kW
MSYA200K/3	MSYA200K/3	200 cm3	35 mm	Tapered	18.1 kW
MSYA200SH	Hydraulimoottori 200cm³/r	200 cm3	31,75 mm	Spline	18.1 kW
MSYF250CA	MSYF250CA	250 cm3	25 mm	Cylindrical	18 kW
MSYF250K	MSYF250K	250 cm3	35 mm	Tapered	18 kW
MSYF315CA	MSYF315CA	314.9 cm3	25 mm	Cylindrical	17 kW
MSYFE400C-CRS	MSYFE400C-CRS	397 cm3	32 mm	Cylindrical	11 kW
MSYQ200CO/3	MSYQ200CO/3	200 cm3	31,75 mm	Cylindrical	18.1 kW
MSYQ200K/3	MSYQ200K/3	200 cm3	35 mm	Tapered	18.1 kW
MSYQ200SH/3	MSYQ200SH/3	200 cm3	31,75 mm	Spline	18.1 kW
MSYQ250C	MSYQ250C	250 cm3	32 mm	Cylindrical	18 kW
MSYQ250SH/3	MSYQ250SH/3	250 cm3	31,75 mm	Spline	18 kW
MSYW200CULSVPC	Motor M+S 200cc 32mm Wheelmount HP. Lowspeed vent	200 cm3	32 mm	Cylindrical	18.1 kW
MSYW200KULSVPC	Motor M+S 200cc, kon 1:10, Wheelmount, U-tätn. Lowspeed vent	200 cm3	35 mm	Tapered	18.1 kW
MSYW250C	MSYW250C	250 cm3	32 mm	Cylindrical	18 kW
MSYW250CU	MSYW250CU	250 cm3	32 mm	Cylindrical	18 kW
MSYW250KULLP	MSYW250KULLP	250 cm3	35 mm	Tapered	18 kW
MSYW315C	MSYW315C	314.9 cm3	32 mm	Tapered	17 kW
MSYW400CLL	Hydraulimoottori 397cm³/r	397 cm3	32 mm	Cylindrical	11 kW
MSYW400KLL	Hydraulimoottori 397cm³/r	397 cm3	35 mm	Tapered	11 kW
MSYW400SH	MSYW400SH	397 cm3	31,75 mm	Cylindrical	11 kW

Brand Name

Hydraspecma

Contamination level max.

-/20/16 - ISO 4406

Drainport

G 1/4

Filtration degree

Number of mounting holes

Oil viscocity recommended

20 - 75

Port position

Side

Temperature max.

+82

Temperature min.

-40

Working ports

G 1/2
