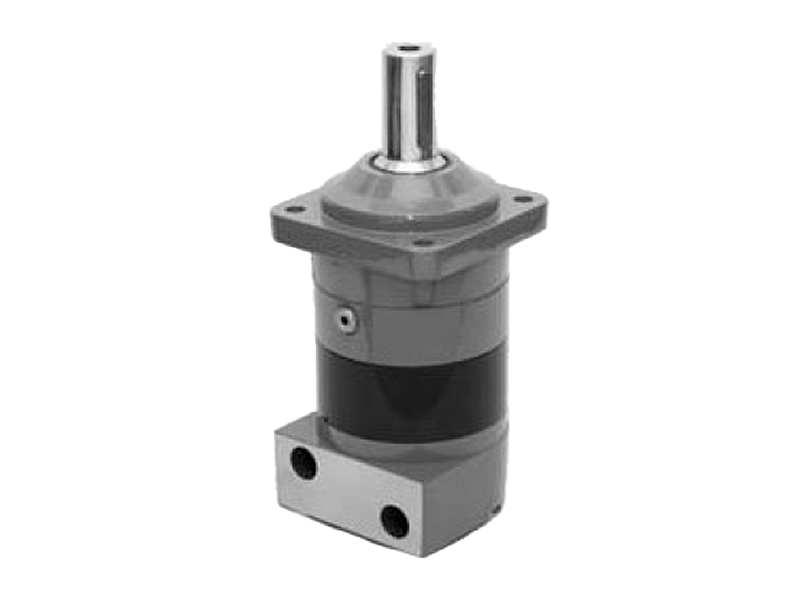

Orbital motors M+S MTM series

Orbital motors M+S MTM series

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Shaft diameter Shaft type Continuous power max.
EPMTMC500CP Motor M+S 500cc cyl40 523.6 cm3 40 mm Cylindrical 37 kW
MTM250CHD Hydraulic motor 251.8cm³/r 251.8 cm3 40 mm Cylindrical 41 kW
MTM315CHD Hydraulic motor 326.3cm³/r 326.3 cm3 40 mm Cylindrical 41 kW
MTM470SHHDFP MTM 470 SH HD FP 475 cm3 38,1 mm Spline 41 kW
MTMC200CP Hydr.moottori 201,4cm3/r 125mm ohj 201.4 cm3 40 mm Cylindrical 41 kW
MTMC315CHDFP MTMC315CHDFP 326.3 cm3 40 mm Cylindrical 41 kW
MTMC400CHDFP MTMC400CHDFP 410.9 cm3 40 mm Cylindrical 41 kW
MTMC500CHDFP MTMC500CHDFP 523.6 cm3 40 mm Cylindrical 37.5 kW
MTMC630CHDFP MTMC630CHDFP 631.2 cm3 40 mm Cylindrical 28 kW
MTMC630CP Hydr.moottori 631,2cm3/r 125mm ohj 631.2 cm3 40 mm Cylindrical 28 kW
MTMW250KHDP MTMW250KHDP 251.8 cm3 45 mm Tapered 41 kW
MTMW250SHHDP MTMW250SHHDP 251.8 cm3 38,1 mm Spline 41 kW
MTMW315CHDP MTMW315CHDP 326.3 cm3 40 mm Cylindrical 41 kW
MTMW400SHHDP Hydraulimoottori 410,9cm³/r 410.9 cm3 38,1 mm Spline 41 kW
Brand Name
Hydraspecma
Contamination level max.
18/16/13 - ISO 4406
Drainport
G 1/4
Filtration degree
25
Number of mounting holes
4
Oil viscocity recommended
20 - 75
Port position
Side
Temperature max.
+82
Temperature min.
-40
Working ports
G 3/4
