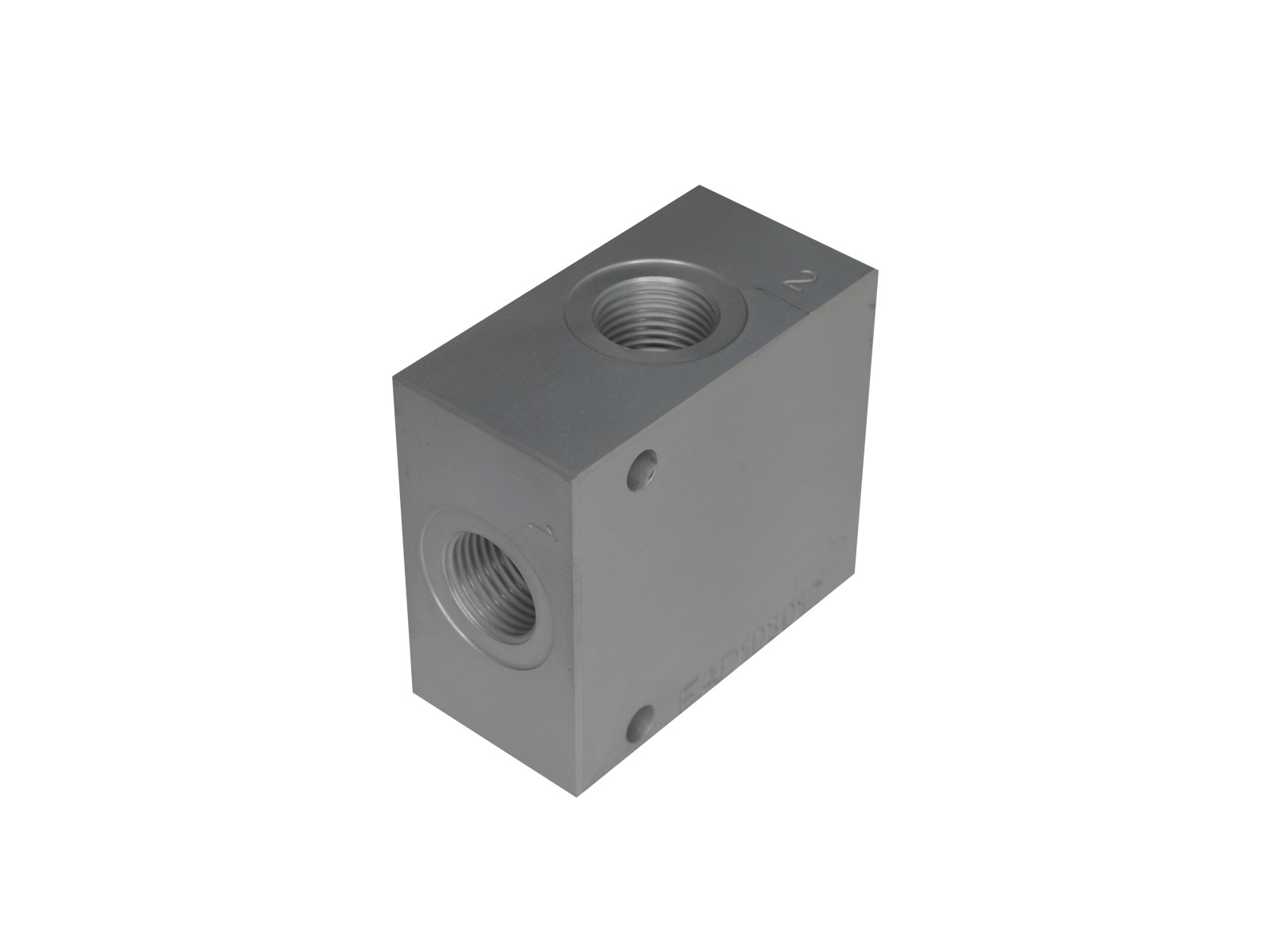

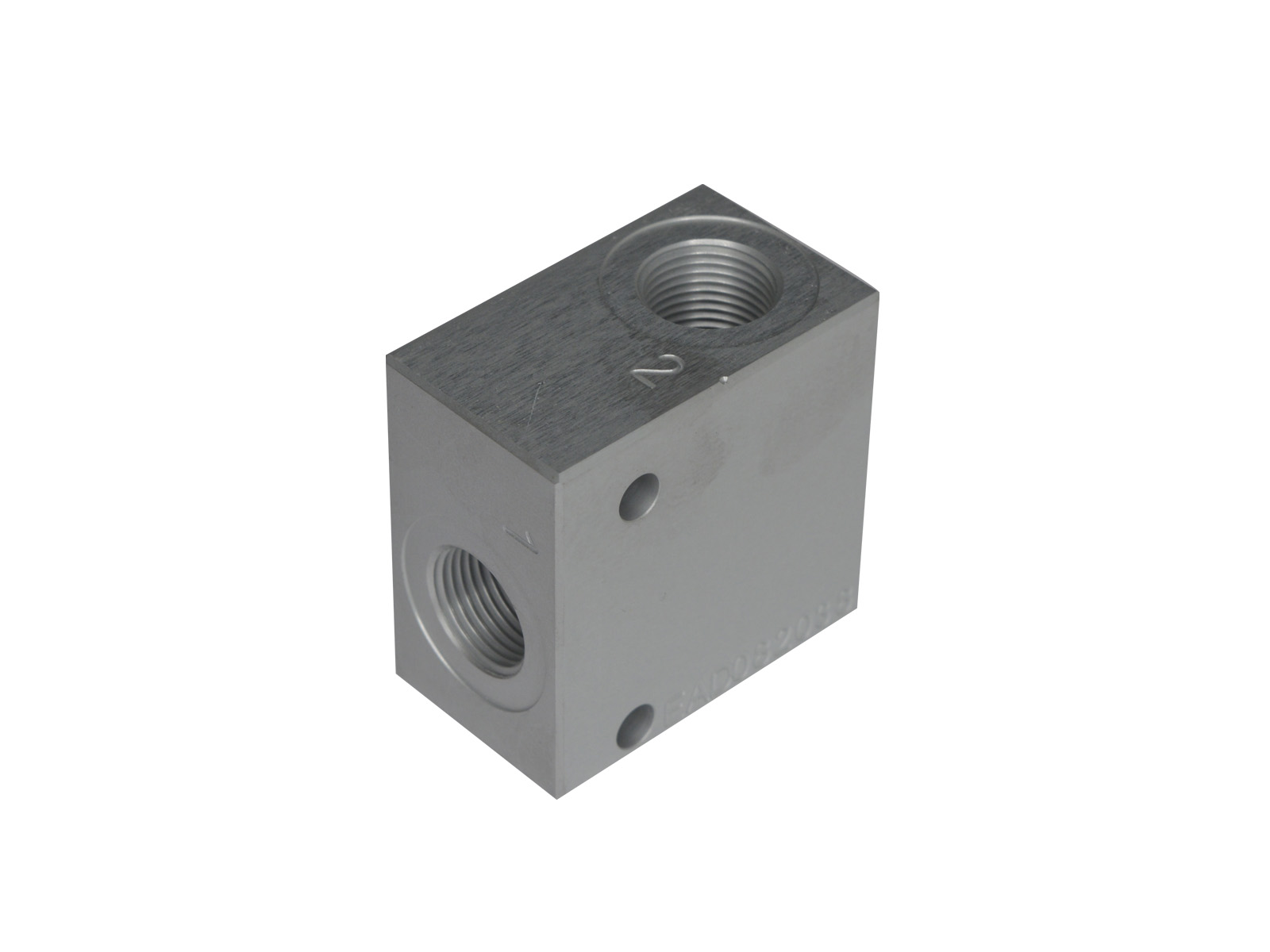

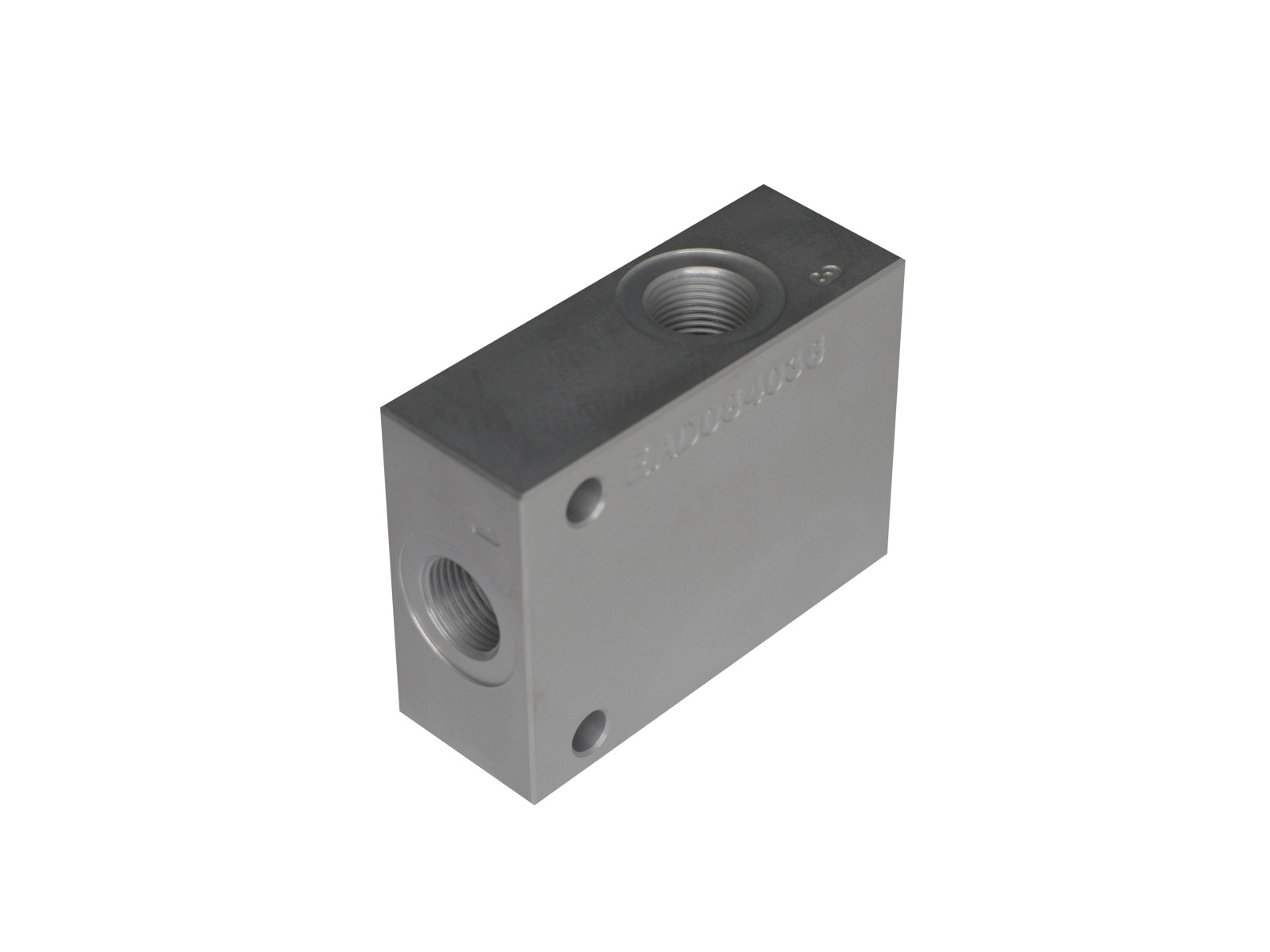

Valve blocks Eurofluid

Runko Al C-8-2, SDC8-2, R3/8"

Runko Al C-8-3, SDC8-3, R3/8"

Runko Al C-8-4, SDC8-4, R3/8"

Runko Al C-10-2, SDC10-2, R1/2"

Runko Al C-10-3, SDC10-3, R1/2"

Runko Al C-10-4, SDC10-4, R1/2"

SELECT VARIANT

Partnumber	Description	Thread	Pressure max.	Cavity	Number of ways
EAD082038	Runko Al C-8-2, SDC8-2, R3/8"	G 3/8 BSP	210 bar	SAE08/2	2
EAD083038	Runko Al C-8-3, SDC8-3, R3/8"	G 3/8 BSP	210 bar	SAE08/3	3
EAD084038	Runko Al C-8-4, SDC8-4, R3/8"	G 3/8 BSP	210 bar	SAE08/4	4
EAD102012	Runko Al C-10-2, SDC10-2, R1/2"	G 1/2 BSP	210 bar	SAE10/2	2
EAD103012	Runko Al C-10-3, SDC10-3, R1/2"	G 1/2 BSP	210 bar	SAE10/3	3
EAD104012	Runko Al C-10-4, SDC10-4, R1/2"	G 1/2 BSP	210 bar	SAE10/4	4

Brand Name

Eurofluid

Material

Aluminium

Material quality

2011-T6

Pressure max.

210

Surface treatment

Anodized
