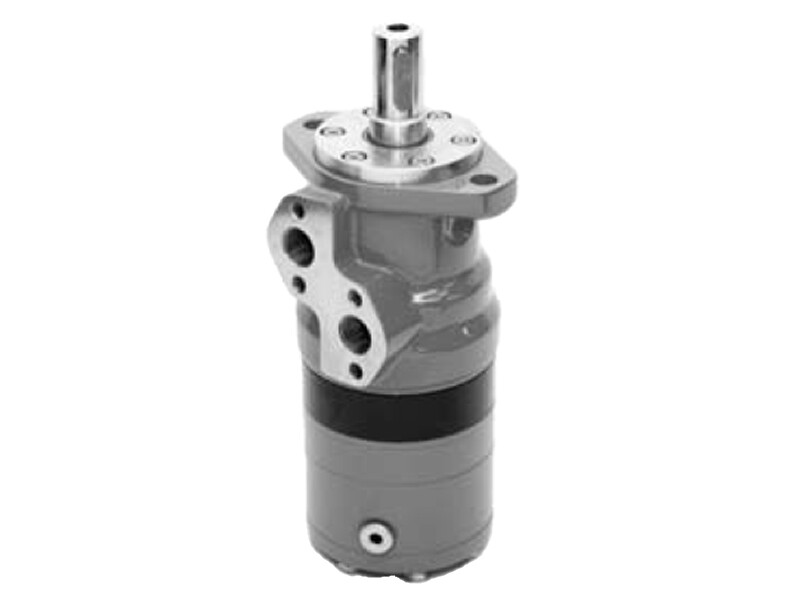

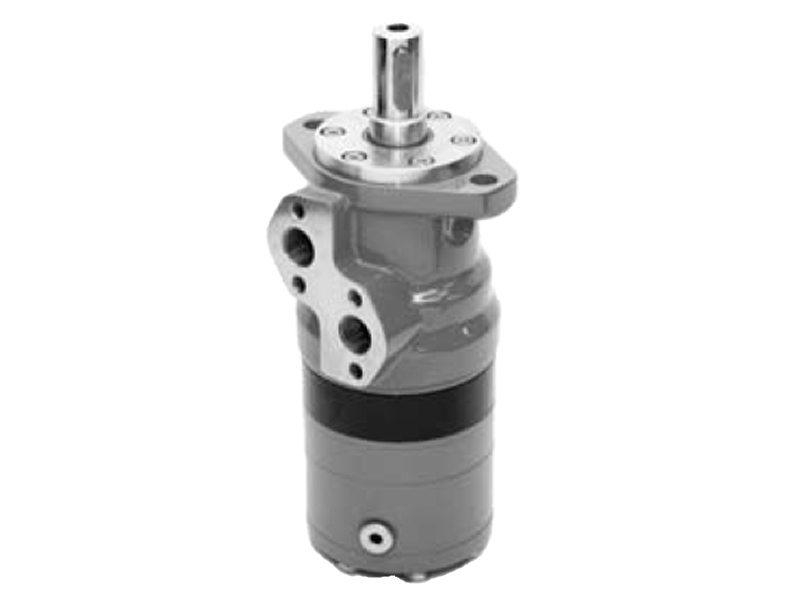

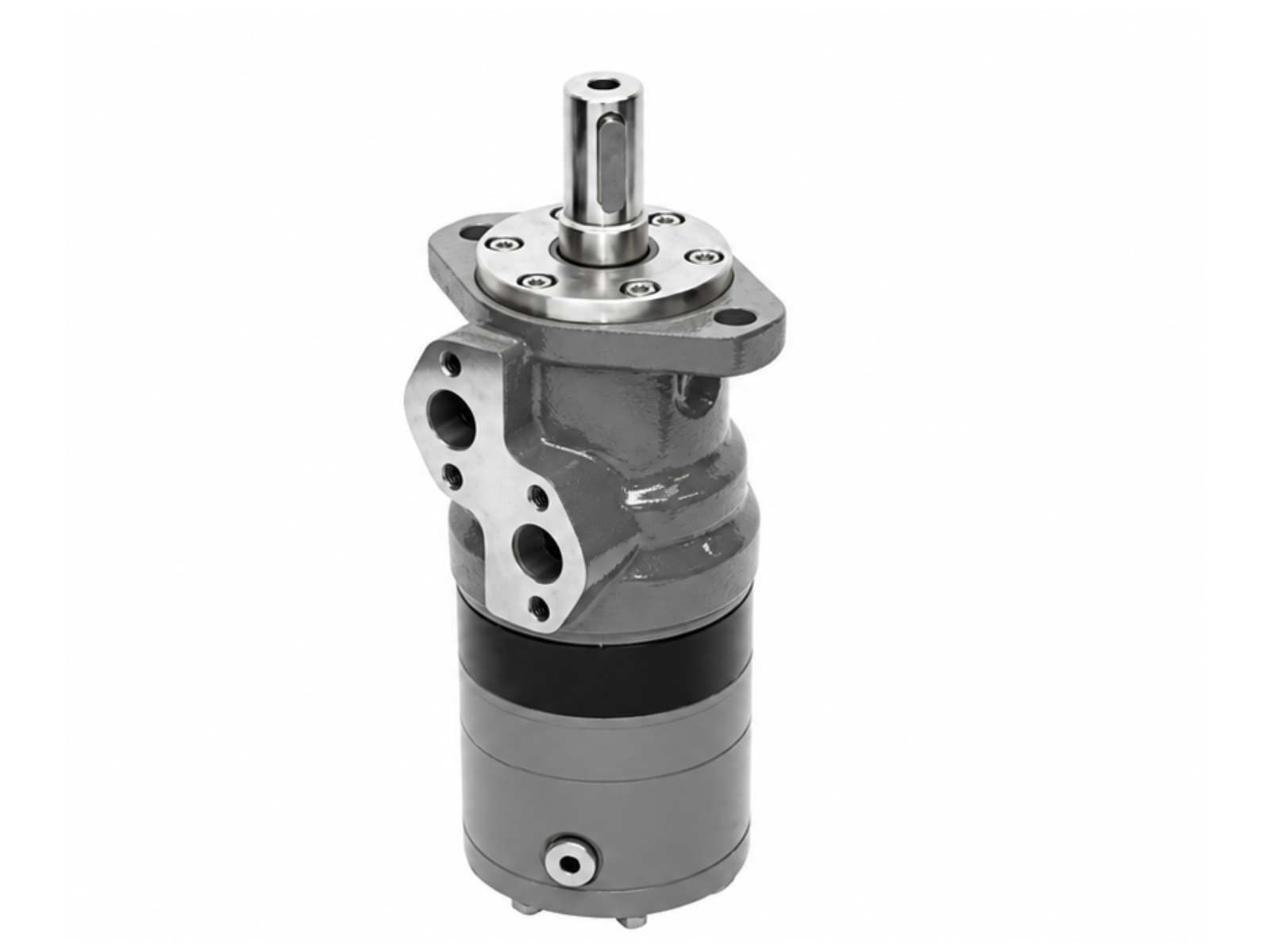

Orbital motors M+S B/MR series

Orbital motors M+S B/MR series

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Shaft diameter Shaft type Continuous power max.
B/MR100C B/MR 100C 99.8 cm3 25 mm Cylindrical 10.8 kW
B/MR100CB B/MR 100 CB 99.8 cm3 32 mm Cylindrical 10.8 kW
B/MR100CP Hydraulimoottori 99,8cm3/r SAE A-2 99.8 cm3 25 mm Cylindrical 10.8 kW
B/MR125C B/MR 125 C 125.7 cm3 25 mm Cylindrical 12.5 kW
B/MR160C B/MR 160 C 159.6 cm3 25 mm Cylindrical 10 kW
B/MR200C B/MR 200 C 199.8 cm3 25 mm Cylindrical 7.8 kW
B/MR250C/3 B/MR 250 C/3 250.1 cm3 25 mm Cylindrical 6.8 kW
B/MR315CB Hydraulimoottori 315,7cm3/r SAE A-2 315.7 cm3 32 mm Cylindrical 9 kW
B/MR80C B/MR 80 C 80.3 cm3 25 mm Cylindrical 8.4 kW
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Drainport
G 1/4
Filtration degree
25
Holes circle
106.4
Mounting flange
SAE-A2
Number of mounting holes
2
Oil viscocity recommended
20 - 75
Port position
Side
Recess
82,5
Shaft type
Cylindrical
Temperature max.
+82
Temperature min.
-40
Working ports
G 1/2
