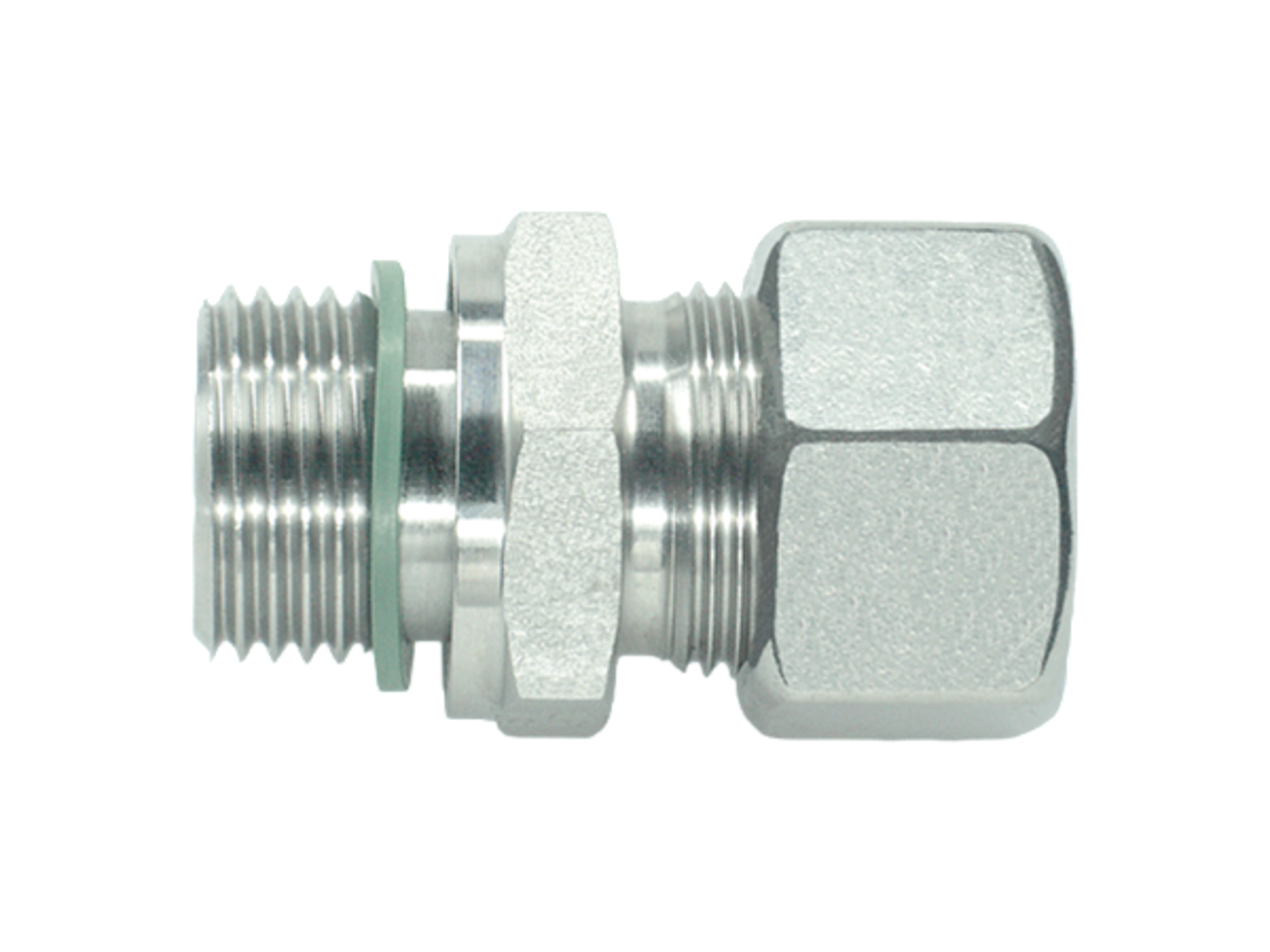

Straight fitting 0° - L-series - DIN male x BSP male stud WD seal stainless complete

Straight fitting 0° - L-series - DIN male x BSP male stud WD seal stainless complete

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Pressure max.
GEV42LR112WD Male stud light serie 42 mm G 1.1/2 BSP 250 bar
HDL-10RED Perusliitin,uk,kevyt,ED-tiiv. 10 mm G 1/4 BSP 500 bar
HDL-12-1/2RED Perusliitin,kevyt 12 mm G 1/2 BSP 400 bar
HDL-12RED Perusliitin,kevyt 12 mm G 3/8 BSP 400 bar
HDL-18-3/8RED Perusliitin,uk,kevyt,ED-tiiv. 18 mm G 3/8 BSP 400 bar
HDL-18RED Perusliitin,uk,kevyt,ED-tiiv. 18 mm G 1/2 BSP 400 bar
HDL-28-3/4RED Perusliitin,uk,kevyt,ED-tiiv. 28 mm G 3/4 BSP 250 bar
HDLL-06-1/8RED Perusliitin,uk erittäin kevyt 6 mm G 1/8 BSP 100 bar
Angle
0
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Safety factor
4
Temperature max.
+200
