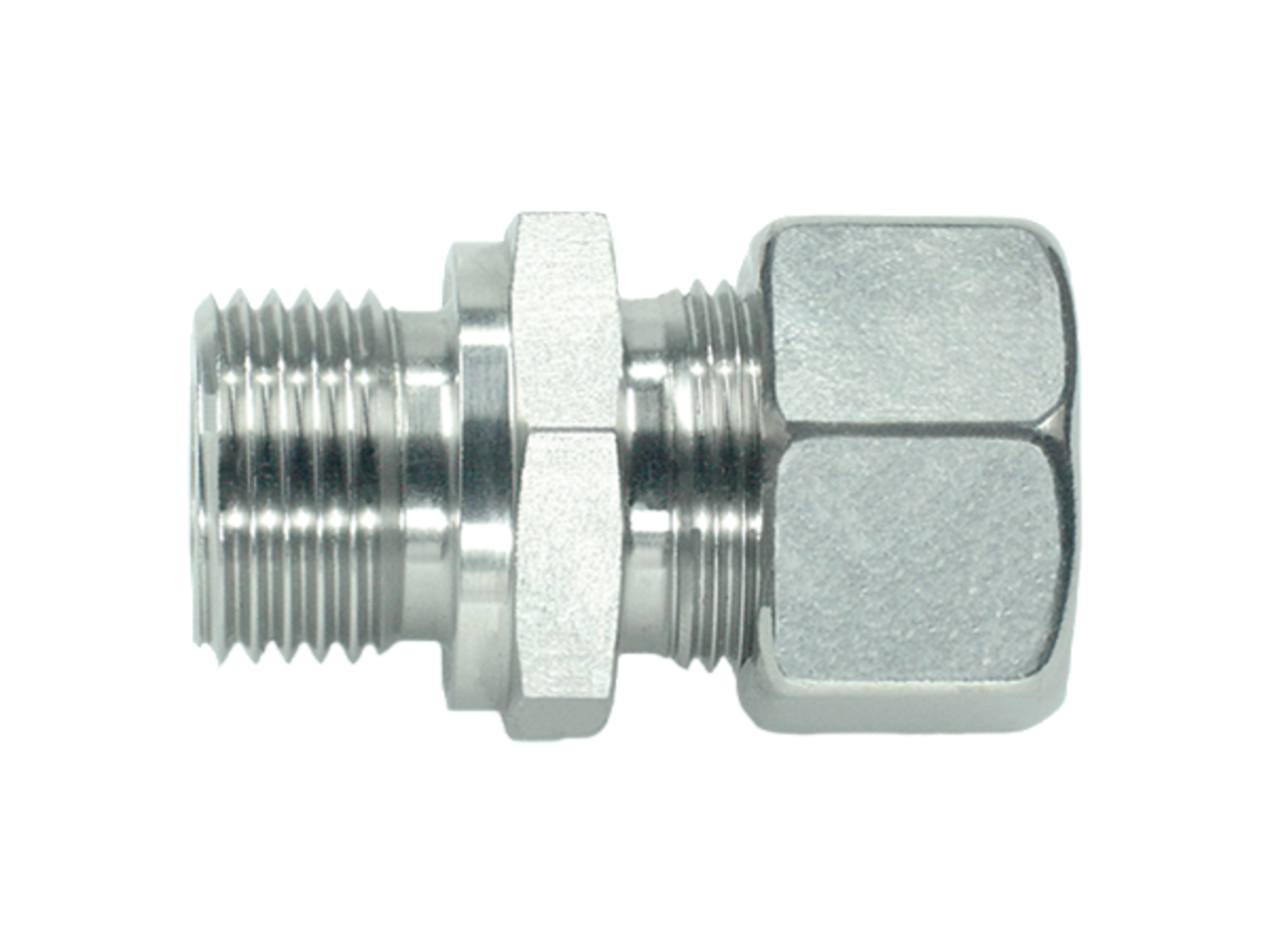

Straight fitting 0° - S-series - DIN male x BSP male stud stainless complete

Straight fitting 0° - S-series - DIN male x BSP male stud stainless complete

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Pressure max.
HDS-06 Perusliitin,raskas 6 mm G 1/4 BSP 630 bar
HDS-08 Perusliitin,raskas 8 mm G 1/4 BSP 630 bar
HDS-10 Perusliitin,raskas 10 mm G 3/8 BSP 630 bar
HDS-10-1/2R Perusliitin,raskas 10 mm G 1/2 BSP 630 bar
HDS-12 Perusliitin,raskas 12 mm G 3/8 BSP 630 bar
HDS-16 Perusliitin,raskas 16 mm G 1/2 BSP 400 bar
HDS-20 Perusliitin,raskas 20 mm G 3/4 BSP 400 bar
HDS-25 Perusliitin,raskas 25 mm G 1 BSP 400 bar
HDS-25-1/2R Perusliitin,raskas 25 mm G 1/2 BSP 400 bar
Angle
0
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
S
Temperature max.
+400
Temperature min.
-60
