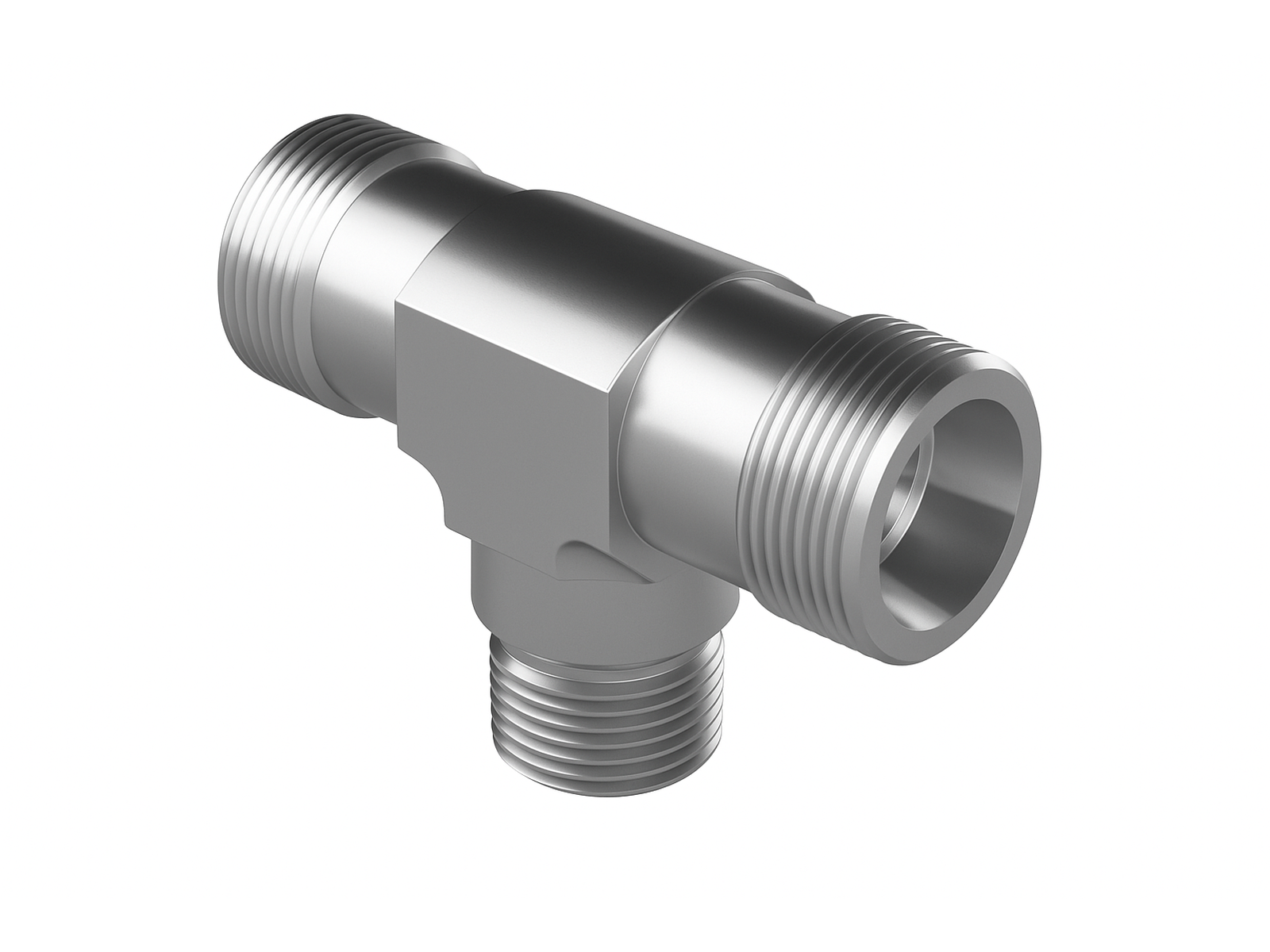

T-fitting reduction - L-series - Male x Male x Male stainless

T-fitting reduction - L-series - Male x Male x Male stainless

T-fitting reduction - L-series - Male x Male x Male stainless

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Pressure max. Thread outer metric Brand Name
HQL-10-12-10X T-liitin, kevyt, runko 10-12-10 mm 400 bar M16x1,5, M18x1,5 PH Industrie-Hydraulik
HQL-12-15-12X T-liitin, kevyt, runko 12 - 15 - 12 mm 400 bar M18x1,5, M22x1,5 PH Industrie-Hydraulik
HQL-18-10-18X T-liitin, kevyt, runko 18-10-18 mm 400 bar M16x1,5, M26x1,5 PH Industrie-Hydraulik
HQL-18-12-18X T-liitin, kevyt, runko 18-12-18 mm 400 bar M18x1,5, M26x1,5 PH Industrie-Hydraulik
HQL-28-18-28X T-liitin, kevyt, runko 28-18-28 mm 250 bar M26x1,5, M36x2 PH Industrie-Hydraulik
XTRV221822L T-liitin kevyt runko 22-18-22 mm 250 bar Volz
XTRV282228L Tee fitting - ø28L x ø22L x ø28L - AISI316 28-22-28 mm 250 bar Volz
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Safety factor
4
Series
L
Temperature max.
+400
Temperature min.
-60

T-fitting reduction - L-series - Male x Male x Male stainless
