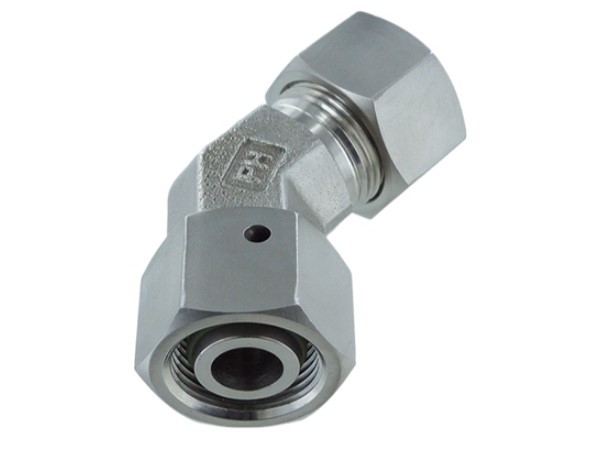

Elbow fitting 45° - L-series - MM male 24° x MM union nut stainless

Elbow fitting 45° - L-series - MM male 24° x MM union nut stainless

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread inner metric Thread outer metric Pressure max.
HEV-06DKOLX Adjustable stud elbow 45° 6 mm M12x1,5 MM M12x1,5 500 bar
HEV-12DKOLX XEV12L-SY 12 mm M18x1,5 MM M18x1,5 400 bar
HEV-15DKOLX Kulmaliitin 45°,suunn.,runko,DKO 15 mm M22x1,5 MM M22x1,5 400 bar
HEV-18DKOLX Kulmaliitin 45°,suunn.,runko,DKO 18 mm M26x1,5 MM M26x1,5 400 bar
HEV-22DKOLX Adapter 45° 22L, Ställbar, O-ringstätad, Syrafast 22 mm M30x2 MM M30x2 250 bar
HEV-28DKOL Adjustable stud elbow 45° DKO 28 mm M36x2 MM M36x2 250 bar
HEV-28DKOLX Adapter 45° 28L, Ställbar, O-ringstätad, Syrafast 28 mm M36x2 MM M36x2 250 bar
HEV-35DKOLX Kulmaliitin 45°,suunn.,runko,DKO 35 mm M45x2 MM M45x2 250 bar
HEV-42DKOL Kulmaliitin 45°,suunn.,DKO 42 mm M52x2 MM M52x2 250 bar
HEV-42DKOLX Kulmaliitin 45°,suunn.,runko,DKO 42 mm M52x2 MM M52x2 250 bar
XEWVD4512L Elbow 45° adjustable - ø12L x ø12L nut - AISI316 M18x1,5 MM M18x1,5 400 bar
XEWVD4528L Adapter 45° 28L, Ställbar, O-ringstätad, Syrafast 28 mm M36x2 MM M36x2 250 bar
XEWVD4542L DIN DKO Elbow 45° 42 mm M52x2 MM M52x2 250 bar
Angle
45
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Series
L
Temperature max.
+200
