NG06 4/2 valves Atos DHL without coil

NG06 4/2 valves Atos DHL without coil

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure T max. Current type Number of ways/positions

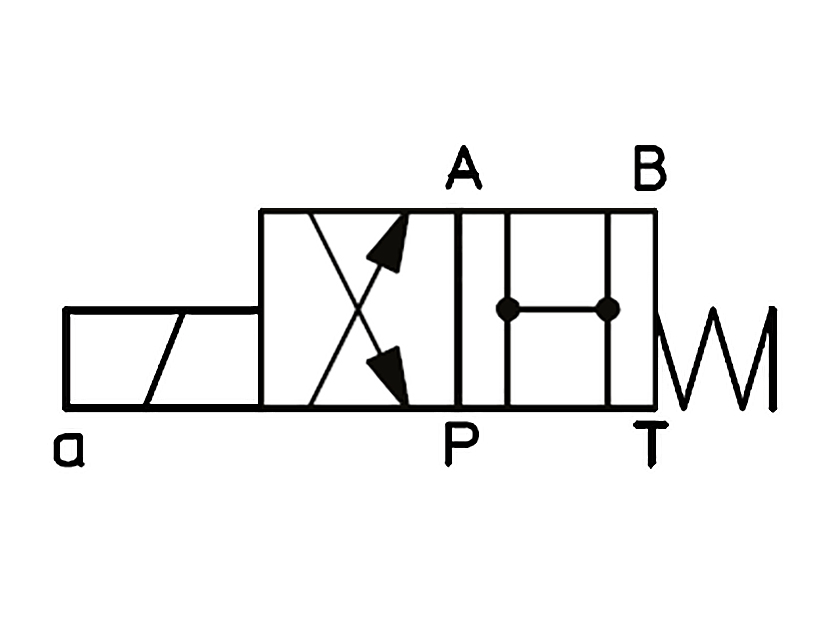

DHL-0610-00-AC 4/2-suuntaventtiili NS6 160 bar AC 4/2

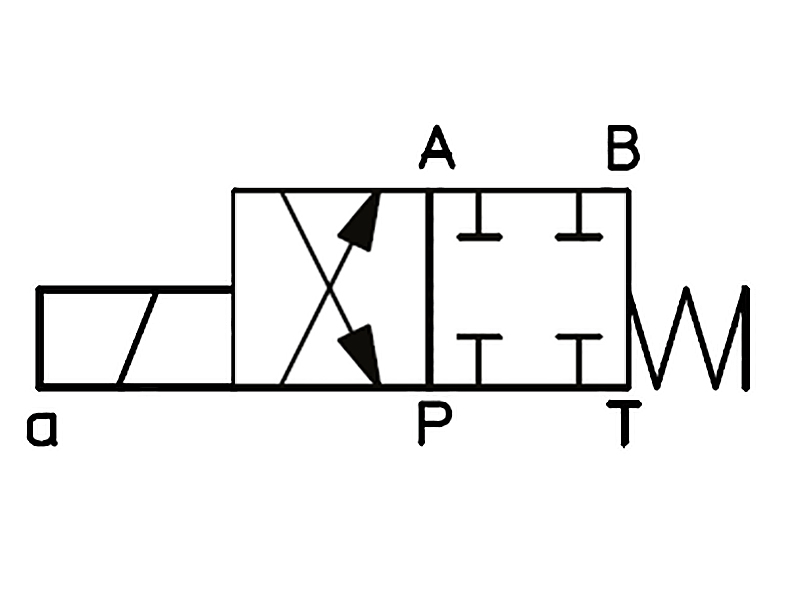

DHL-0611-00-AC 4/2-suuntaventtiili NS6 160 bar AC 4/2

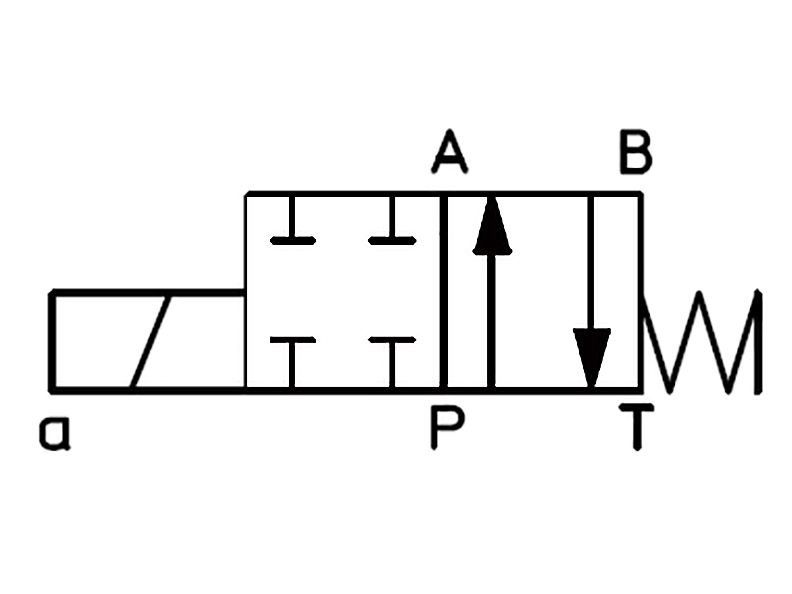

DHL-0614-00-AC 4/2-suuntaventtiili NS6 160 bar AC 4/2

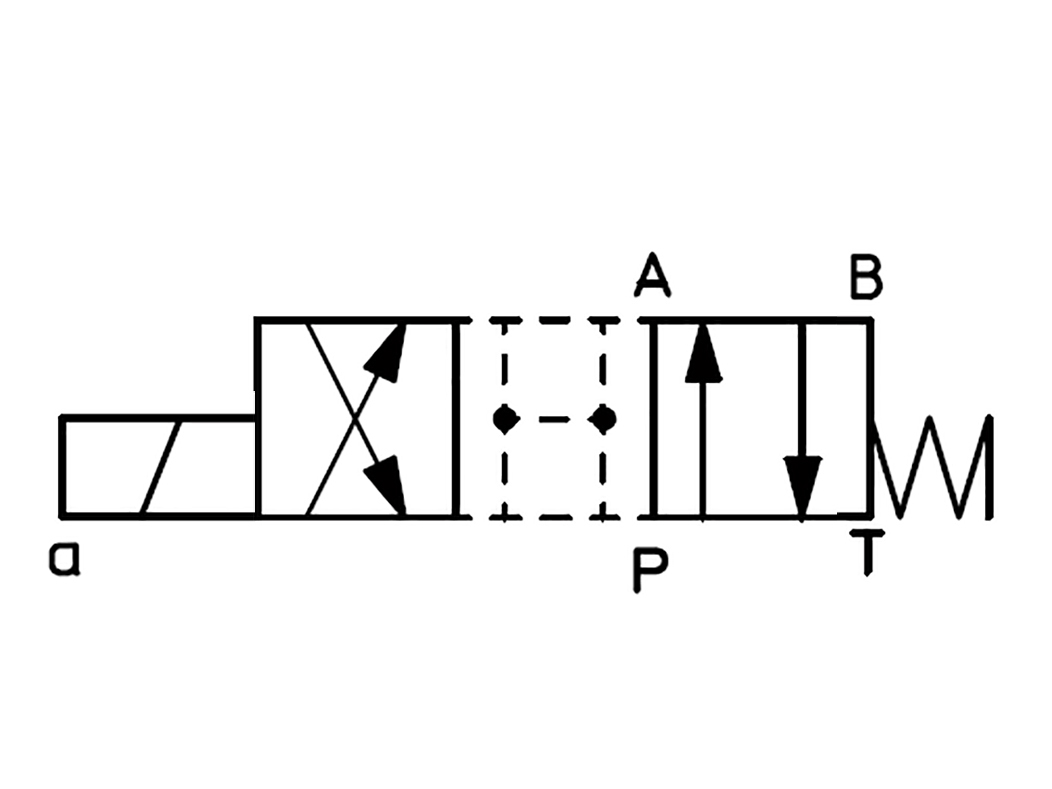

DHL-0630/2-00-AC 4/2-suuntaventtiili NS6 160 bar AC 4/2

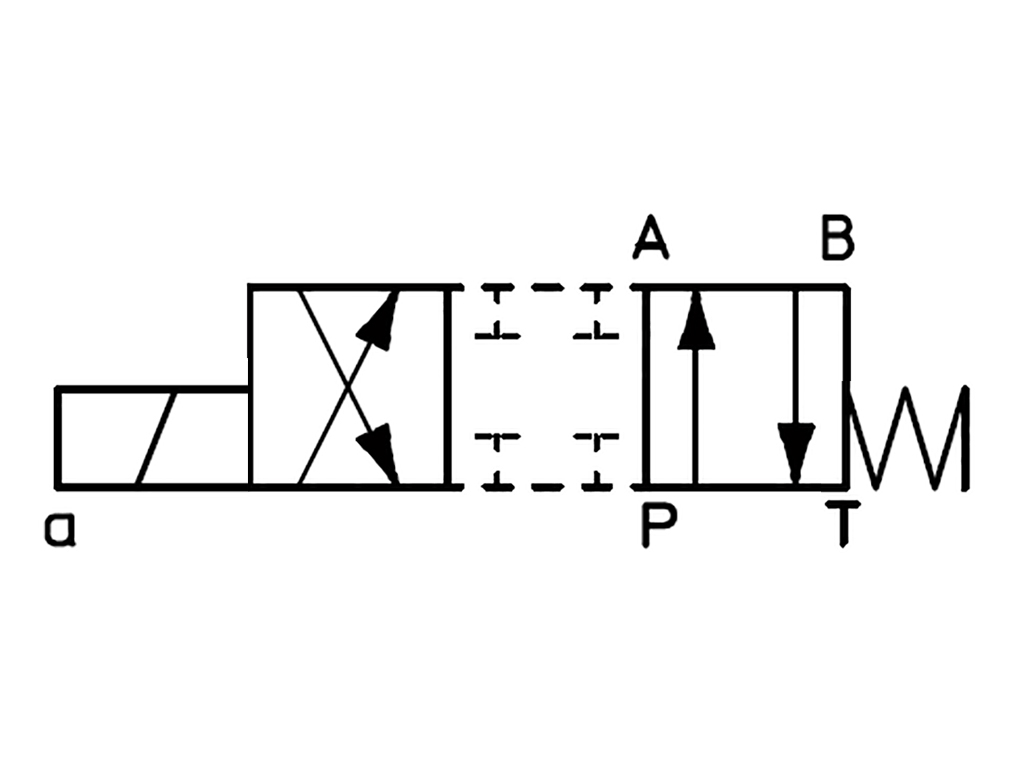

DHL-0631/2-00-AC 4/2-suuntaventtiili NS6 160 bar AC 4/2

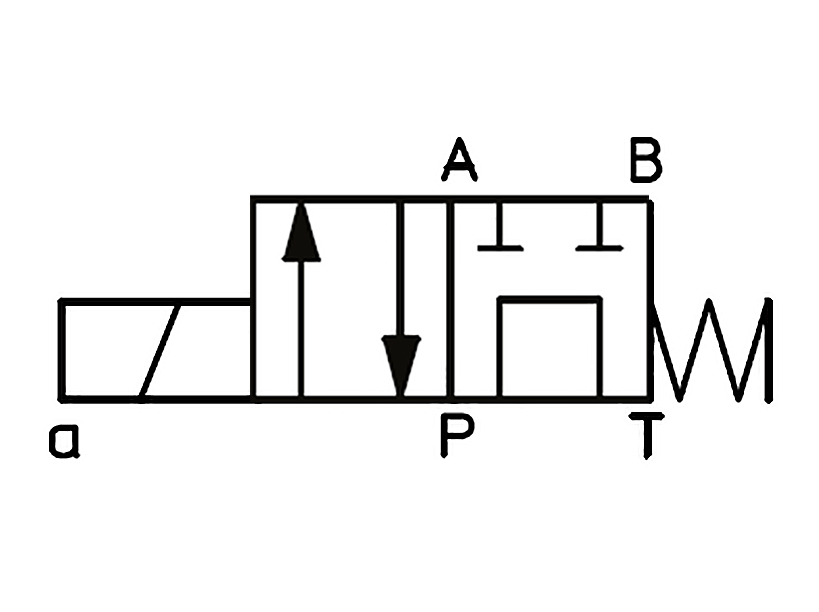

DHL-0671-00-AC 4/2-suuntaventtiili NS6 160 bar AC 4/2
Activation
Manual emergency override, Solenoid
Brand Name
Atos
Contamination level max.
20/18/15 - ISO 4406
Corrosion resistance
200 hours salt spray DIN EN ISO 9227
Current type
AC
Insulation class
F
NG ISO-size
NG06
Number of ways/positions
4/2
Oil viscocity recommended
15 - 100
Pressure T max.
160
Pressure max.
350
Protection class
IP 65
Sealing material
NBR
Surface treatment
Passivated, Zinc coating (CR III)
Temperature max.
+70
Temperature min.
-30
Torque tightening
8
