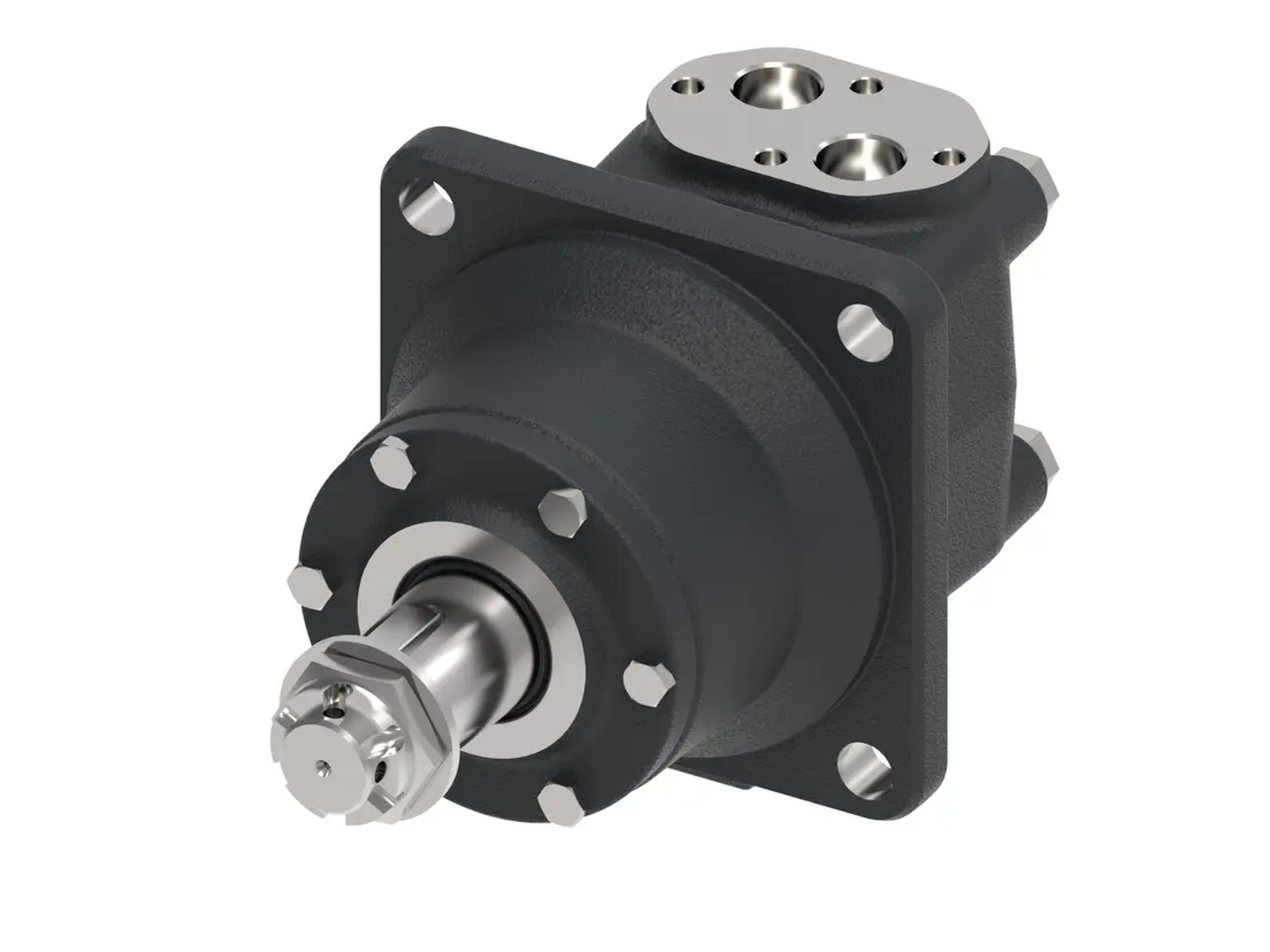

Orbital motors Danfoss OMTW tapered shaft

OMTW 160 HYDRAULIC MOTOR

OMTW 200 HYDRAULIC MOTOR

OMTW 315 HYDRAULIC MOTOR

OMTW 400 HYDRAULIC MOTOR

OMTW 500 HYDRAULIC MOTOR

SELECT VARIANT

Partnumber	Description	Displacement	Shaft diameter	Shaft type	Continuous power max.
151B3030	OMTW 160 HYDRAULIC MOTOR	161.1 cm3	45 mm	Tapered	26.5 kW
151B3031	OMTW 200 HYDRAULIC MOTOR	201.4 cm3	45 mm	Tapered	33.5 kW
151B3033	OMTW 315 HYDRAULIC MOTOR	326.3 cm3	45 mm	Tapered	33.5 kW
151B3034	OMTW 400 HYDRAULIC MOTOR	410.9 cm3	45 mm	Tapered	30 kW
151B3035	OMTW 500 HYDRAULIC MOTOR	523.6 cm3	45 mm	Tapered	26.5 kW

Brand Name

Danfoss

Contamination level max.

22/20/16 - ISO 4406

Drainport

G 1/4

Holes circle

200

Mounting flange

Wheel 160

Number of mounting holes

Oil viscocity recommended

20 - 75

Recess

160,0

Shaft cone

1:10

Shaft diameter

Shaft keyway

12,0

Shaft type

Tapered

Temperature ambient max.

+90

Temperature ambient min.

-30

Working ports

G 3/4
