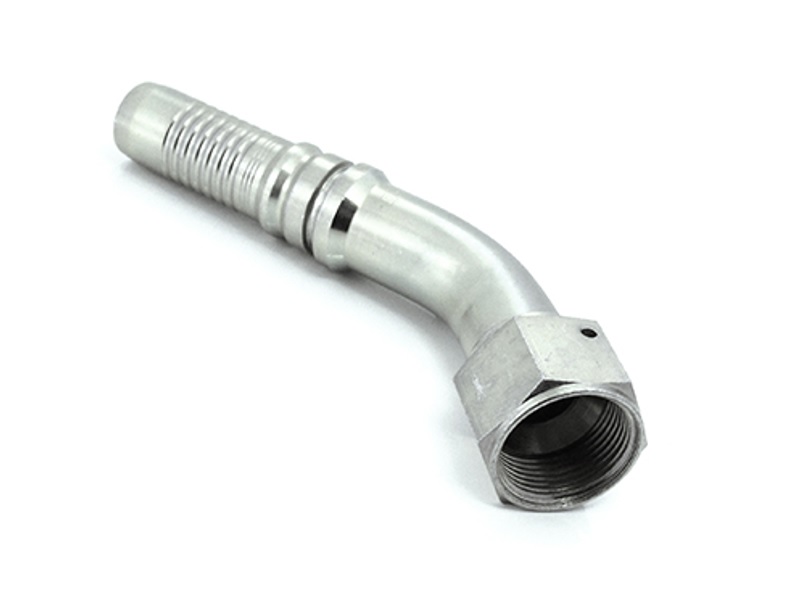

JIC union nut, 37° cone face, 45° elbow Interlock

SELECT VARIANT
Partnumber Description Thread Hose size Model code
SH7016-16T Insert 1 sh,1.5/16x12 JIC fe DK251516JSH4 2-piece 1.5/16-12 JIC 1 " 1000H16-16
SH7016-24T Insert 1.1/2, 1.7/8x12 JIC fem DK401708JSH4 2-piece 1.7/8-12 JIC 1.1/2 " 1000H-24-24
SH7016-32T Insert 2 , 2.1/2x12 JIC FEMA DK502012JSH4 2-piece 2.1/2-12 JIC 2 " 1000H-32-32
Angle
45

Brand Name
I.M.M Hydraulics

Hose coupling type
For separate ferrule

Material
Steel

Surface treatment
Electro-galvanized / White chromatized
