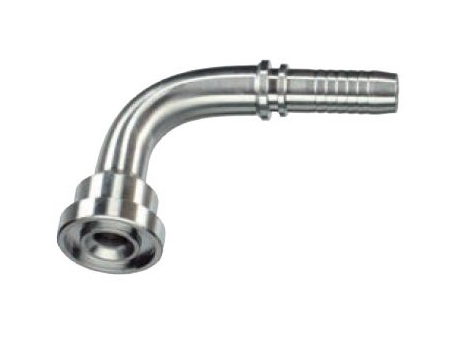

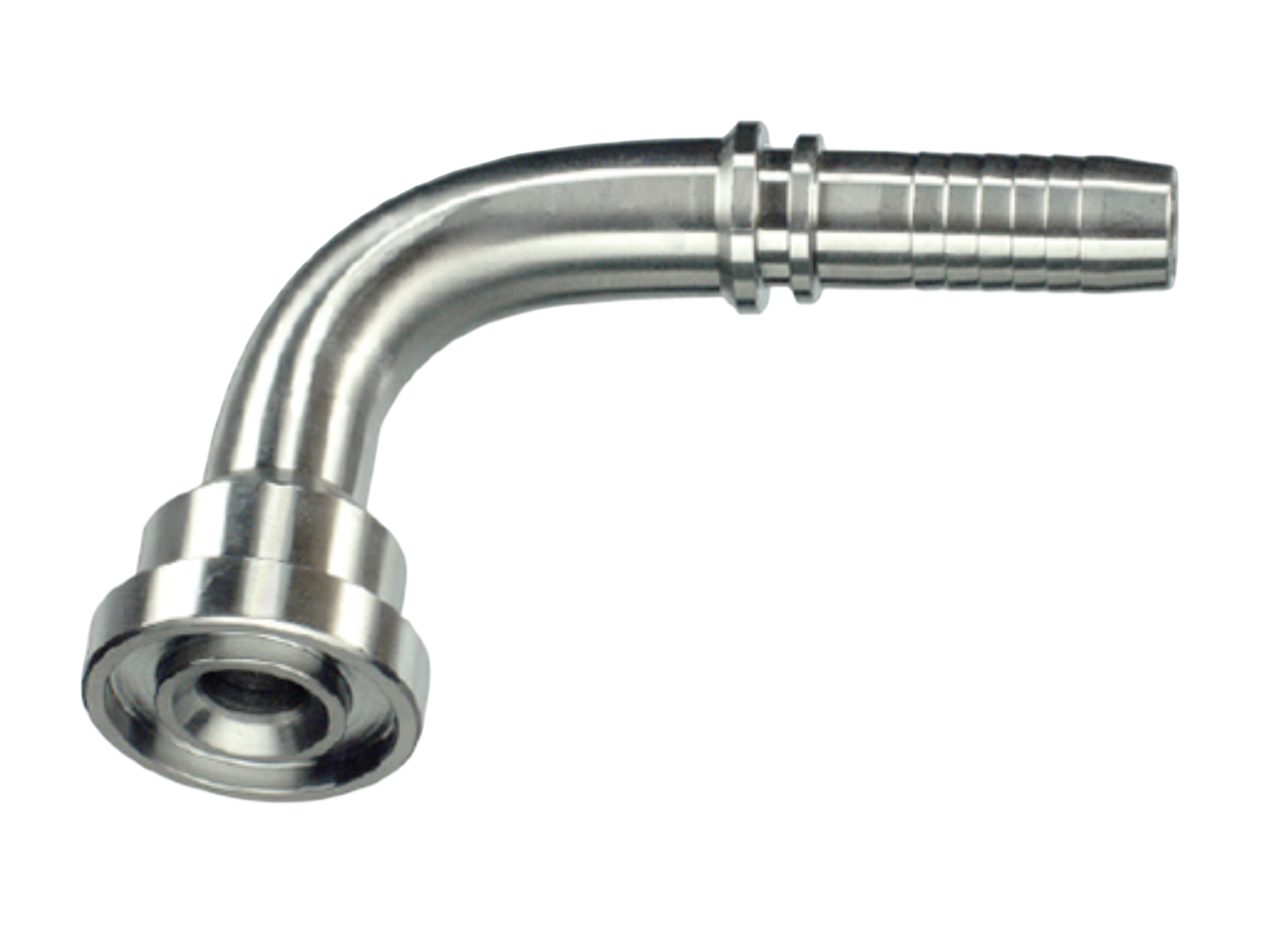

Flange insert SAE 3000 PSI - 90° stainless

Letkuliitin SAE 3000 psi 90°

Letkuliitin SAE 3000 psi 90°

Hose fitting SAE 3000Psi 90°

Letkuliitin SAE 3000 psi 90°

SAE 3000Psi hose fitting 90°

SELECT VARIANT

Partnumber	Description	Flange	Hose size	Angle	Hose coupling type
HPS4790-16	Letkuliitin SAE 3000 psi 90°	1 "	1 "	90 °	For separate ferrule
HPS4790-20	Letkuliitin SAE 3000 psi 90°	1.1/4 "	1.1/4 "	90 °	For separate ferrule
HPS4790-20-16	Hose fitting SAE 3000Psi 90°	1.1/4 "	1 "	90 °	For separate ferrule
HPS4790-24	Letkuliitin SAE 3000 psi 90°	1.1/2 "	1.1/2 "	90 °	For separate ferrule
HPS4790-32	SAE 3000Psi hose fitting 90°	2 "	2 "	90 °	For separate ferrule

Angle

Brand Name

PH Industrie-Hydraulik

Flange SAE/DIN

3000 PSI

Hose coupling type

For separate ferrule

Material

Acid-resistant steel

Material quality

1.4571 / AISI316Ti

Pressure max.

210

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61
