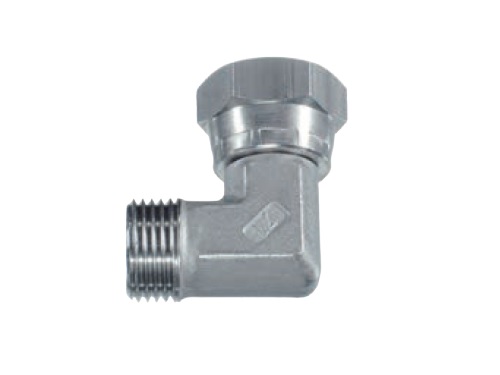

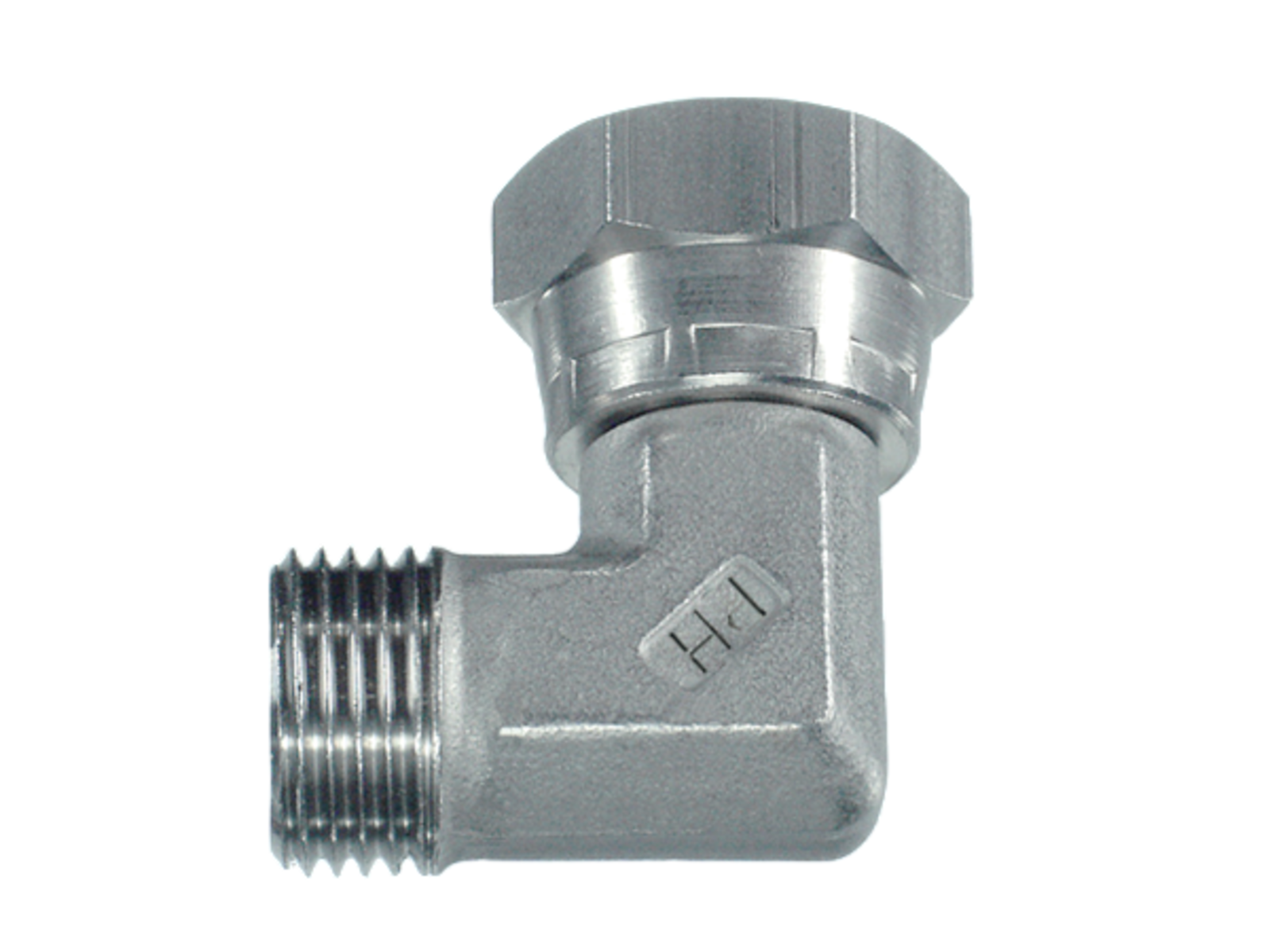

Elbow adapter 90° BSP male x BSP union nut stainless

Elbow adapter 90° BSP male x BSP union nut stainless

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread inner Pressure max. Thread outer
H2047R-04 Kulmanippa 90° sk-uk G 1/4 BSP 400 bar G 1/4 BSP
H2047R-06 Kulmanippa 90° sk-uk G 3/8 BSP 400 bar G 3/8 BSP
H2047R-08 Kulmanippa 90° sk-uk G 1/2 BSP 400 bar G 1/2 BSP
H2047R-12 Elbow 90° female - male G 3/4 BSP 400 bar G 3/4 BSP
H2047R-16 Kulmanippa 90° sk-uk G 1 BSP 400 bar G 1 BSP
H2047R-24 Kulmanippa 90° sk-uk G 1.1/2 BSP 200 bar G 1.1/2 BSP
Angle
90
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Temperature max.
+400
Temperature min.
-60
