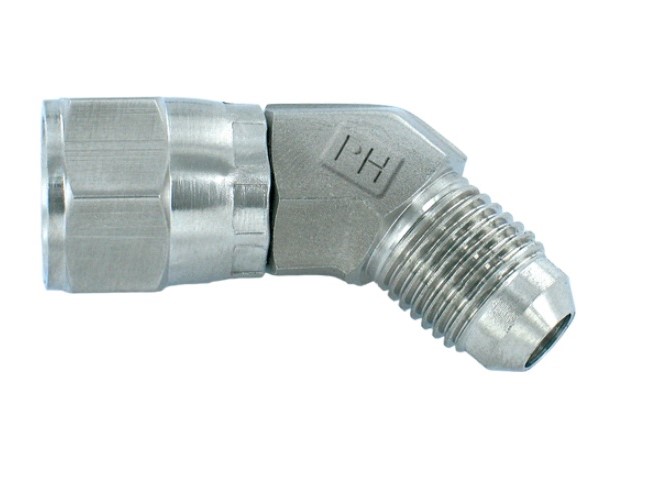

Elbow adapter 45° JIC male x JIC union nut stainless

Elbow adapter 45° JIC male x JIC union nut stainless

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Thread inner Pressure max.
HS690-06 JIC Swivel Elbow Adaptor 45° male-female 10 mm 9/16-18 JIC 9/16-18 JIC 350 bar
HS690-08 JIC elbow 45° female-male 12 mm 3/4-16 JIC 3/4-16 JIC 350 bar
Angle
45
Brand Name
Hydraspecma
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Pressure max.
350
Temperature max.
+400
Temperature min.
-60
