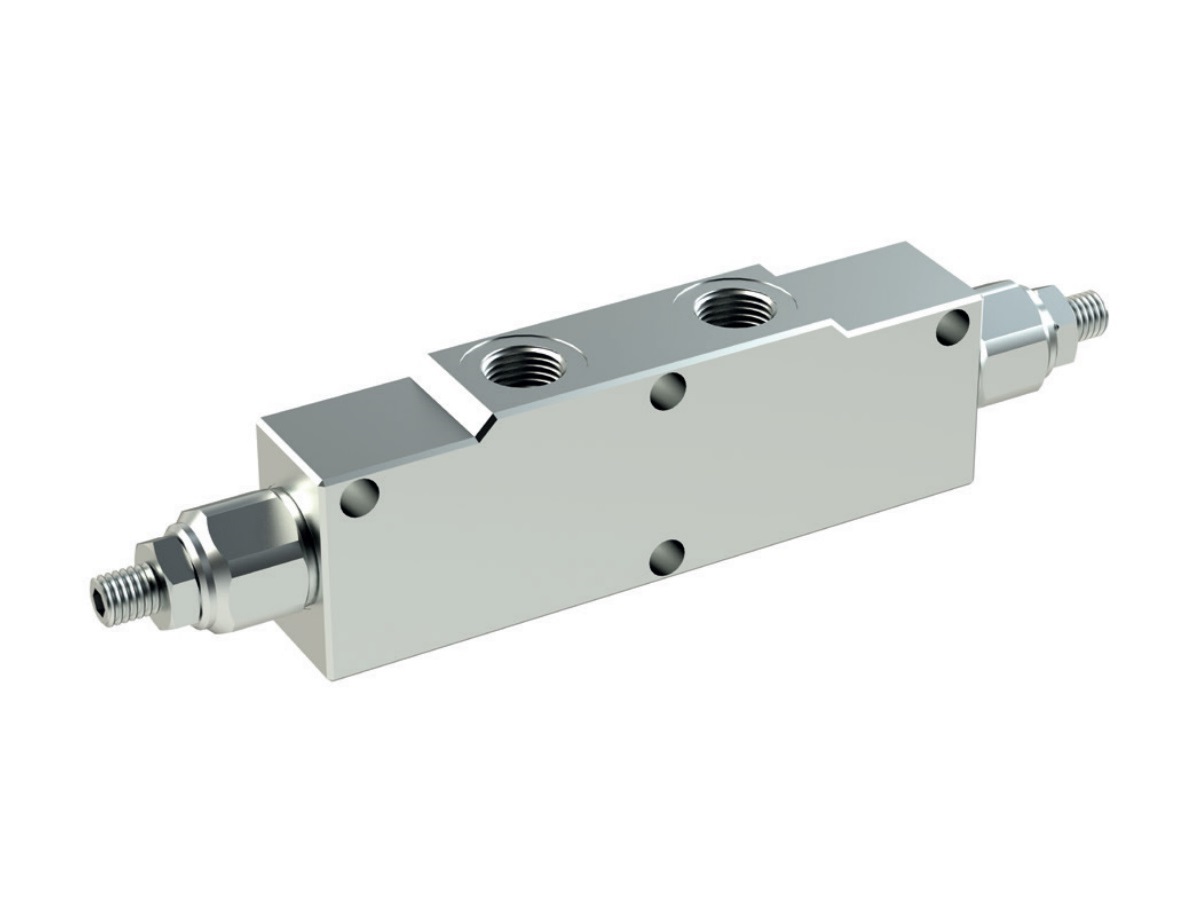

Overcenter valves double Oleoweb VBCD

SELECT VARIANT

Partnumber	Description	Flowrate nominal LMin	Thread	Pilot ratio	Pressure max.
VBCD1202	Kaksoiskuormanlaskuventtiili	60 lpm	G 1/2 BSP	1:4,25	350 bar
VBCD1402	Kaksoiskuormanlaskuventtiili	30 lpm	G 1/4 BSP	1:4,25	350 bar
VBCD3802	3/8 double acting load cont	40 lpm	G 3/8 BSP	1:4,25	350 bar

29 mm

Brand Name

Hydraspecma

Contamination level max.

19/17/14 - ISO 4406

150 mm

51 mm

48 mm

Material

Steel

Oil temperature max.

+80

Oil temperature min.

-20

Oil viscocity recommended

15 - 250

8 mm

Pilot ratio

1:4,25

Pressure max.

350

Pressure setting max.

350

Pressure setting min.

134 mm

5,5 mm

8,2 mm

Sealing material

NBR

Surface treatment

Zinc-plated

Temperature ambient max.

+50

Temperature ambient min.

-20

Type

Double
