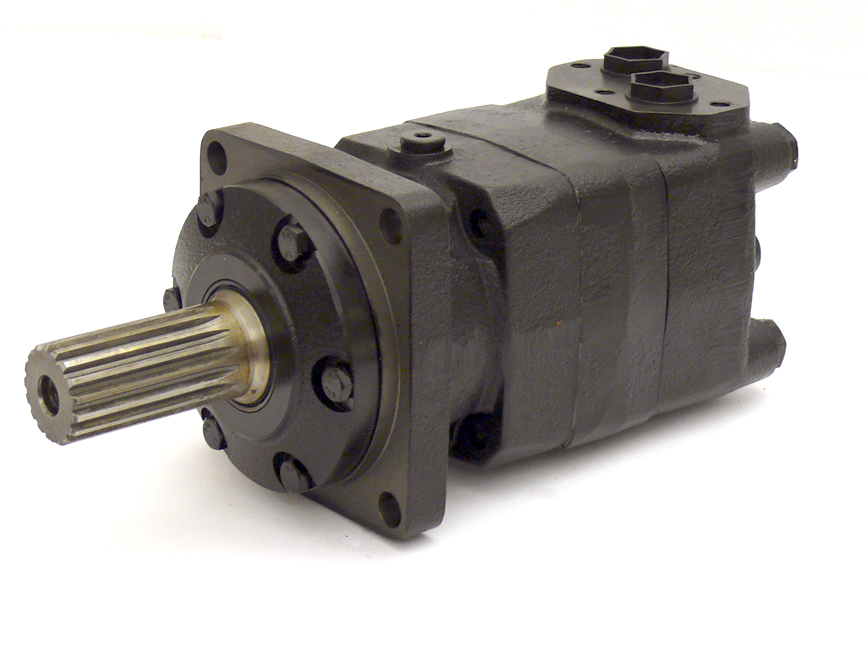

Orbital motors M+S MV series

SELECT VARIANT

Partnumber	Description	Displacement	Shaft diameter	Shaft type	Continuous power max.
MV315C	MOTOR M+S 315cc CYL50 ISO	314.5 cm3	50 mm	Cylindrical	42.5 kW
MV315SH	MOTOR*****M+S 315cc SPL ANS	314.5 cm3	53,98 mm	Spline	42.5 kW
MV400C	Hydraulimoottori 400,9cm³/r	400.9 cm3	50 mm	Cylindrical	53.5 kW
MV400SH	MOTOR*****M+S 400CC SPL ANS	400.9 cm3	53,98 mm	Spline	53.5 kW
MV500C	MOTOR M+S 500cc CYL50 ISO	499.6 cm3	50 mm	Cylindrical	53.5 kW
MV500SH	MOTOR*****M+S 500cc SPL ANS	499.6 cm3	53,98 mm	Spline	53.5 kW
MV630CHD	Hydraulimoottori 630cm³/r	629.1 cm3	50 mm	Cylindrical	48 kW
MV630KLLHD	Motor M+S 630cc kon 1:10	629.1 cm3	60 mm	Tapered	48 kW
MV800SH	MOTOR*****M+S 800cc SPL ANS	801.8 cm3	53,98 mm	Spline	42.5 kW
MVS315	Motor M+S 315cc spl ansb92.1	314.5 cm3		Spline	42.5 kW
MVS315P	Motor M+S 315cc spl ansb92.1	314.5 cm3		Spline	42.5 kW
MVS400	Motor M+S 400cc spl ansb92.1	400.9 cm3		Spline	53.5 kW
MVS500	Motor M+S 500cc spl ansb92.1	499.6 cm3		Spline	53.5 kW
MVS630	MVS630	629.1 cm3		Spline	48 kW
MVS630P	Motor M+S 630cc Short, Spl	629.1 cm3		Spline	48 kW
MVS800	Motor M+S 800cc Short, Spl	801.8 cm3		Spline	42.5 kW
MVS800P	Motor M+S 800cc Short, Spl	800 cm3		Spline	42.5 kW
MVW315CUP	Hydraulimoottori 314,5cm³/r	314.5 cm3	50 mm	Cylindrical	42.5 kW
MVW500C	Hydraulimoottori 499,6cm³/r	499.6 cm3	50 mm	Cylindrical	53.5 kW
MVW500CO	MVW500CO	499.6 cm3	50 mm	Cylindrical	67 kW
MVW630C-HD	Hydraulimoottori 629,1cm³/r	629.1 cm3	50 mm	Cylindrical	48 kW
MVW630KLL/2	MVW630KLL/2	629.1 cm3	60 mm	Tapered	48 kW
MVW800C	Hydraulimoottori 801,8cm³/r	801.8 cm3	50 mm	Cylindrical	42.5 kW
MVW800KLLHD	MVW800KLLHD	801.8 cm3	60 mm	Tapered	67 kW

Brand Name

Hydraspecma

Contamination level max.

-/20/16 - ISO 4406

Drainport

G 1/4

Filtration degree

Number of mounting holes

Oil viscocity recommended

20 - 75

Port position

Side

Temperature max.

+82

Temperature min.

-40

Working ports

G 1
