Kaksoiskuormanlaskuventtiili
It is preferable to place the valve as close to the actuator as possible, preferably directly on the actuator with fixed connections. This provides maximum protection in case of hose breaks and the like
Partnumber:
VBCD3/4DE
Package size:
3 pcs
Min. order quantity is:
1 pcs
Brand Name
OM Oleodinamica Marchesini

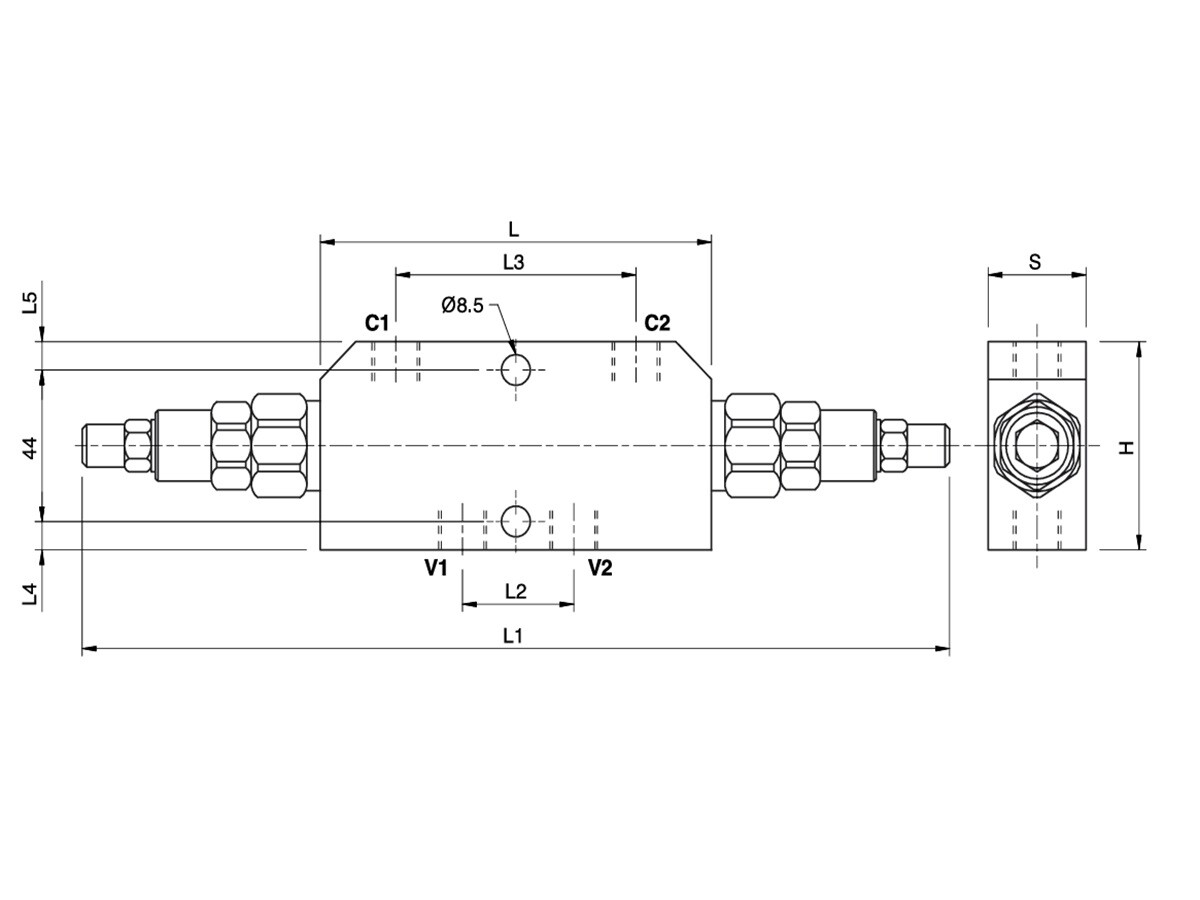

C1
G 3/4 BSP
C2
G 3/4 BSP
Flowrate nominal LMin
105 lpm
H
80 mm
L
152 mm
L1
296 mm
L2
58 mm
L3
106 mm
L4
15 mm
L5
21 mm
Material
Zinc-Plated Steel
Model code
VBCD 3/4” DE
Pilot ratio
1:5,5
Pressure max.
350 bar
S
35 mm
Sealing material
NBR
Surface treatment
Zinc-plated
Thread
G 3/4 BSP
V1
G 3/4 BSP
V2
G 3/4 BSP
Package size
3 pcs
Barcode
410356
Gross weight
3,016 Kg
Net weight
3,016 Kg
Country of origin
ita
It is preferable to place the valve as close to the actuator as possible, preferably directly on the actuator with fixed connections. This provides maximum protection in case of hose breaks and the like
