Perusliitin uk-uk
-

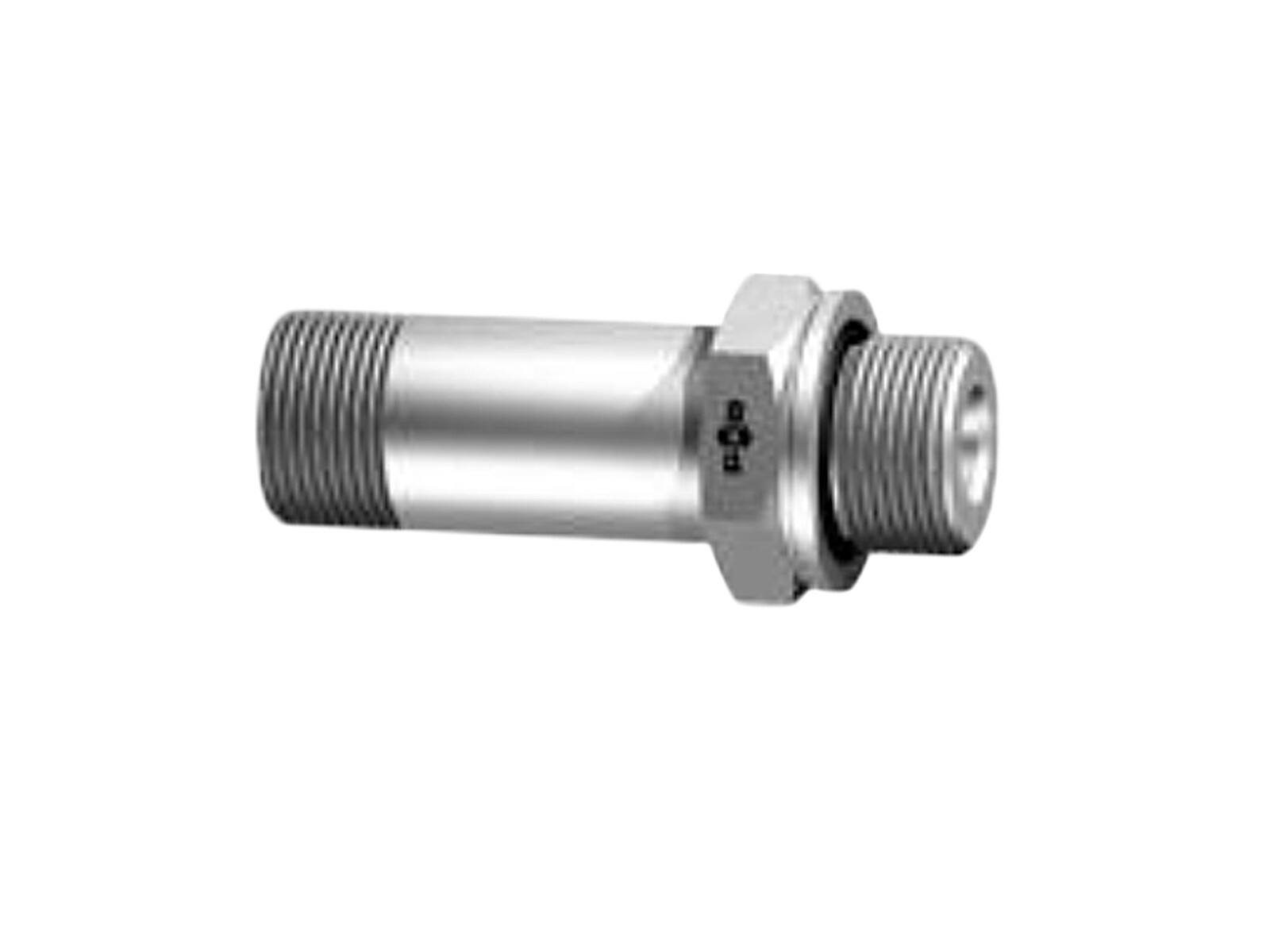

ORFS straight extra long external threaded basic connector
- External thread (BSPP)
- With O-ring NBR Shore 85 +5/0 and support ring
- ISO 1179 - threaded ports
- Operating temperature -20° to +120°
Partnumber:
SLOG-19-12
Package size:
50 pcs
Min. order quantity is:
1 pcs

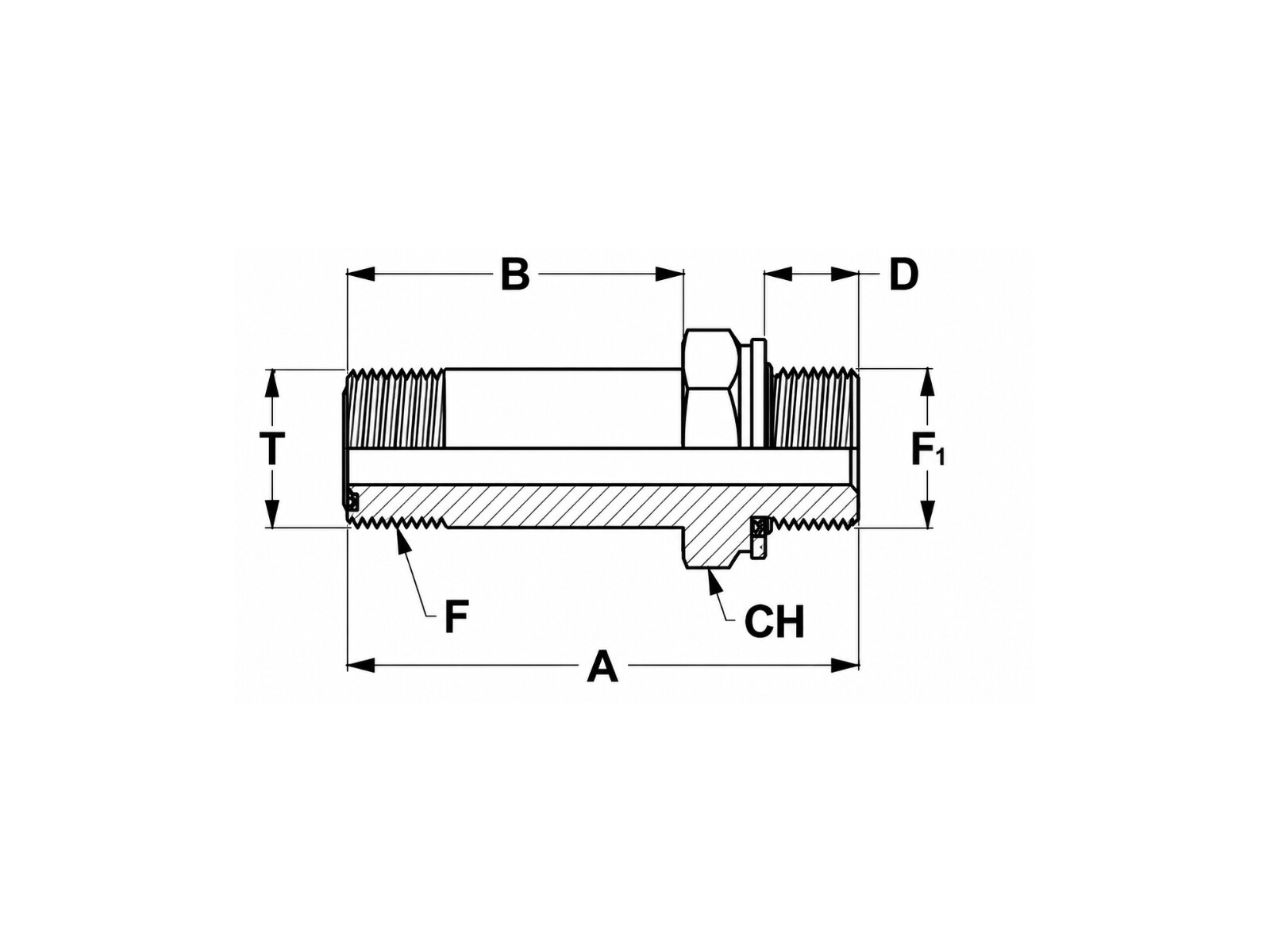

A
93 mm
Angle
0 °
B
63 mm
Brand Name
FOR
CH
36 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
14 mm
Material
Steel
Model code
A504023/2026
Pressure max.
280 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.3/16-12 ORFS
Thread outer
G 3/4 BSP
Package size
50 pcs
Barcode
431768
Gross weight
0,20 Kg
Net weight
0,20 Kg
Country of origin
IT
-
ORFS straight extra long external threaded basic connector
- External thread (BSPP)
- With O-ring NBR Shore 85 +5/0 and support ring
- ISO 1179 - threaded ports
- Operating temperature -20° to +120°
Note: Opening 3D files requires a program that supports the file format
