Perusliitin uk-uk erikoispitkä
-
ORFS straight extra long external threaded basic connector
- External thread (BSPP)
- With O-ring NBR Shore 85 +5/0 and support ring
- ISO 1179 - threaded ports
- Operating temperature -20° to +120°
Partnumber:
SLOG-09-04
Package size:
20 kpl
Min. order quantity is:
1 kpl
Angle
0 °

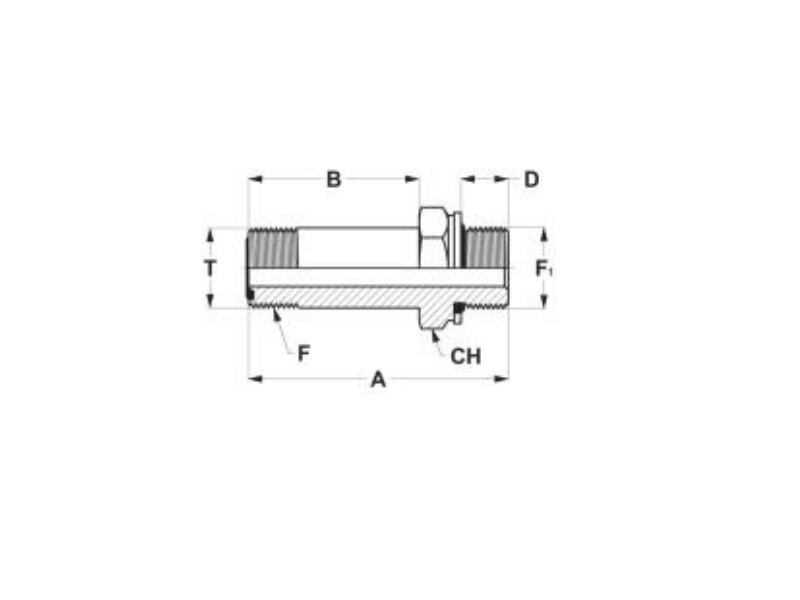

B
33,5 mm
Brand Name
FOR
CH
19 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
10 mm
Material
Steel
Model code
A504023/0613
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
9/16-18 ORFS
Thread outer
G 1/4 BSP
Package size
20 kpl
Barcode
415017
Gross weight
0,10 Kg
Net weight
0,10 Kg
Country of origin
ita
-
ORFS straight extra long external threaded basic connector
- External thread (BSPP)
- With O-ring NBR Shore 85 +5/0 and support ring
- ISO 1179 - threaded ports
- Operating temperature -20° to +120°
