Perusliitin uk-uk ED-tiiv.
-
JIC 37° straight extra long basic connector
- External thread (BSPP)
- With ED seal, NBR Shore 85 +5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Partnumber:
S230-04-06-EP-FOR
Package size:
10 kpl
Min. order quantity is:
1 kpl

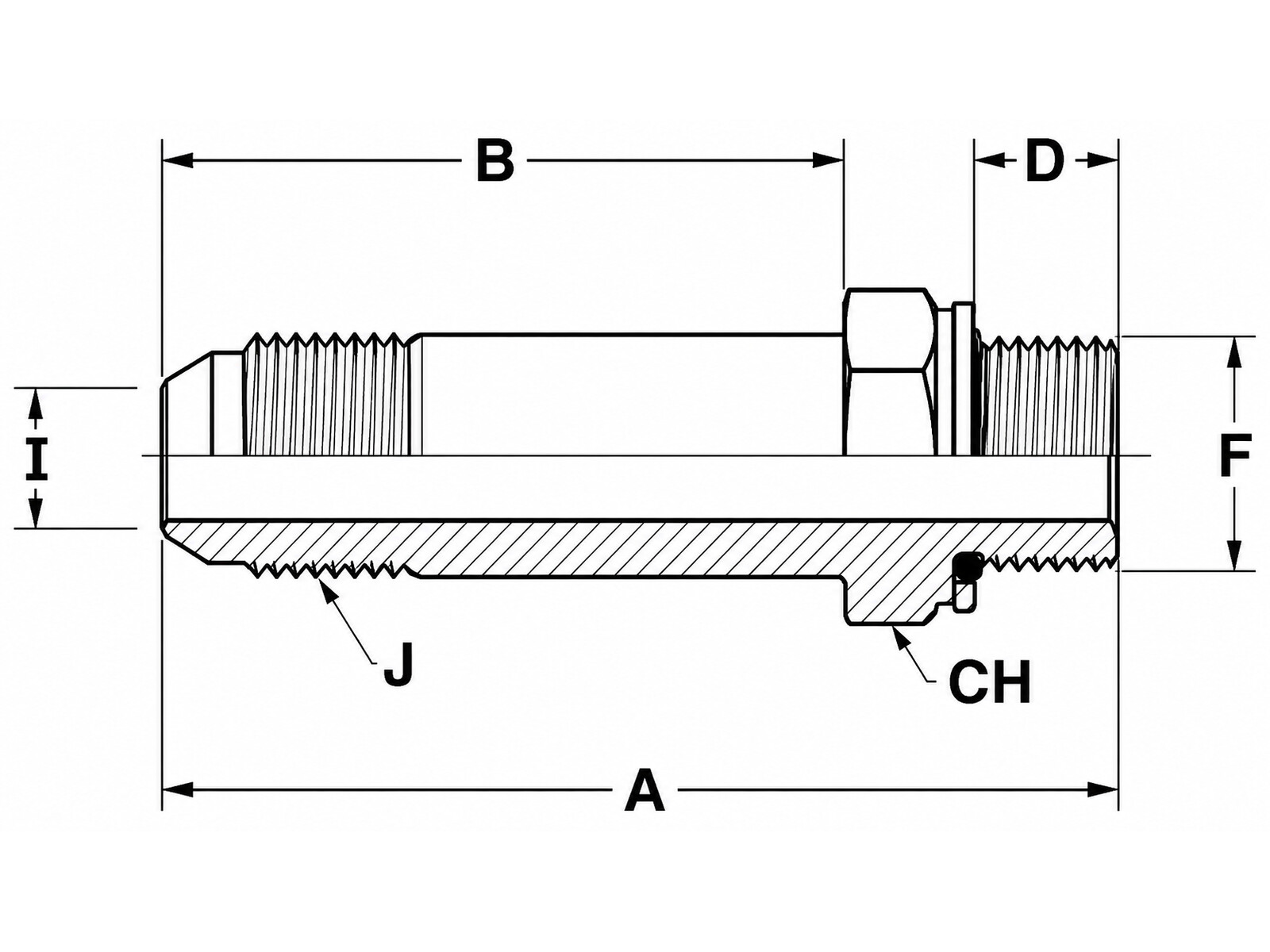

A
59,5 mm
Angle
0 °
B
39 mm
Brand Name
FOR
CH
19 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
10 mm
Diameter pipe
10 mm
F
G 1/4 BSP
J
9/16-18 JIC
Material
Steel
Model code
A104025/1013
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
10 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
9/16-18 JIC
Thread outer
G 1/4 BSP
Package size
10 kpl
Barcode
431968
Gross weight
0,04 Kg
Net weight
0,04 Kg
Country of origin
IT
-
JIC 37° straight extra long basic connector
- External thread (BSPP)
- With ED seal, NBR Shore 85 +5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Note: Opening 3D files requires a program that supports the file format
