Y-fitting RL23
3x6mm putkille
Partnumber:
RL230606
Package size:
1 kpl
Min. order quantity is:
1 kpl
Area of use
Compressed air, Vacuum
Brand Name
Metal Work
Diameter pipe
6 mm
Diameter pipe 1
6 mm

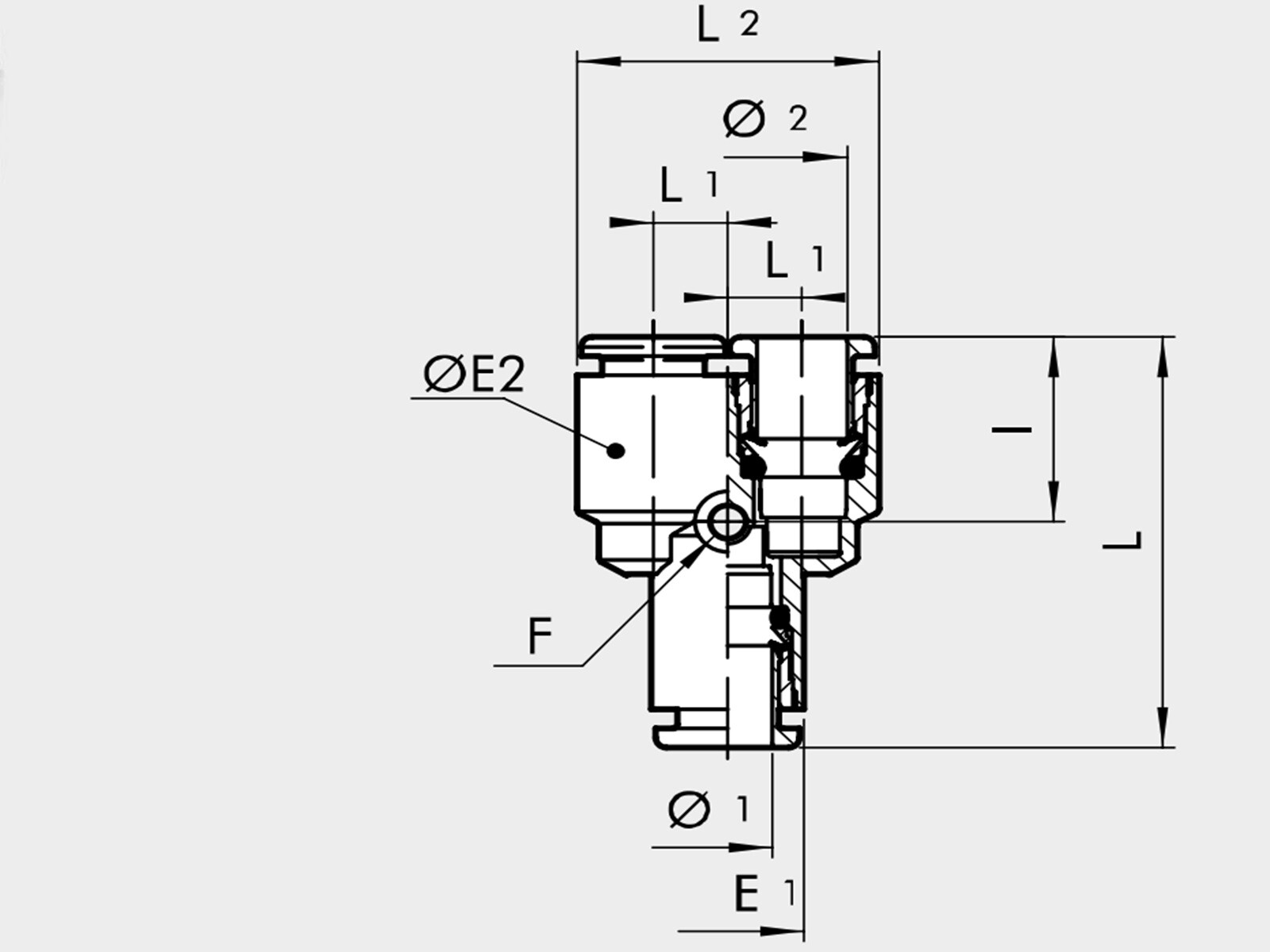

Dimension F
3.3 mm
E1
11,3 mm
F
3,3 mm
I
15 mm
L
35,5 mm
L1
5,8 mm
L2
22,8 mm
Material
Technopolymer
Model code
2023003
Pressure max.
12 bar
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR
Temperature max.
+60 °C
Temperature min.
-20 °C
Vacuum max.
0.99 bar
Ø1
6 mm
Ø2
6 mm
ØE
11,3 mm
Package size
1 kpl
Barcode
480485
Gross weight
Kg
Net weight
0,005 Kg
Country of origin
ita
Intrastat code
11111111
3x6mm putkille
