Q45-F1S(N)4x103/A1/D41/12V-F3D

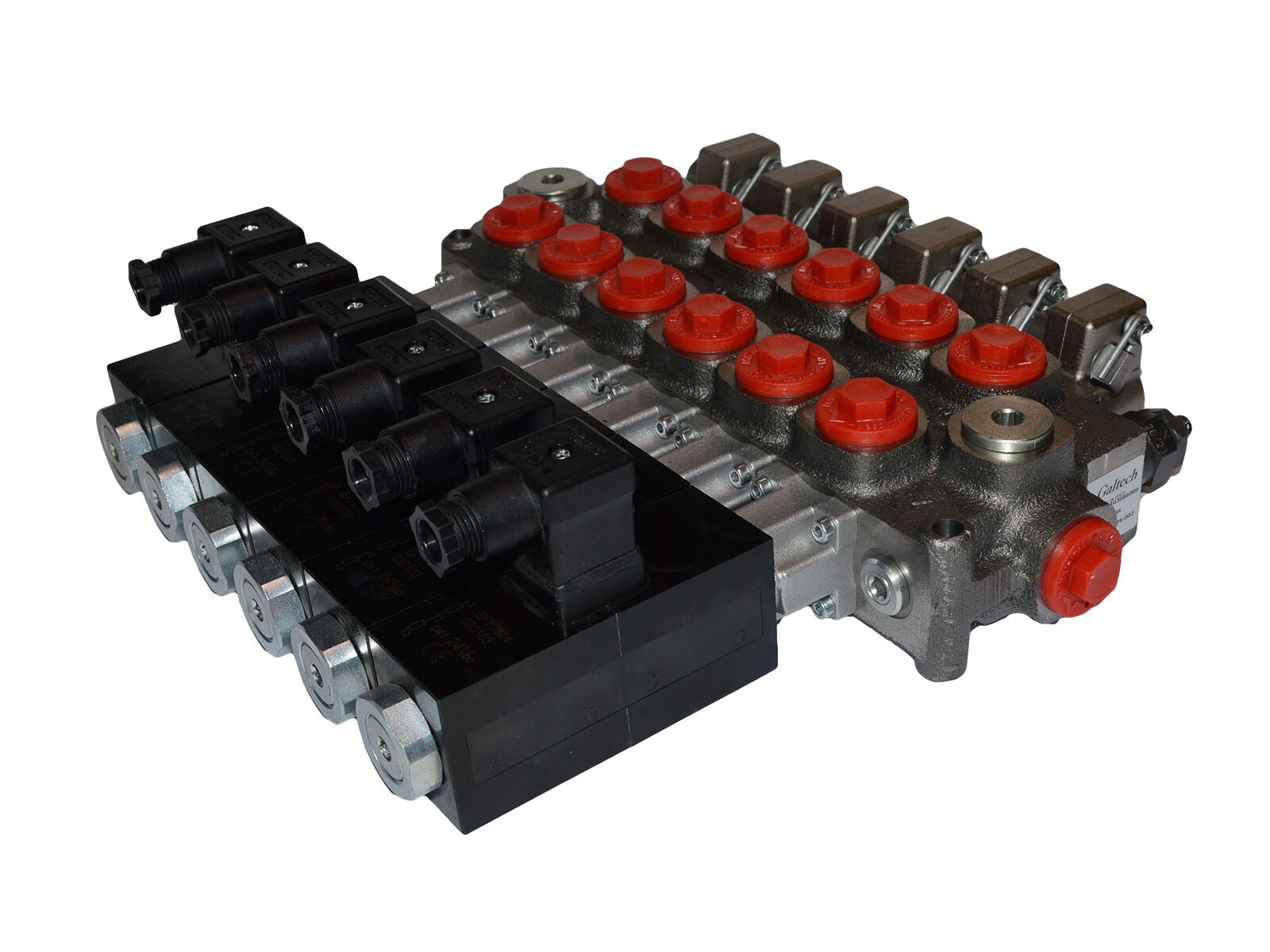

6-spools Q45 monoblock directional control valve with pressure relief valve. Manual/electric actuated.
Arm function: 6 x 2-way, ports A and B closed in centre position, spring return.
Free flow in centre position P -> T.
Partnumber:
Q45/6X03D-24V
Package size:
1 kpl
Min. order quantity is:
1 kpl
Activation
Manual, Solenoid
Brand Name
Walvoil
Contamination level max.
16/14/12 - ISO 4406
Current type
DC
Dimension F
297 mm
E
266 mm
Flow rate nominal LMin
50 lpm
Lever
Exclusive
Material
Cast iron
Number of sections
6
Oil viscocity recommended
10 - 400 cSt
Port P
G 1/2 BSP
Port P1
G 1/2 BSP
Port T
G 1/2 BSP
Port T1
G 1/2 BSP
Pressure T max.
25 bar
Pressure carry-over
No
Pressure max.
300 bar
Pressure relief valve
Yes
Pressure setting max.
200 bar
Pressure setting min.
100 bar
Temperature max.
+80 °C
Temperature min.
-30 °C
Voltage
24 V
Working ports
G 1/2 BSP
Package size
1 kpl
Barcode
432901
Gross weight
12,38 Kg
Net weight
12,38 Kg
Country of origin
ITA
Intrastat code
84812010
6-spools Q45 monoblock directional control valve with pressure relief valve. Manual/electric actuated.
Arm function: 6 x 2-way, ports A and B closed in centre position, spring return.
Free flow in centre position P -> T.
