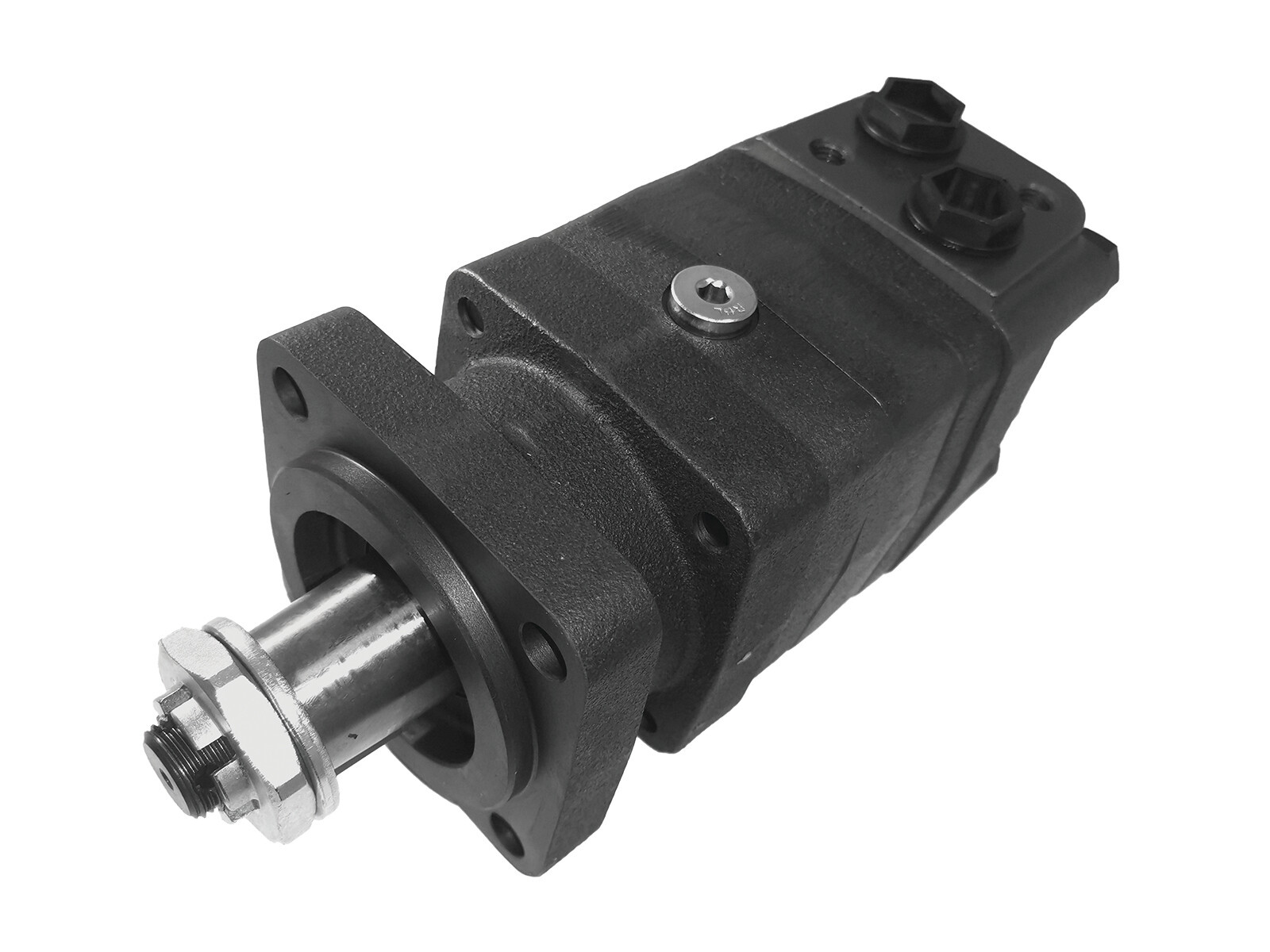

MSQ160K/4
Partnumber:
MSQ160K/4
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
16.5 kW
Continuous rotation max.
470 rpm
Displacement
159.7 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
106.4 mm
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
210 bar
Recess
82,5 mm
Shaft Seal Type
Standard shaft seal
Shaft cone
1:10
Shaft diameter
35 mm
Shaft keyway
6,0 mm
Shaft type
Tapered
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
490 Nm
Working ports
G 1/2 BSP
Package size
1 kpl
Barcode
401721
Gross weight
11,20 Kg
Net weight
11,20 Kg
Country of origin
BG
