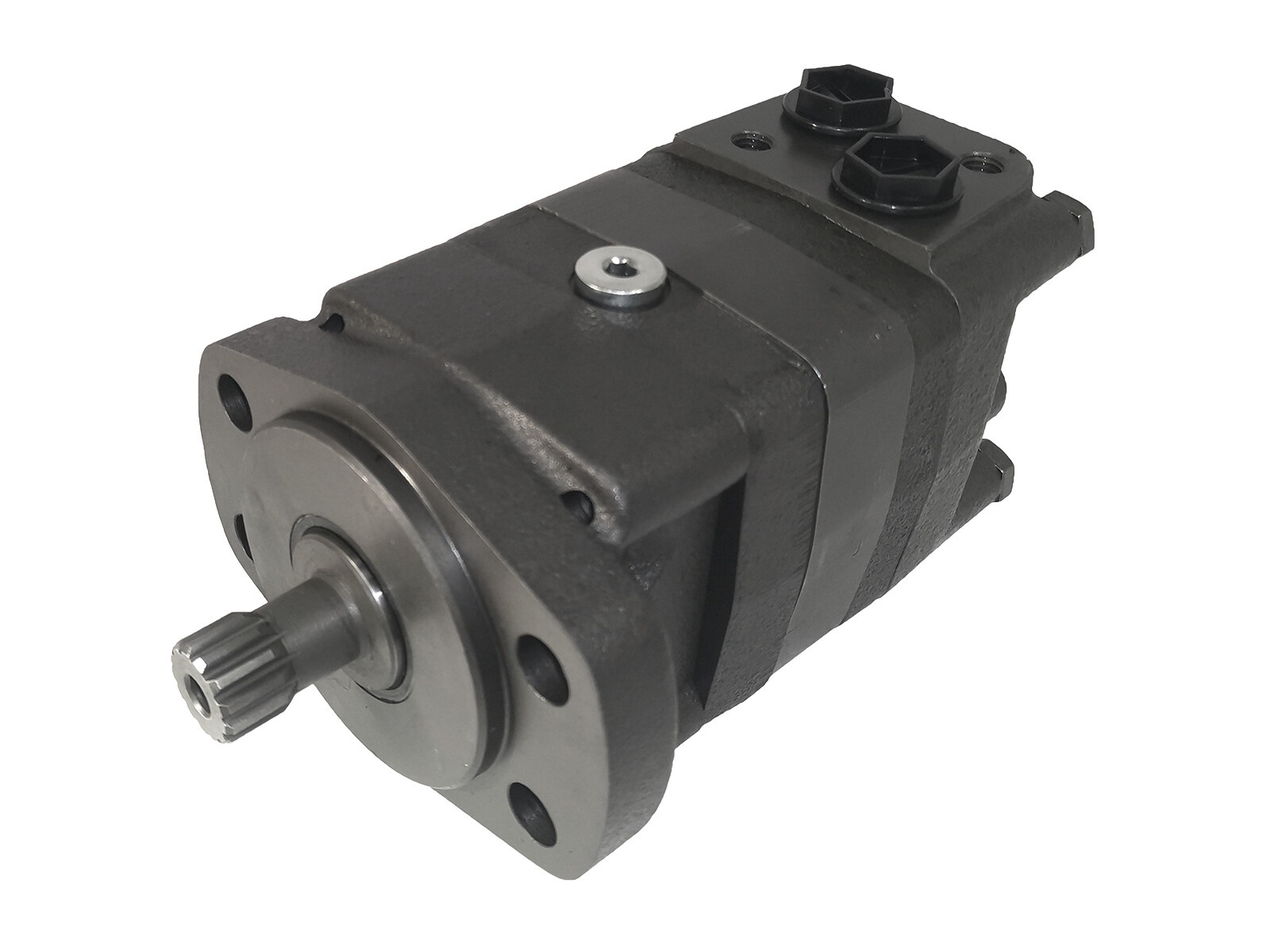

MSF160SA/4
Partnumber:
MSF160SA/4
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
16.5 kW
Continuous rotation max.
470 rpm
Displacement
159.7 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
106.4 mm
Mounting flange
SAE-A4 Magneto
Number of mounting holes
4
Number of outer grooves
13
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
210 bar
Recess
82,5 mm
Shaft diameter
22 mm
Shaft spline
13T 16/32 SAE-B
Shaft type
Spline
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
490 Nm
Working ports
G 1/2 BSP
Package size
1 kpl
Barcode
401702
Gross weight
10,80 Kg
Net weight
10,80 Kg
Country of origin
BG
