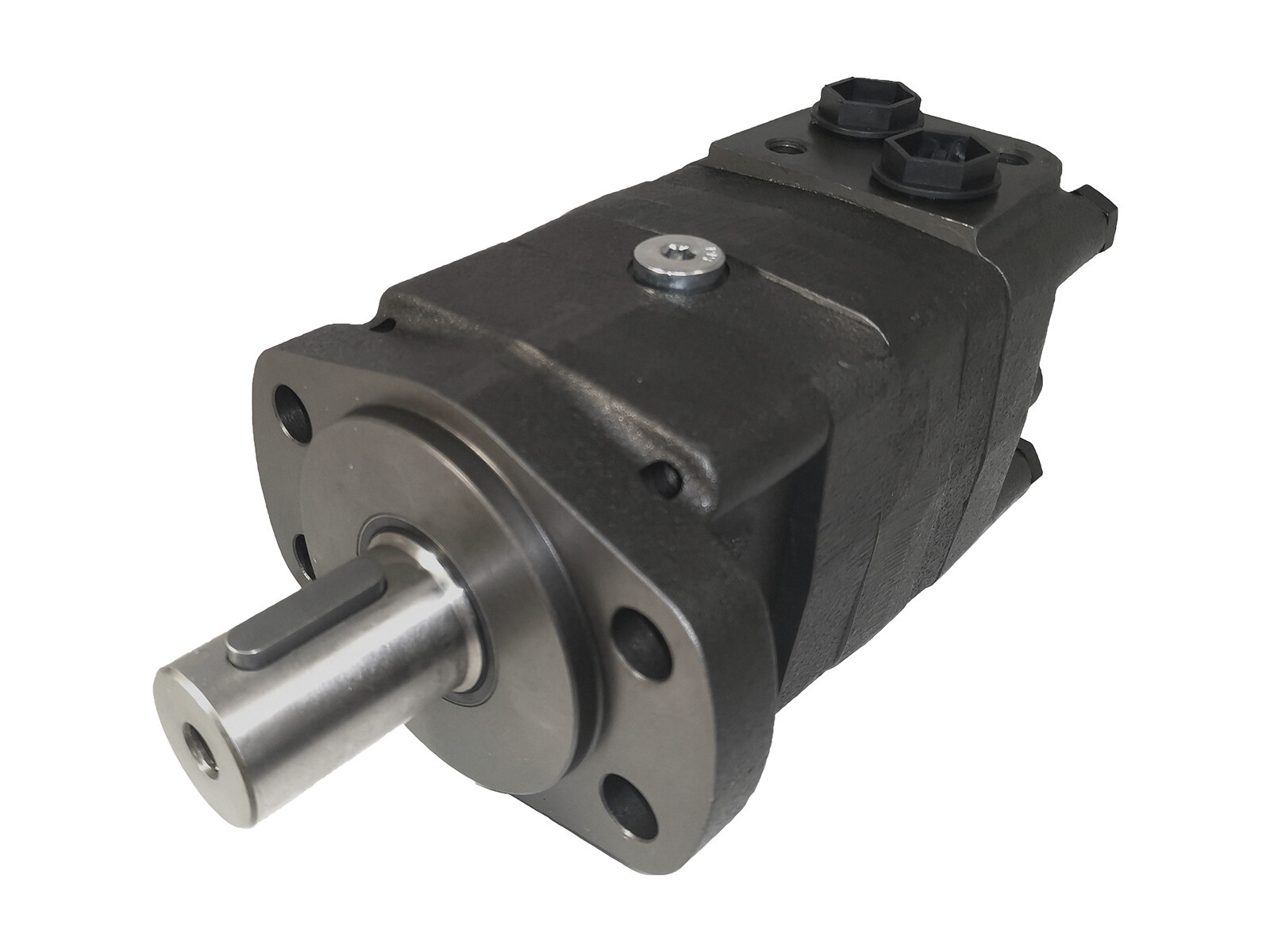

MSF160CO/4
MSF160CO/4
Osanumero:
MSF160CO/4
Pakkauskoko:
1 pcs
Pienin tilausmäärä on:
1 pcs
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
16.5 kW
Continuous rotation max.
470 rpm
Displacement
159.7 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
106.4 mm
Mounting flange
SAE-A4 Magneto
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
210 bar
Recess
82,5 mm
Shaft diameter
31,75 mm
Shaft keyway
7,95 mm
Shaft type
Cylindrical
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
490 Nm
Working ports
G 1/2 BSP
Package size
1 pcs
Barcode
401701
Gross weight
10,80 Kg
Net weight
10,80 Kg
Country of origin
BG
MSF160CO/4
