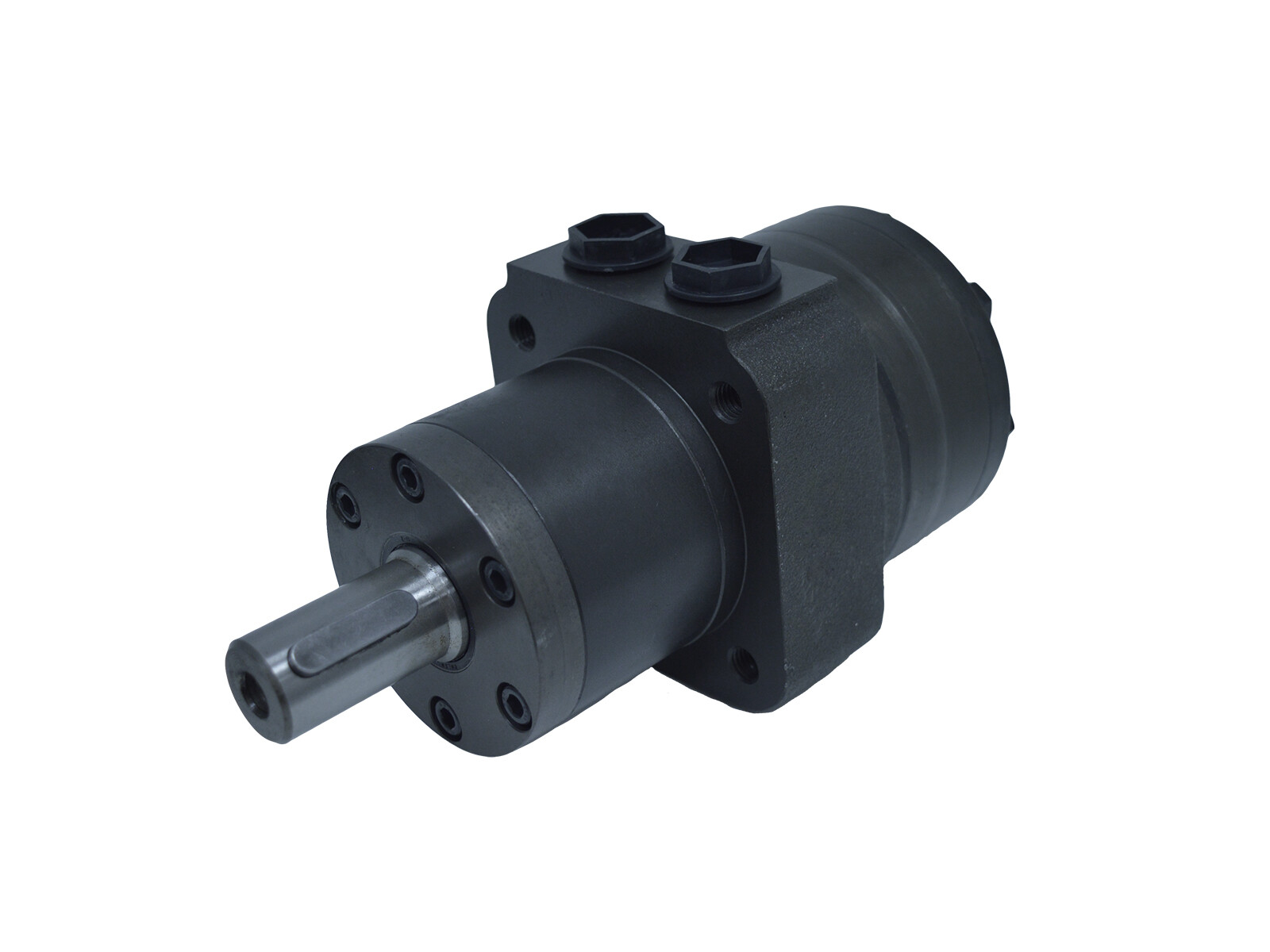

Hydraulimootori 199,8 cm³/r
32mm napamoottori
Partnumber:
MRWN200CD
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Hydraspecma
Comment
Needle bearing
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
9 kW
Continuous rotation max.
300 rpm
Displacement
199.8 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Intermittent Effect Max.
12 kW
Intermittent Rotation speed Max.
375 rpm
Intermittent Torque Max.
460 Nm
Mounting flange
Wheel mount
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure continous max.
175 bar
Pressure drop continuous max.
140 bar
Pressure intermittent max.
200 bar
Shaft diameter
25 mm
Shaft keyway
8,0 mm
Shaft torque rating
340 Nm
Shaft type
Cylindrical
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
385 Nm
Working ports
G 1/2 BSP
Package size
1 kpl
Barcode
401582
Gross weight
8,90 Kg
Net weight
8,90 Kg
Country of origin
BG
32mm napamoottori
