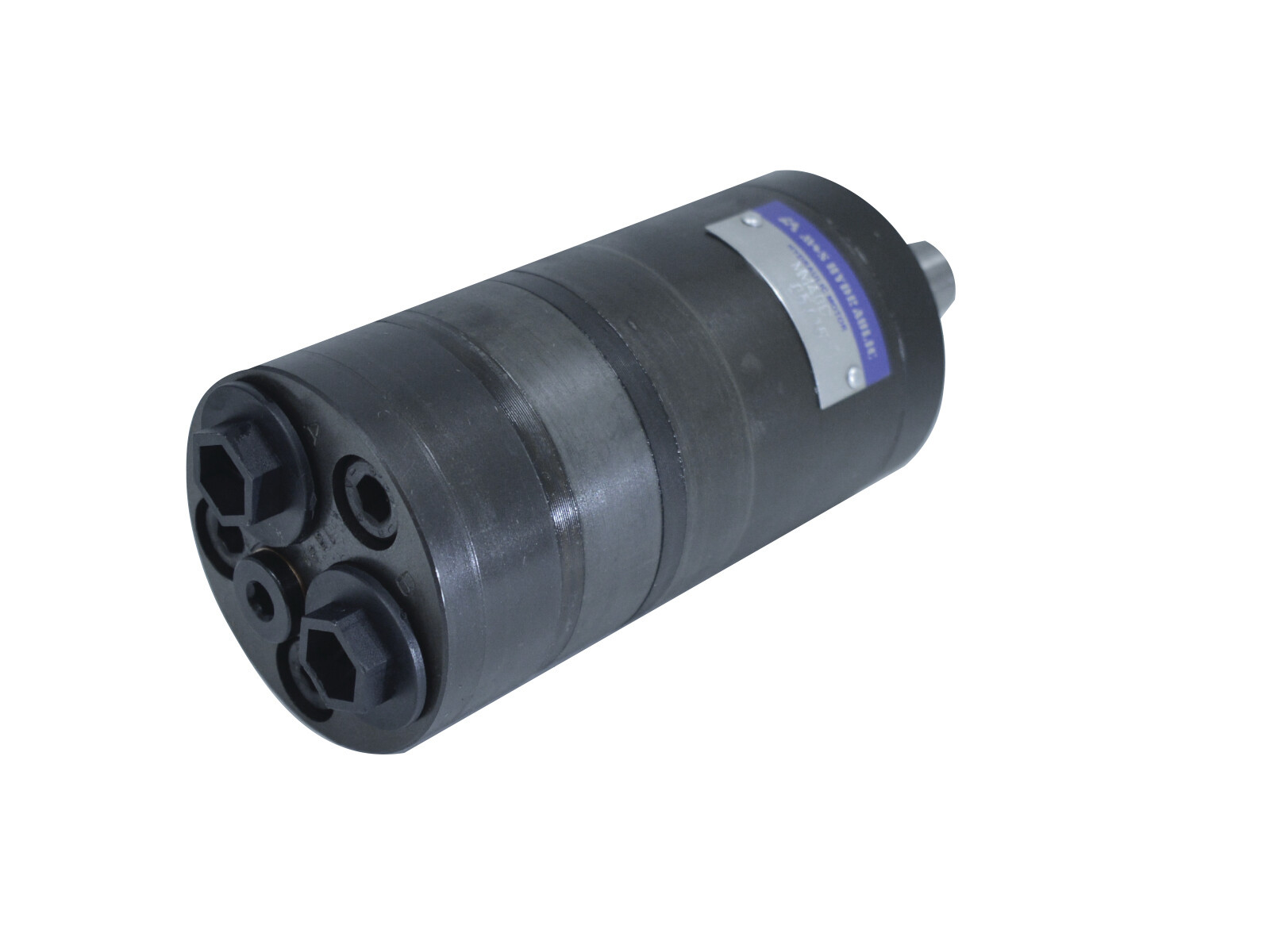

MOTOR*****M+S 32cc SPLINES
MOTOR*****M+S 32cc SPLINES
Partnumber:
MM32SH
Package size:
1 pcs
Min. order quantity is:
1 pcs
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
2.4 kW
Continuous rotation max.
630 rpm
Displacement
31.6 cm3
Drainport
G 1/8 BSP
Filtration degree
25 my
Holes circle
45 mm
Number of mounting holes
3
Number of outer grooves
9
Oil viscocity recommended
20 - 75 cSt
Port position
Rear
Pressure drop continuous max.
100 bar
Shaft diameter
16,5 mm
Shaft spline
9T 16/32 SAE-A
Shaft type
Spline
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
40 Nm
Working ports
G 3/8 BSP
Package size
1 pcs
Barcode
401300
Gross weight
Kg
Net weight
Kg
Country of origin
bgr
