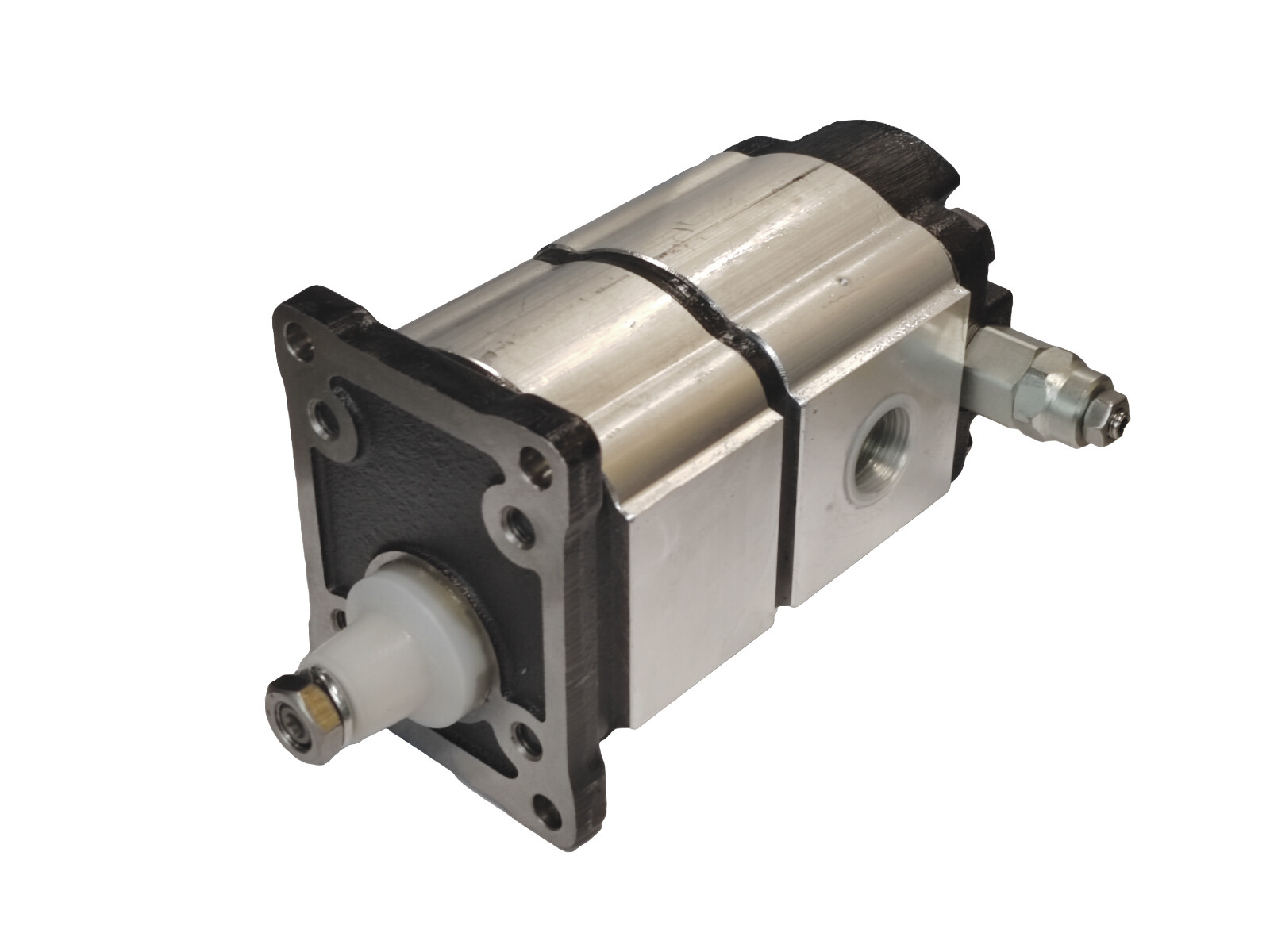

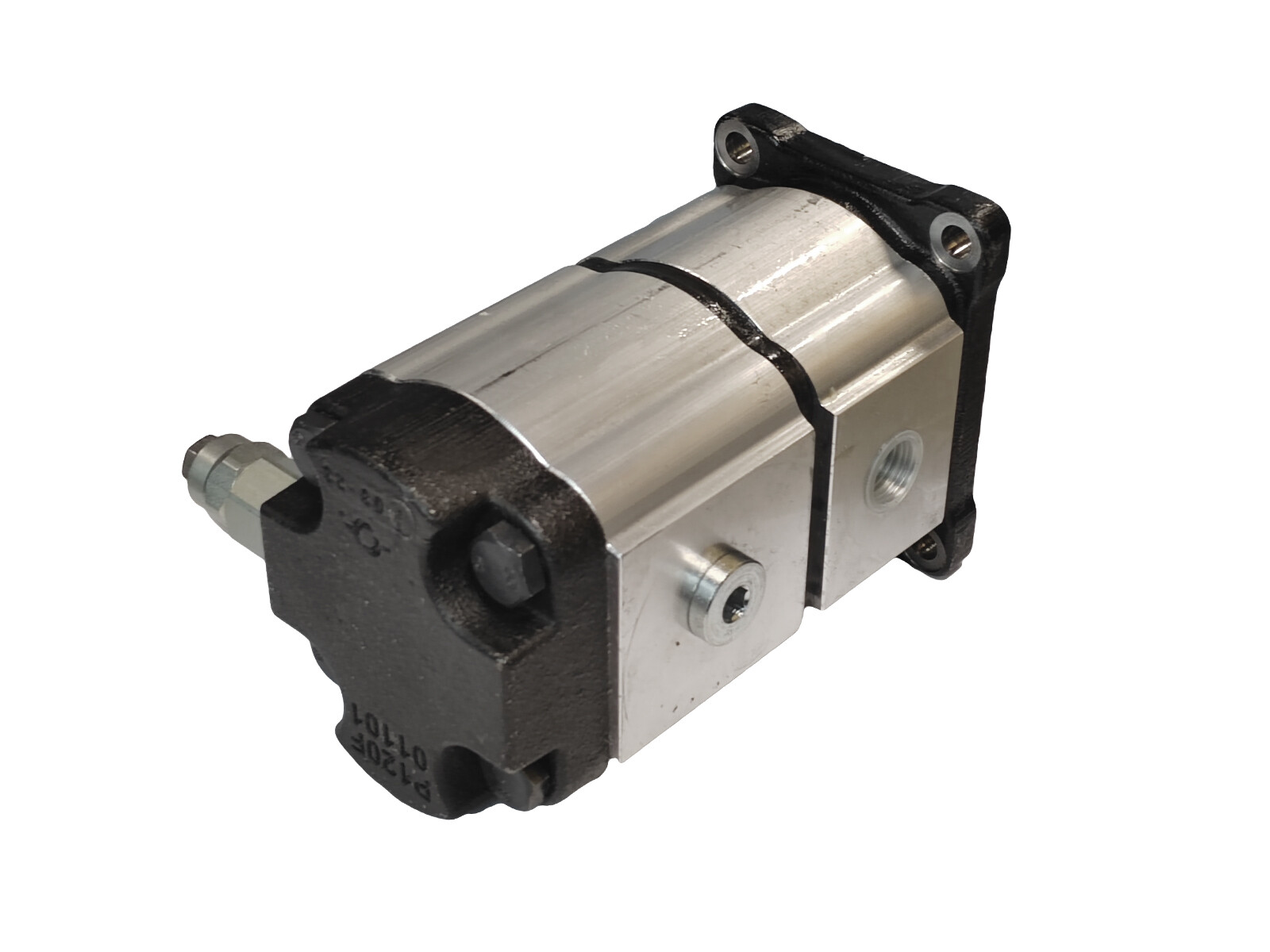

Gear pump tandem 6.5+16.9 cm³/r
1:8 kartio, 71.5x96.2 mm, Portit R3/4”-R1/2”
Partnumber:
HYPA2C06E20T2A216-1NSV100
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Hydreco
Contamination level max.
19/17/14 - ISO 4406
Displacement P1
6.5 cm3
Displacement P2
16.9 cm3
Inlet
G 3/4 BSP
Material
Aluminium
Model code
HY-PA2-C06-E20T2-BX/2S-1NS+A2-16-B3/XS-1N-SV100
Oil viscocity recommended
10 - 750 cSt
Outlet
G 1/2 BSP
Pressure continous P1 max.
260 bar
Pressure continous P2 max.
260 bar
Pressure continous max.
260 bar
Pressure peak max.
310 bar
Rotation direction
Right (CW)
Rotational speed max.
3200 rpm
Rotational speed min.
600 rpm
Shaft type
Tapered
Temperature max.
+80 °C
Package size
1 kpl
Barcode
481839
Gross weight
Kg
Net weight
7,20 Kg
Country of origin
ita
Intrastat code
84136031
1:8 kartio, 71.5x96.2 mm, Portit R3/4”-R1/2”
