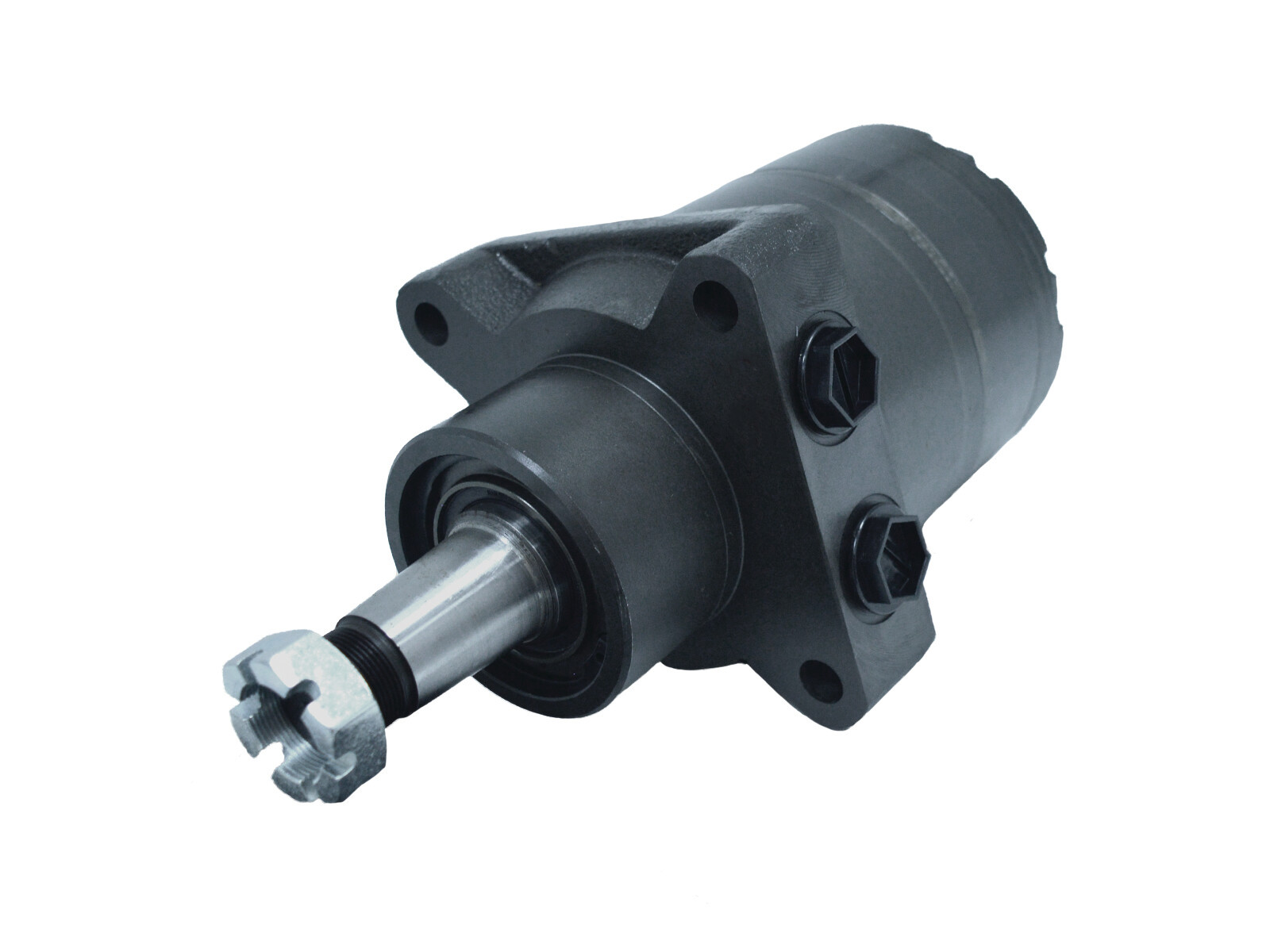

HWS200M2
HWS200M2
Osanumero:
HWS200M2
Pakkauskoko:
1 pcs
Pienin tilausmäärä on:
1 pcs
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
18.6 kW
Continuous rotation max.
373 rpm
Displacement
201.3 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
147.6 mm
Mounting flange
Wheel mount
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
205 bar
Recess
82,5 mm
Shaft diameter
32 mm
Shaft keyway
10,0 mm
Shaft type
Cylindrical
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
550 Nm
Working ports
G 1/2 BSP
Package size
1 pcs
Barcode
398746
Gross weight
14,80 Kg
Net weight
14,80 Kg
Country of origin
BG
HWS200M2
