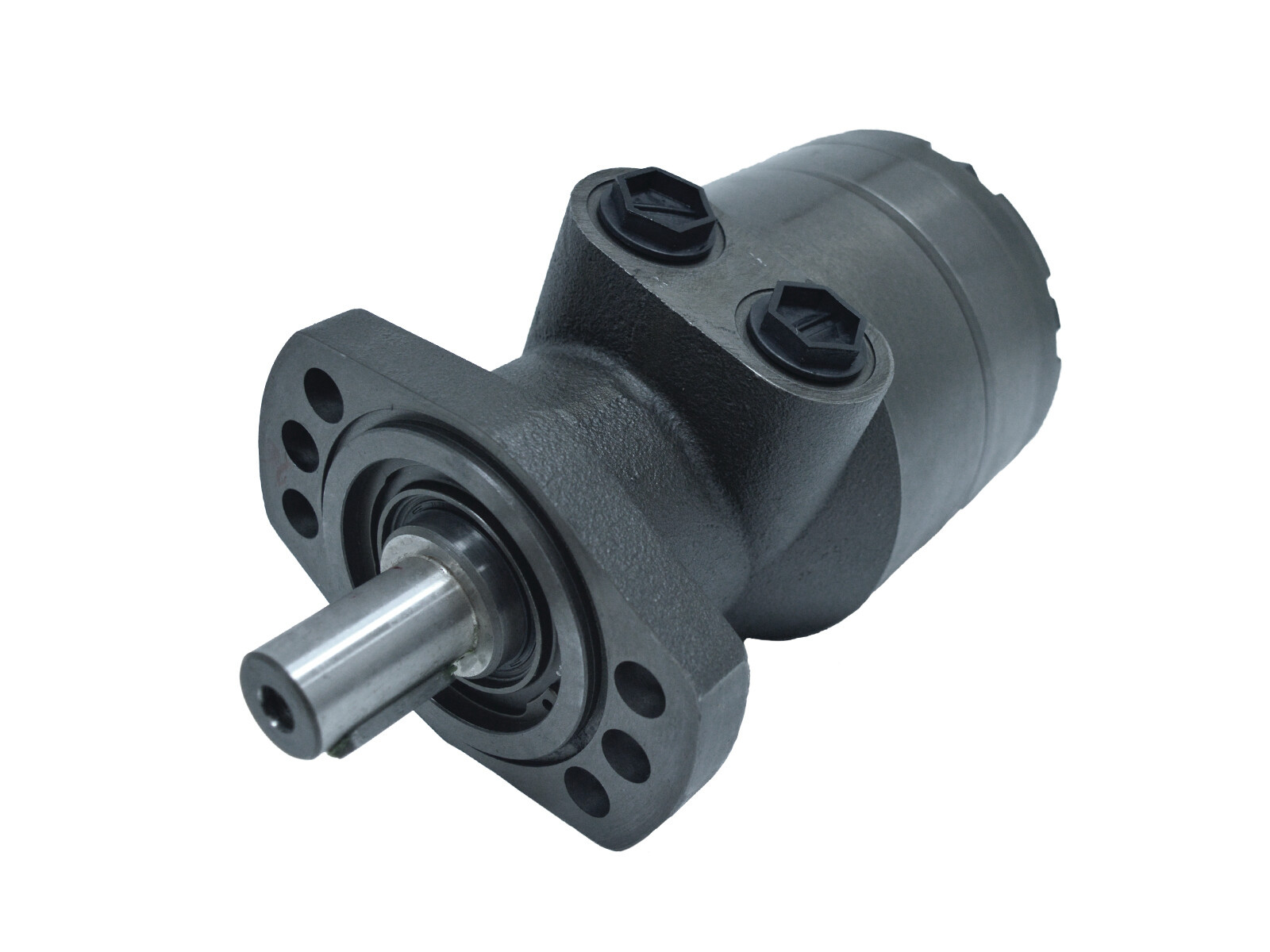

HWF200CO2
Maxj 373r/min 550Nm 18.6kW 25mm Lieriö
Partnumber:
HWF200CO2
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
18.6 kW
Continuous rotation max.
373 rpm
Displacement
201.3 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
106.4 mm
Mounting flange
SAE-A6 Magneto
Number of mounting holes
6
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
205 bar
Recess
82,5 mm
Shaft diameter
25 mm
Shaft keyway
8,0 mm
Shaft type
Cylindrical
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
550 Nm
Working ports
G 1/2 BSP
Package size
1 kpl
Barcode
398711
Gross weight
13,60 Kg
Net weight
13,60 Kg
Country of origin
BG
Maxj 373r/min 550Nm 18.6kW 25mm Lieriö
