Letkuliitin 90° sk
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
HPS285-10-08
Package size:
1 kpl
Min. order quantity is:
1 kpl

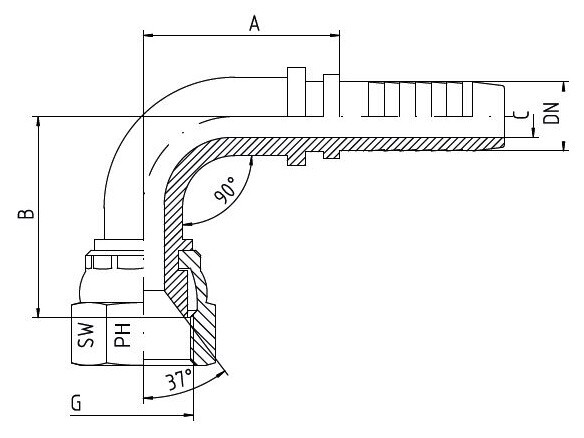

A
43 mm
Angle
90 °
B
46,5 mm
Brand Name
PH Industrie-Hydraulik
C
9,5 mm
DN
12 mm
Dimension B
46.5 mm
Dimension C
9.5 mm
G
7/8-14 UNF
Hose coupling type
For separate ferrule
Hose size
1/2 "
Key size
27 mm
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
DKJ-7/8“-90°-DN 12
SW
27 mm
Surface treatment
Uncoated
Temperature max.
+400 °C
Temperature min.
-60 °C
Thread
7/8-14 JIC
Thread inner
7/8-14 JIC
Package size
1 kpl
Barcode
398165
Gross weight
0,13 Kg
Net weight
0,13 Kg
Country of origin
deu
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
